Richelieu WEBKIT1246079 BASKI LED Cabinet Drawer Starter GuideRichelieu WEBKIT1246079 BASKI LED Drawer Cabinet - Starter Guide offers a sleek, modern lighting solution designed specifically for kitchen base units. This innovative LED profile integrates a built-in sensor, allowing it to automatically switch on and off as cabinet doors open and close, enhancing convenience and energy efficiency. Available in two stylish finishes-aluminum and black-this light fixture suits various design aesthetics. The BASKI is offered in fixed lengths of 18", 24", 30", 36", and 48", providing flexibility for different cabinet sizes. Installation is straightforward, fitting frames with thicknesses of 5/8", 23/32", and 3/4" (16mm, 18mm, 19mm), and it comes equipped with a pre-wired 78" power cable. For extended reach, optional extension cables are available in lengths of 20", 40", and 78". This LED light operates at a color temperature of 4000 K and boasts a luminous efficiency of 85 lm/W, making it perfect for task and functional lighting. With a CRI of 80, colors remain vibrant and true. Designed for indoor cabinet use, the BASKI meets UL and ETL standards, ensuring quality and safety. For optimal performance, it is recommended to maintain a distance of no more than 24 ft from the light to the power supply.

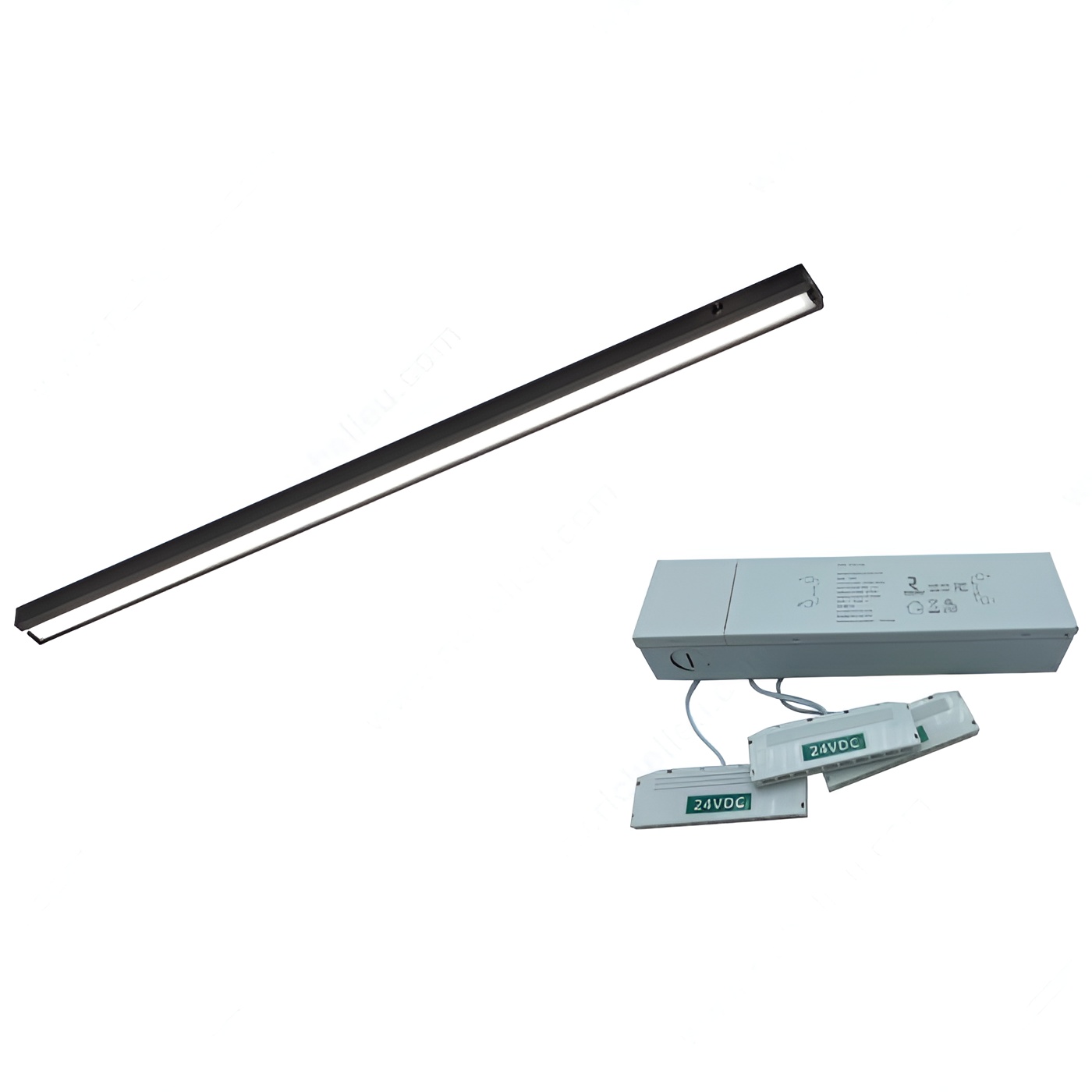

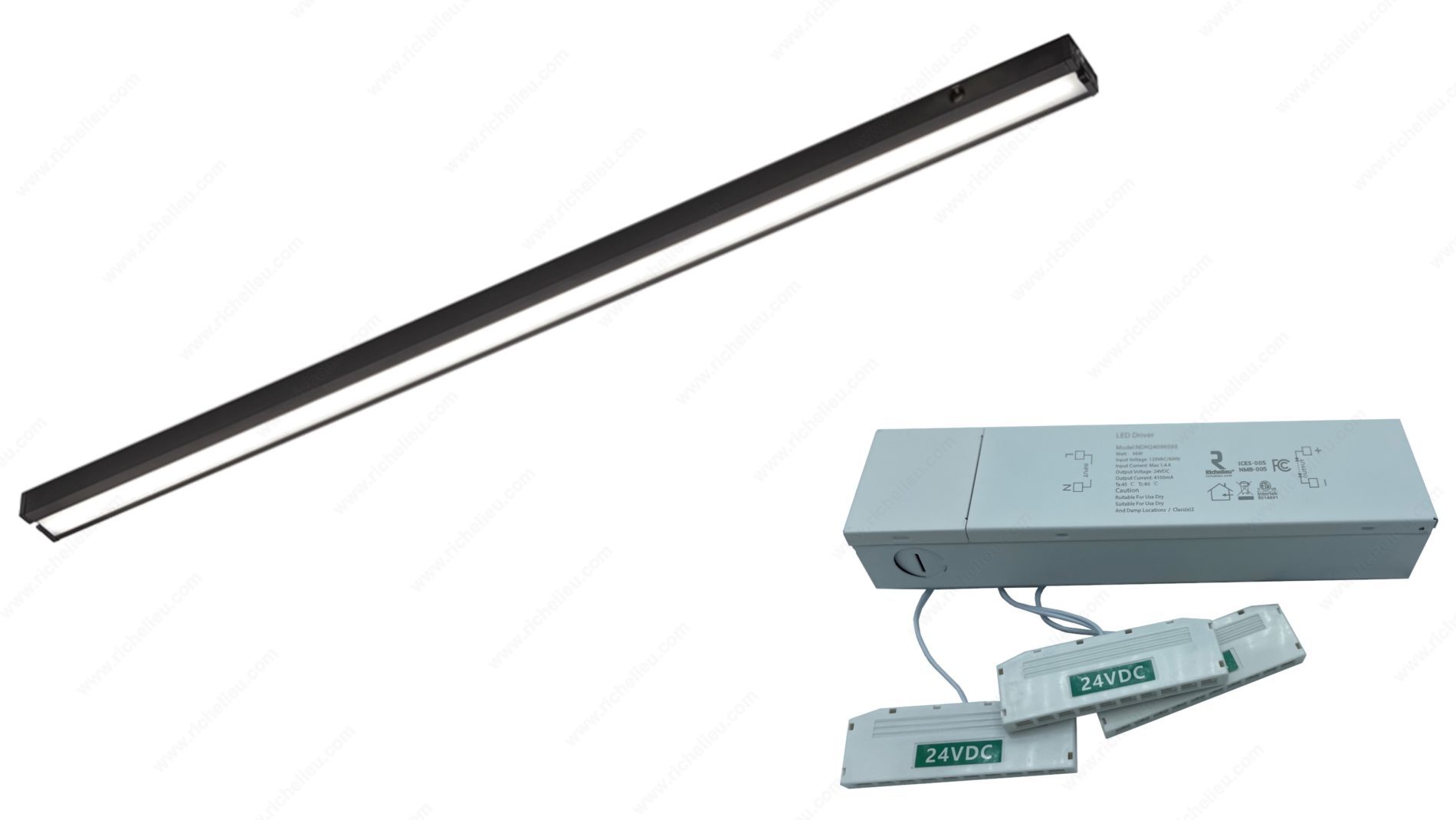

BASKI LED Drawer Cabinet - Starter Guide
Control type:
- Built-in Sensor
The benefits of this set are:
- Baski is an LED designed for application in kitchen base units.
- The profile integrates one sensor to switch it on and off automatically when the door is opened and closed.
- It is installed on the side of the frame with thicknesses of 5/8", 23/32", 3/4" (16mm, 18mm, 19mm).
- Available in two finishes: aluminum and black.
- Available in fixed lengths: 18" (457 mm), 24" (609 mm), 30" (762 mm), 36" (914 mm), 48" (1219 mm).
- Includes a pre-wired 78" power cable.
- Extension cables are available in 20", 40" and 78".
- Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Important information
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
Application: Kitchen
CRI ( Color Rendering Index): 80
Compatibility: Micro 24
Connection Type: Micro 24
Control System: IR
Finish: Black
IP: IP20
Kelvin Color Temperature ( K): 4000 K
Length: 30 in*
Lighting: Task, Functional
Lighting Type: LED
Location: Inside Cabinet
Luminaire: Rigid Linear
Luminous Efficiency: 85 lm/W
Operation: Door
Product #: WEBKIT1246079
Standards and Certifications: UL, ETL
Style: Contemporary
Tension ( V): 24 V
Watts: 6.2 W
