Richelieu WEBKIT1248921 AVENTOS HKi Semi-Recessed Set, No HandleRichelieu WEBKIT1248921 AVENTOS HKi Semi-Recessed Set Without Handle offers a compact and narrow mechanism that seamlessly integrates into the side of the cabinet body, creating a high-end aesthetic that enhances any modern kitchen design. This innovative lift mechanism not only maximizes visual appeal but also opens up myriad possibilities for furniture arrangement. Key features include a force reservoir adjustment located at the front, an integrated opening angle limiter, and a continuous stop function, ensuring smooth operation and reliability. Designed for frameless cabinet models, this system accommodates door thicknesses ranging from 5/8 to 31/32 inches, supporting both wide and narrow aluminum-framed doors up to a maximum weight of 39.7 lbs. The silk white finish adds a sophisticated touch, while the soft-close and touch release motion technology enhance user experience. The power factor ranges from 1,730 to 5,200, allowing for precise adjustments based on the door's weight and cabinet height. For optimal performance, particularly with wide cabinet bodies, it is advisable to attach an additional force reservoir and conduct a test installation when nearing the maximum limits. This set is perfect for those seeking elegance and functionality in cabinetry solutions.

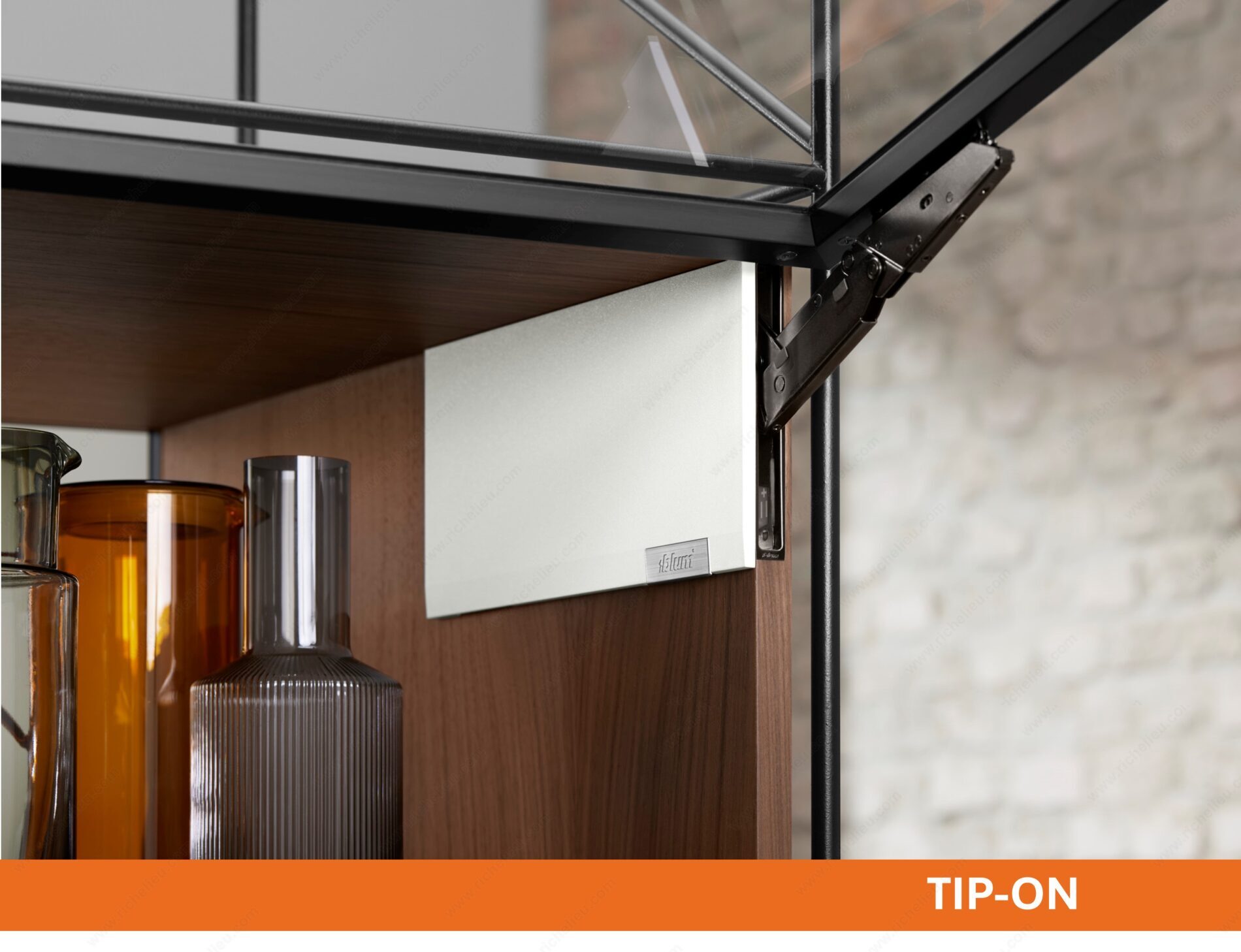

AVENTOS HKi Semi-Recessed Set Without Handle
Compact and Narrow Mechanism, Ultra-Thin Cover
AVENTOS HKi integrates partially into the side of the cabinet body. The lift mechanism fitting thus blends seamlessly into the furniture, opening up new possibilities for high-end aesthetic designs. You achieve a pure piece of furniture and total freedom of arrangement.
Some advantages:
- Force reservoir adjustment at the front
- Integrated opening angle limiter
- Continuous stop
Note:
The power factor allows you to determine the appropriate force reservoir. The power factor depends on the weight of the front (double the weight of the handle included) and the height of the cabinet body. If a third force reservoir is used (increasing the power factor by up to 50%), we recommend a test installation.
For wide cabinet bodies, we recommend attaching an additional force reservoir to an intermediate side panel due to the flexing of the front in the open position. We recommend conducting a test installation when the values for each force reservoir are at the limit of the allowable values!
Attributes
Brand: Blum
Cabinet Model: Frameless
Compatible with aluminum frame doors: Yes
Door Height: Max. 23 5/8 in*
Door Length: Max. 70 7/8 in*
Door Thickness: 5/8 to 31/32 in*
Door Type: Wide Aluminum-Framed Door / Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: Max. 39.7 lb*
Finish: Silk White
Model: Aventos HKi
Motion Technology: Soft-Close, Touch Release
Opening Types: Lift-Up Opening
Power Factor: 1 730 to 5 200
Product #: WEBKIT1248921
