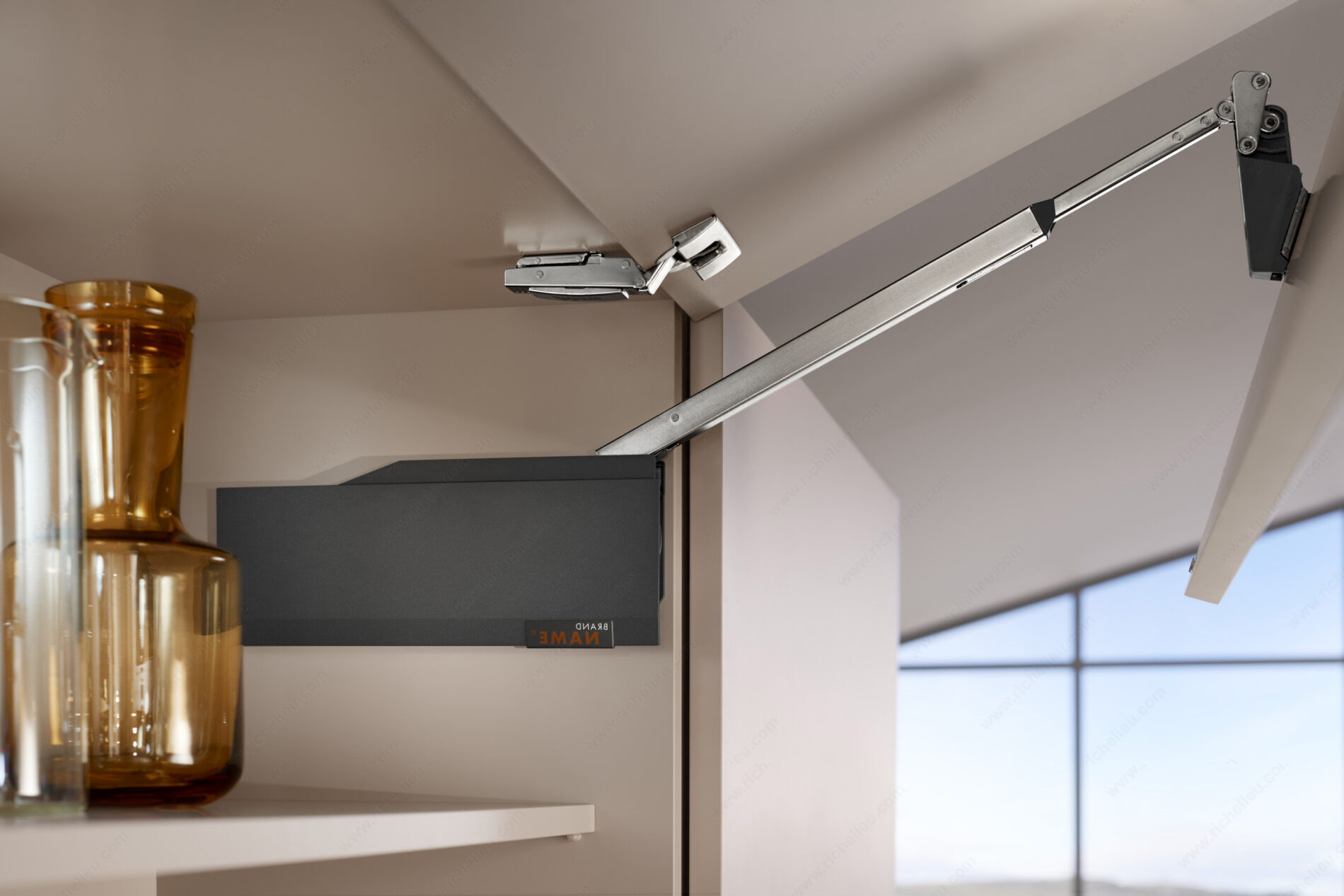

Richelieu WEBKIT1249481 AVENTOS HF Top Set for Frameless Partial Overlay Face Frame CabinetsRichelieu WEBKIT1249481 AVENTOS HF top set for frameless cabinets or partial overlay face frame cabinets offers an innovative solution for modern kitchen and living space design. This bi-fold lift system is specifically engineered for tall wall cabinets, enhancing both functionality and aesthetics while ensuring effortless operation. Designed for cabinets with a height ranging from 480 mm (18-7/8 in) to 1219 mm (48 in) and a width of up to 1828 mm (72 in), the AVENTOS HF top is versatile enough to accommodate a variety of cabinet sizes. With a minimum internal depth of 264 mm (10-3/8 in), this system is suitable for wood doors and wide aluminum-framed doors. Key features include integrated BLUMOTION technology for soft, quiet closing, light operating forces for ease of use, and a variable stop for customized functionality. The tool-free assembly and 3-dimensional door adjustment ensure a seamless installation process. Additionally, the center hinge includes a finger safety feature, adding an extra layer of security. Elevate your cabinetry with the Richelieu AVENTOS HF top, where every detail is crafted to enhance user comfort and the overall elegance of your space. Choose quality and innovation for your wall cabinets today!
AVENTOS HF top set for Frameless cabinet or partial overlay Face Frame cabinet
The Perfection of Motion for Your Wall Cabinets
With AVENTOS HF top, enjoy a bi-fold lift system designed to meet the needs of modern kitchens and living spaces. Ideal for tall wall cabinets, it allows you to create elegant and functional fronts while ensuring optimal ease of use.
Key Product Features:
- Ideal for taller wall cabinets with bi-fold doors
- Cabinet height 480 mm (18-7/8 in) to 1219 mm (48 in)
- Cabinet width up to 1828 mm (72 in)
- Inside depth of at least 264 mm (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Integrated opening angle stop
- Fixed position of the lift mechanism and mounting plate for lever
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of both doors
- Center hinge with finger safety feature
With AVENTOS HF top, every opening becomes a pleasure, and every detail is designed to combine aesthetics with user comfort. Choose quality and innovation for your wall cabinets!
Attributes
Brand: Blum
Door Height: 33 1/8 to 48 in*
Door Length: Max. 72 in*
Door Type: Wood Door, Wide Aluminum-Framed Door
Finish: Dark Gray
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Folding Opening
Power Factor: 880 to 1 698
Product #: WEBKIT1249481
Screw/ Nail: Wood Screw (Included)
