Richelieu WEBKIT1249538 AVENTOS HF Top Sets for Large Overlay Face Frame CabinetsRichelieu WEBKIT1249538 AVENTOS HF top sets for large overlay Face Frame cabinet elevate the functionality of your wall cabinets with a sophisticated bi-fold lift system. Tailored for tall wall cabinets ranging from 480 mm (18-7/8 in) to 1219 mm (48 in) in height and up to 1828 mm (72 in) in width, this solution seamlessly blends aesthetics with practicality. Designed for optimal ease of use, the AVENTOS HF top features integrated BLUMOTION technology, ensuring soft and effortless closing with light operating forces. Its variable stop and integrated opening angle stop enhance usability, while the fixed position of the lift mechanism and symmetrical levers promote stability and reliability. The tool-free assembly process simplifies installation, and the 3-dimensional adjustment of both doors ensures a perfect fit. The center hinge includes a finger safety feature, adding an extra layer of safety for users. Compatible with wood and wide aluminum-framed doors, this system is finished in a sleek silk white, complementing modern kitchen designs. With Richelieu's AVENTOS HF top, transforming your wall cabinets into elegant, user-friendly spaces has never been easier. Invest in quality and innovation to enhance your living environment.
AVENTOS HF top sets for large overlay Face Frame cabinet
The Perfection of Motion for Your Wall Cabinets

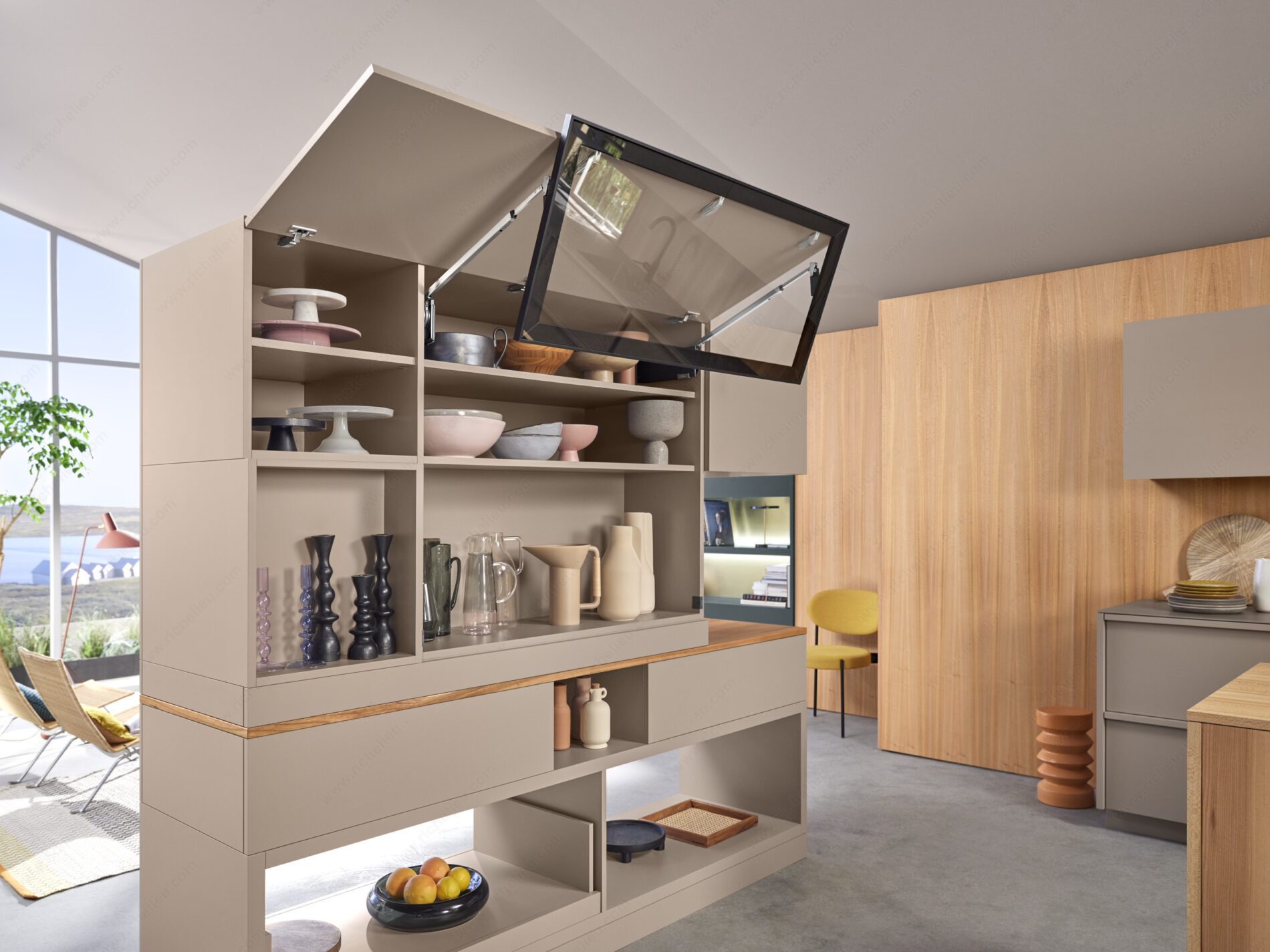

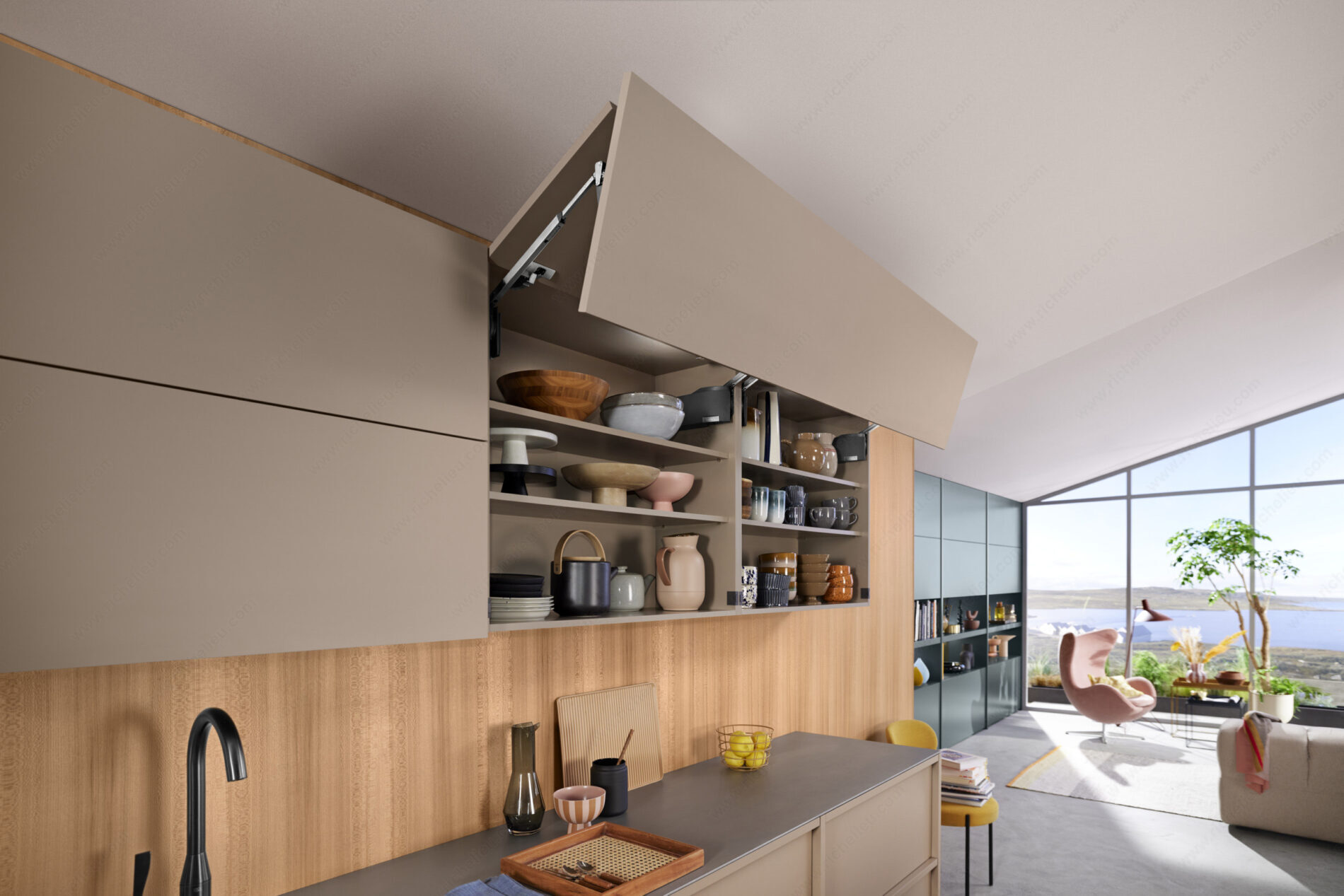

With AVENTOS HF top, enjoy a bi-fold lift system designed to meet the needs of modern kitchens and living spaces. Ideal for tall wall cabinets, it allows you to create elegant and functional fronts while ensuring optimal ease of use.
Key Product Features:
- Ideal for taller wall cabinets with bi-fold doors
- Cabinet height 480 mm (18-7/8 in) to 1219 mm (48 in)
- Cabinet width up to 1828 mm (72 in)
- Inside depth of at least 264 mm (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Integrated opening angle stop

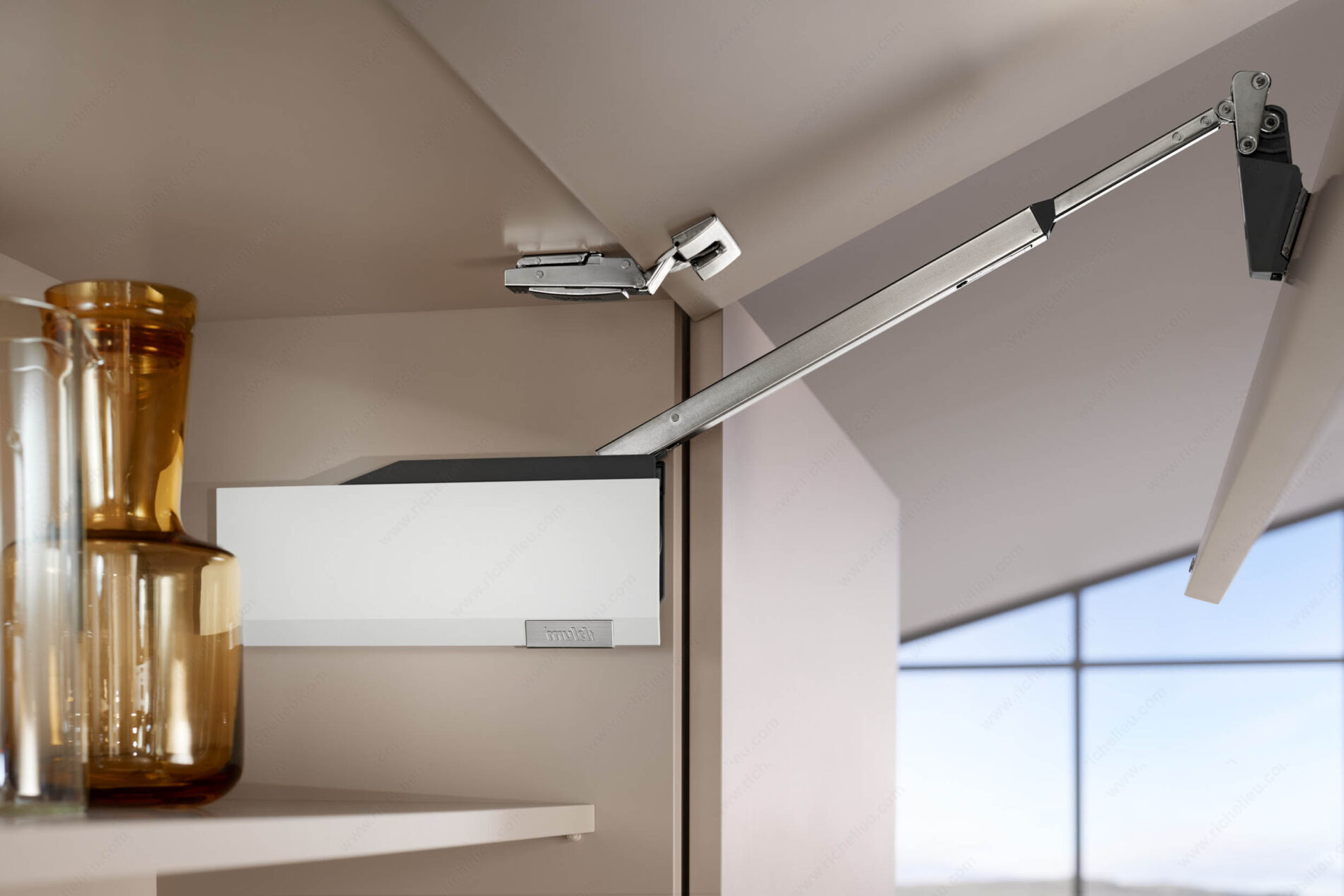

- Fixed position of the lift mechanism and mounting plate for lever
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of both doors
- Center hinge with finger safety feature
With AVENTOS HF top, every opening becomes a pleasure, and every detail is designed to combine aesthetics with user comfort. Choose quality and innovation for your wall cabinets!
Attributes
Brand: Blum
Door Height: 33 1/8 to 48 in*
Door Length: Max. 72 in*
Door Type: Wood Door, Wide Aluminum-Framed Door
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Folding Opening
Power Factor: 238 to 1 188
Product #: WEBKIT1249538
Screw/ Nail: Pre-Mounted Euro Screw
