Richelieu WEBKIT1249561 AVENTOS HF Top Set for Frameless CabinetsRichelieu WEBKIT1249561 AVENTOS HF top set for frameless cabinet brings innovation and elegance to your kitchen with its advanced bi-fold lift system, specifically designed for taller wall cabinets. With cabinet heights ranging from 480 mm (18-7/8 in) to 1219 mm (48 in) and widths up to 1828 mm (72 in), this system offers exceptional versatility for your cabinetry needs. The AVENTOS HF top ensures effortless operation with integrated BLUMOTION, providing a soft and quiet closing mechanism. Light operating forces enhance user comfort, while the variable stop and integrated opening angle stop offer customizable functionality. Installation is a breeze with tool-free assembly and two methods for lifting mechanism fixation, allowing for a smooth setup experience. Designed for narrow aluminum-framed doors (20 mm and less), it accommodates door heights of 23 5/8 in to 35 7/8 in, ensuring a perfect fit for your modern kitchen aesthetic. The system also features a center hinge with a finger safety feature and 3-dimensional adjustment for both doors, enhancing usability and safety. Choose Richelieu’s AVENTOS HF top set for a sophisticated solution that combines style, functionality, and ease of use, transforming every cabinet opening into a seamless experience.

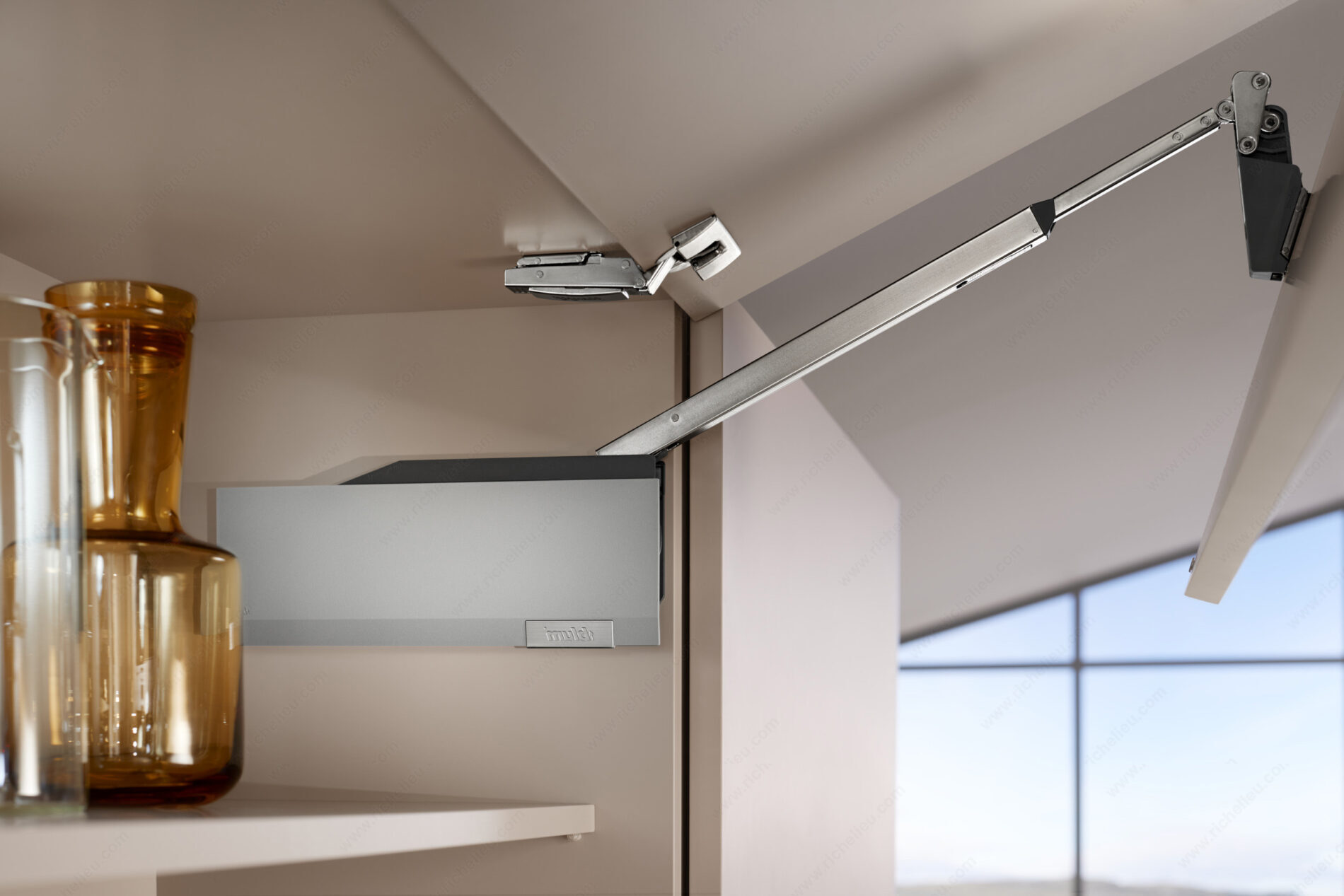

AVENTOS HF top set for frameless cabinet
The Perfection of Motion for Your Wall Cabinets
With AVENTOS HF top, enjoy a bi-fold lift system designed to meet the needs of modern kitchens and living spaces. Ideal for tall wall cabinets, it allows you to create elegant and functional fronts while ensuring optimal ease of use.
Key Product Features:
- Ideal for taller wall cabinets with bi-fold doors
- Cabinet height 480 mm (18-7/8 in) to 1219 mm (48 in)
- Cabinet width up to 1828 mm (72 in)
- Inside depth of at least 264 mm (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Integrated opening angle stop
- Fixed position of the lift mechanism and mounting plate for lever
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of both doors
- Center hinge with finger safety feature
With AVENTOS HF top, every opening becomes a pleasure, and every detail is designed to combine aesthetics with user comfort. Choose quality and innovation for your wall cabinets!
Attributes
Brand: Blum
Door Height: 23 5/8 to 35 7/8 in*
Door Length: Max. 72 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Finish: Pale Grey
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Folding Opening
Power Factor: 238 to 1 188
Product #: WEBKIT1249561
Screw/ Nail: Pre-Mounted Euro Screw
