Richelieu WEBKIT1249694 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249694 kits AVENTOS HS top -Canad offers a compact, functional solution for large, single-piece facades, ensuring smooth and effortless opening. This innovative system allows doors to tilt gently above the cabinet, creating a weightless sensation and providing unparalleled freedom of movement. Designed for cabinets ranging from 350 to 800 mm in height (13 3/4 in - 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), this system accommodates door weights between 6.06 to 33.6 lb. The integrated BLUMOTION damper adjustment minimizes resistance forces, while the continuous stop feature ensures stability during use. With tool-free assembly and two types of force reservoir mounting, installation is quick and straightforward. The AVENTOS HS top maximizes storage capacity without the need for a cross stabilizer, seamlessly integrating into your design for optimized space and controlled ergonomics. The opening mechanism provides complete access to the interior without encroaching on the workspace, making it particularly suitable for modern living environments. For thin facades, the 20S42T1 front attachment can be utilized. Elevate your cabinetry with the refined functionality of Richelieu's AVENTOS HS top.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

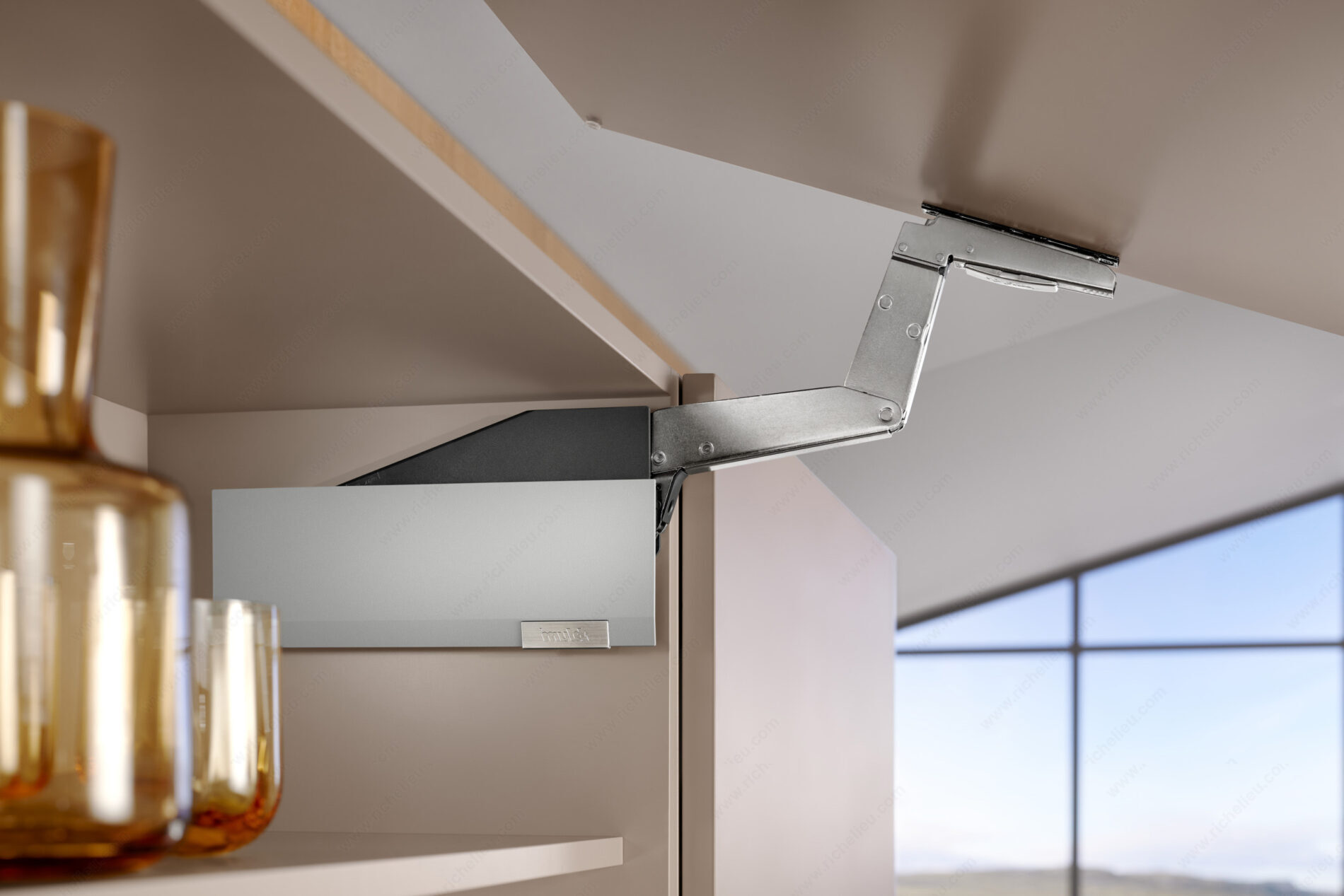

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment

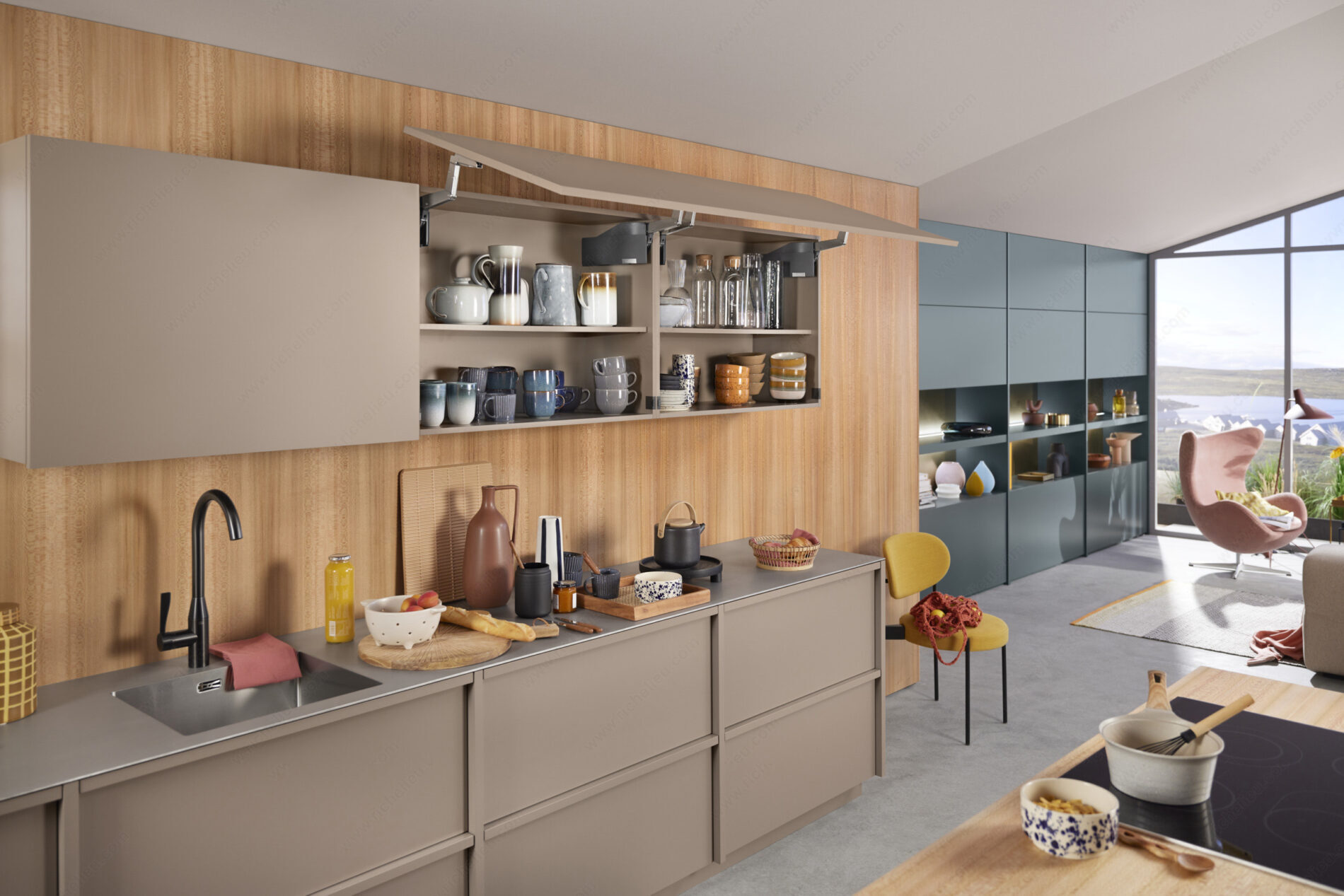

Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 18 7/8 to 26 in*
Door Length: Max. 70 7/8 in*
Door Type: Wood Door / Wide Aluminum-Framed Door
Door Weight: 6.06 to 33.6 lb*
Finish: Pale Grey
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249694
Screw/ Nail: Wood Screw (Included)
