Richelieu WEBKIT1249699 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249699 kits AVENTOS HS top -Canad offers a compact and functional solution for large doors, expertly designed for single-piece facades. This innovative system ensures a smooth and effortless opening mechanism, allowing doors to tilt gently above the cabinet. Users will appreciate the weightless sensation and unparalleled freedom of movement it provides. Ideal for cabinet heights ranging from 350 to 800 mm (13 3/4 in to 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), the AVENTOS HS top accommodates a minimum interior depth of 264 mm (10 3/8 in). It features an integrated BLUMOTION damper adjustment, ensuring minimal resistance forces and a continuous stop for precise control. The tool-free assembly and two types of force reservoir mounting simplify installation, while the 3-dimensional face adjustment allows for perfect alignment. Thanks to its opening outside of the movement range, this system maximizes access to the cabinet interior without encroaching on workspace. The absence of a cross stabilizer enhances storage capacity and seamlessly integrates into various designs, promoting optimized space and controlled ergonomics. For thin facades, the optional 20S42T1 front attachment is available for added flexibility.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

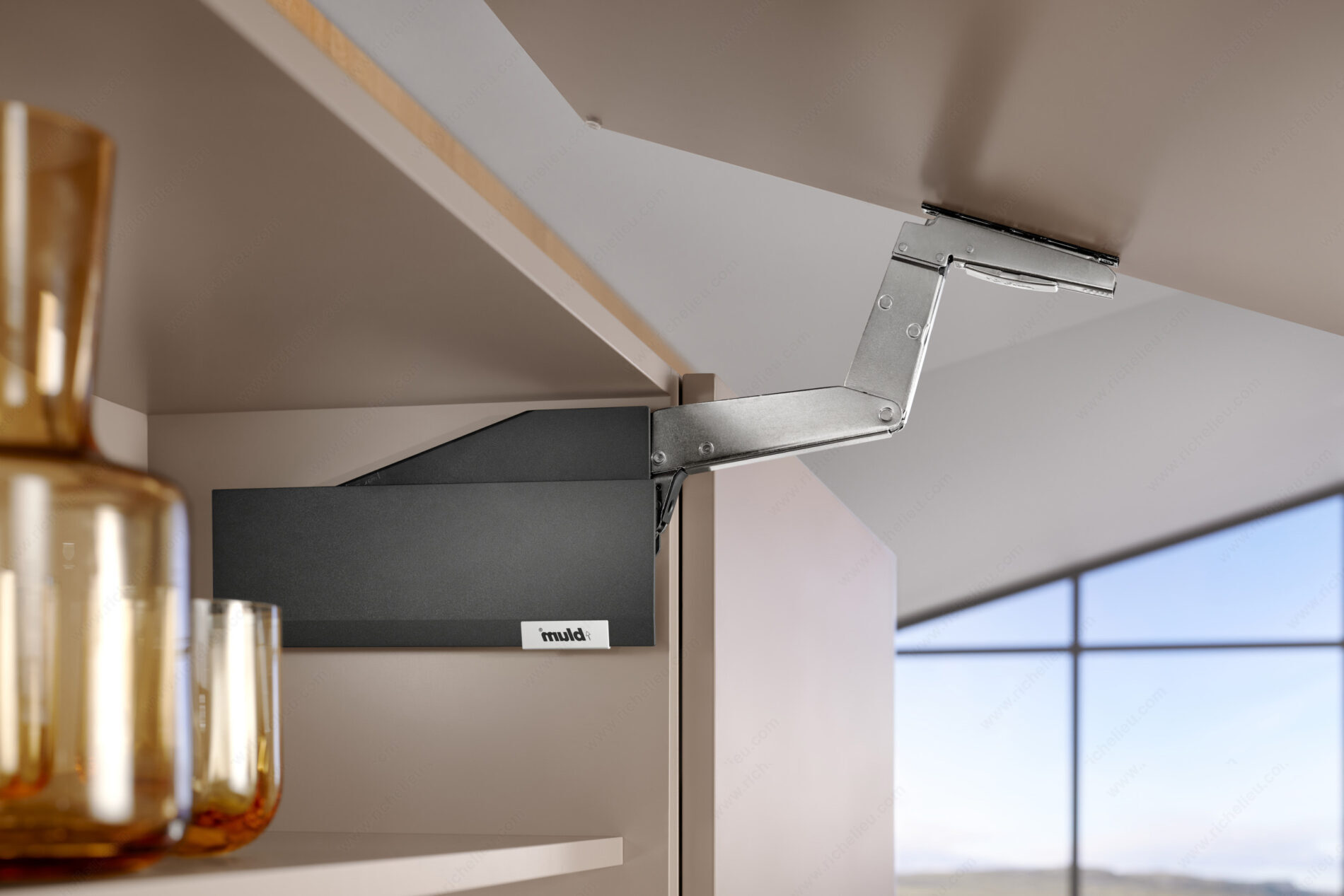

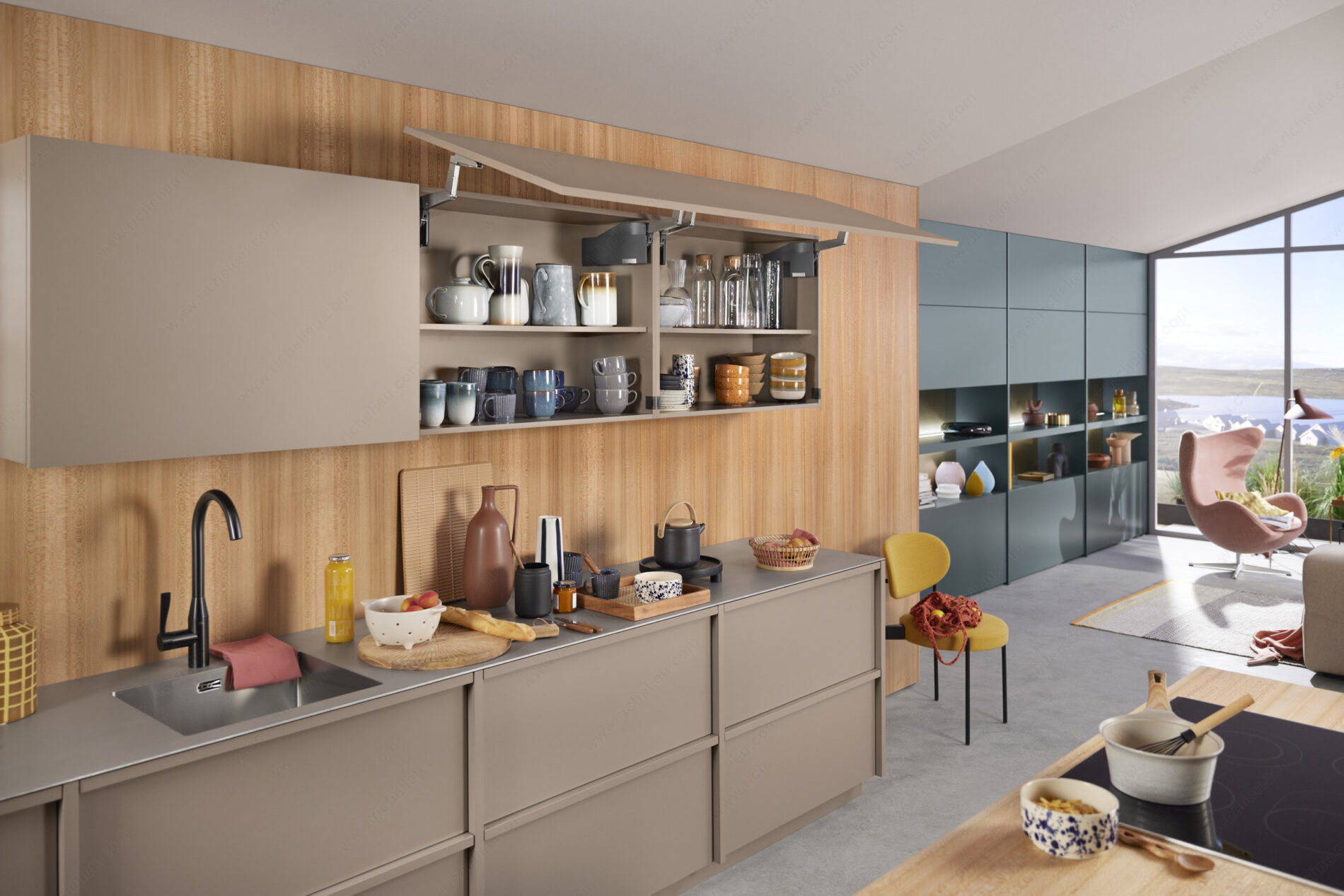

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 25 5/8 to 31 1/2 in*
Door Length: Max. 70 7/8 in*
Door Type: Wood Door / Wide Aluminum-Framed Door
Door Weight: 7.72 to 40.8 lb*
Finish: Dark Gray
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249699
Screw/ Nail: Wood Screw (Included)
