Richelieu WEBKIT1249701 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249701 kits AVENTOS HS top -Canada- offers a compact and highly functional solution for large, single-piece facades. Designed to ensure smooth and effortless opening, this system allows doors to tilt gently above the cabinet, creating a weightless sensation and unparalleled freedom of movement. Ideal for cabinets ranging from 350 to 800 mm in height and up to 1,800 mm in width, the AVENTOS HS top accommodates a minimum interior depth of 264 mm. The integrated BLUMOTION damper adjustment ensures minimal resistance forces, offering a continuous stop for enhanced usability. With a fixed position for the force reservoir and front attachment, along with symmetrical force reservoirs and arms, this system enhances stability and performance. Tool-free assembly simplifies installation, while two types of force reservoir mounting and 3-dimensional face adjustment provide flexibility for various design needs. The innovative design maximizes storage capacity without encroaching on workspace, making it perfect for optimizing both space and ergonomics. For thin facades, the 20S42T1 front attachment is recommended, which can be found among the suggested products. Elevate your cabinetry with the Richelieu AVENTOS HS top and experience a new level of functionality and style.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

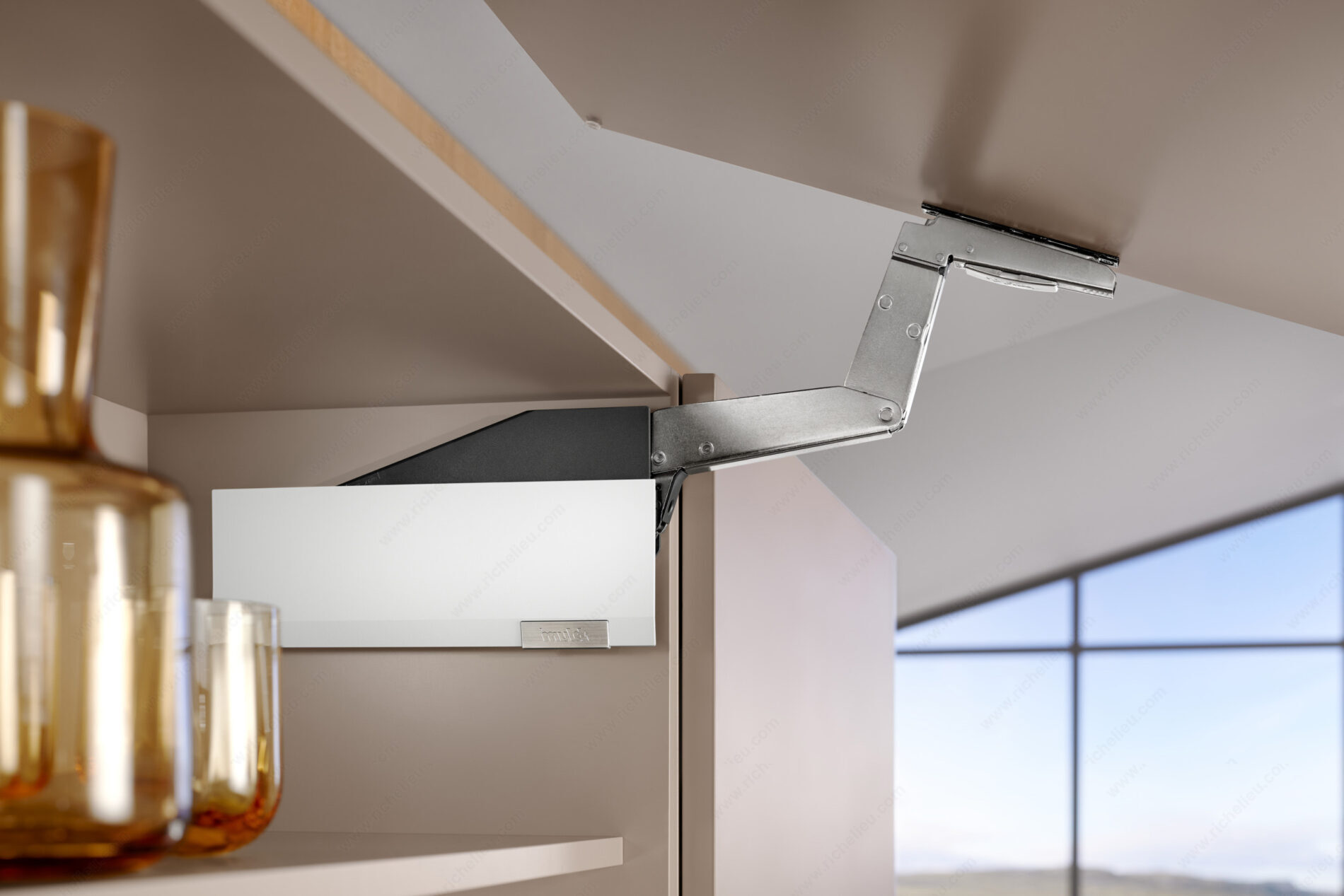

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 17 3/4 to 21 1/4 in*
Door Length: Max. 70 7/8 in*
Door Type: Wood Door / Wide Aluminum-Framed Door
Door Weight: 5.51 to 27.6 lb*
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249701
Screw/ Nail: Wood Screw (Included)
