A compact and functional solution for large doors

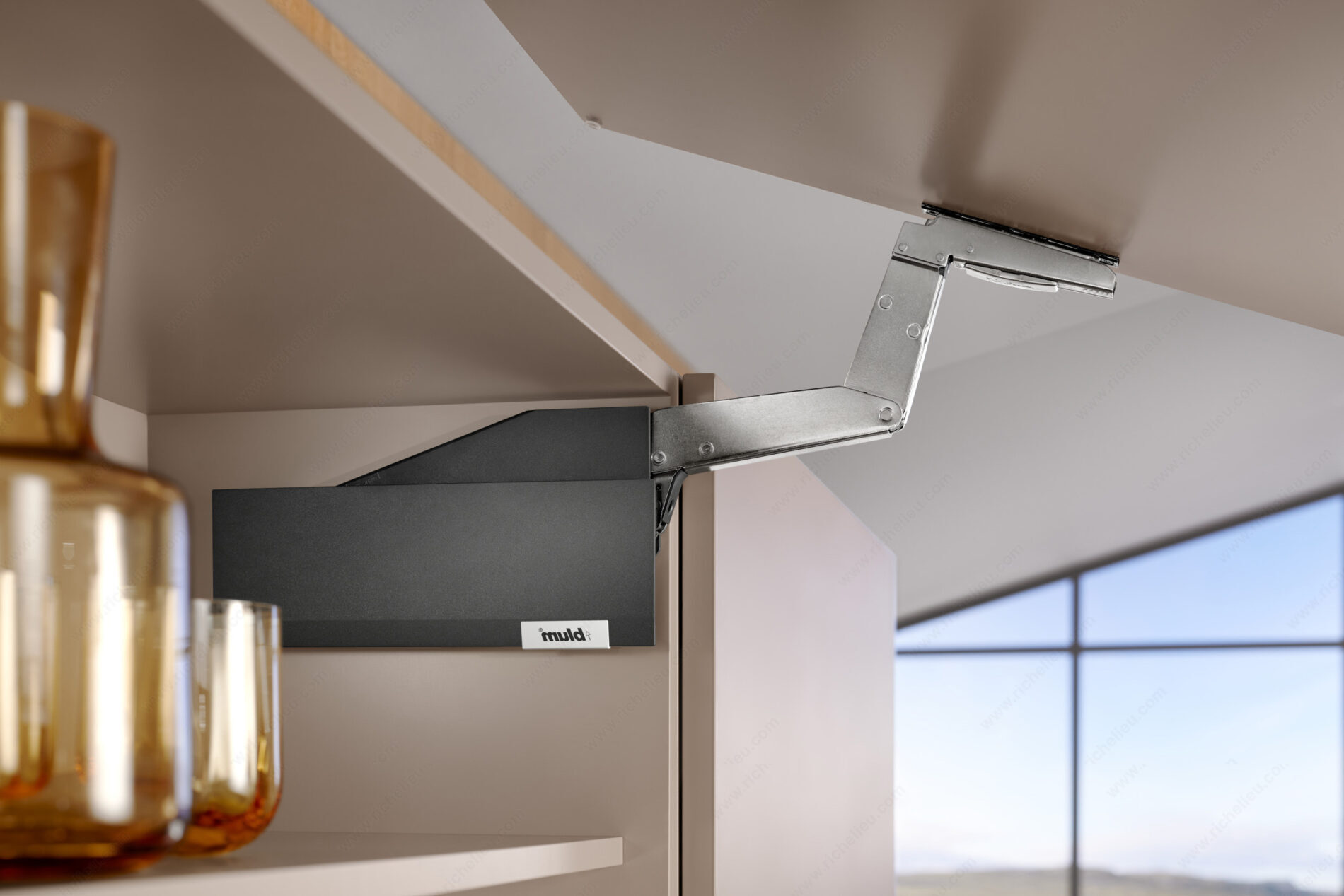

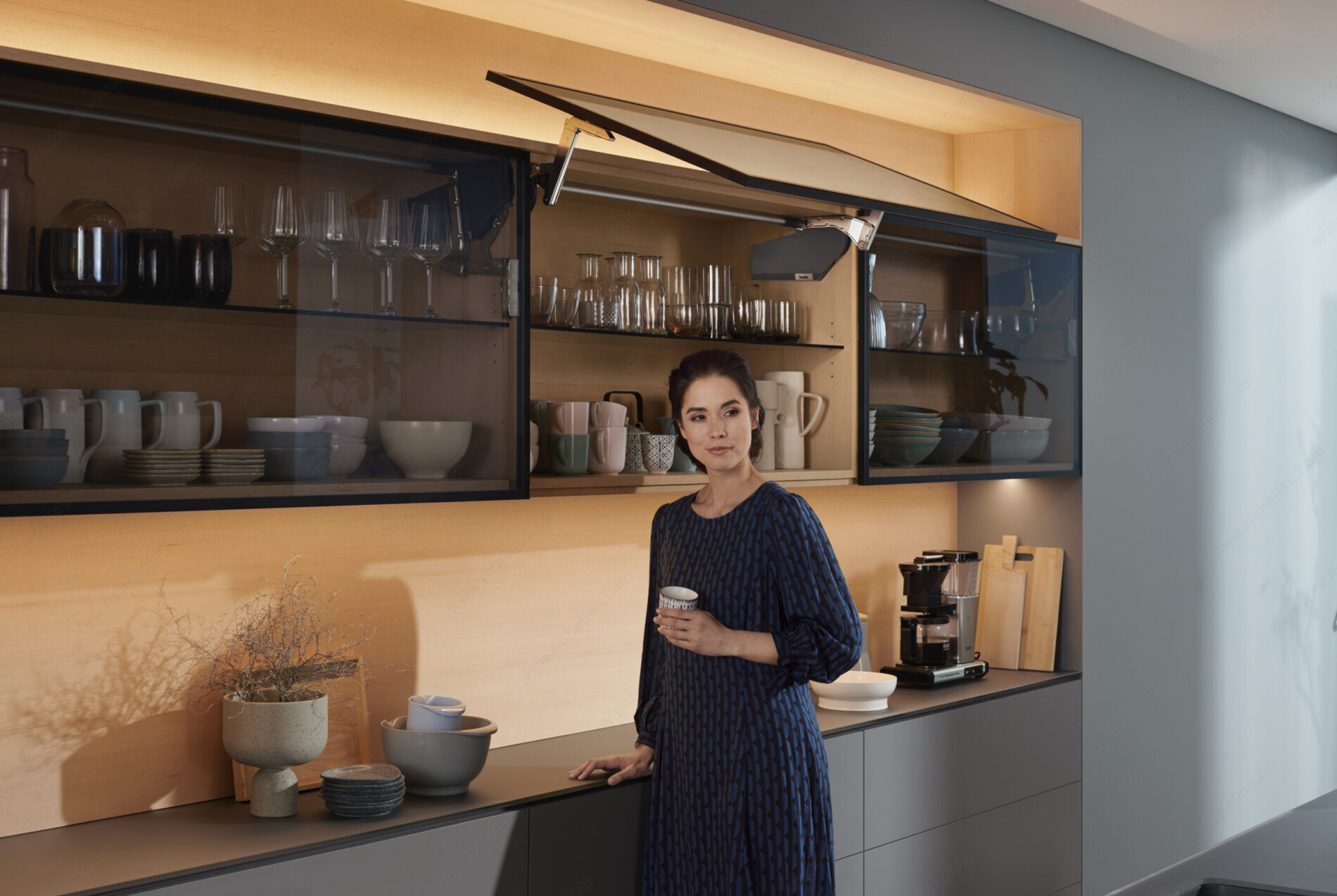

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 18 7/8 to 26 in*
Door Length: Max. 70 7/8 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 6.06 to 33.6 lb*
Finish: Dark Gray
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249710
Screw/ Nail: Wood Screw (Included)
