Richelieu WEBKIT1249711 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249711 kits AVENTOS HS top -Canad offers a compact and functional solution for large, single-piece facades. Designed specifically for doors that require effortless operation, this innovative system allows the door to tilt gently above the cabinet, creating a weightless sensation that enhances the user experience. This product is ideal for cabinets with heights ranging from 350 to 800 mm (13 3/4 in - 31 1/2 in) and widths up to 1,800 mm (70 7/8 in). With a minimum interior depth of 264 mm (10 3/8 in), it ensures maximum storage capacity without compromising design. The integrated BLUMOTION damper adjustment provides minimal resistance forces, allowing for smooth and controlled movement. Notably, the AVENTOS HS top opens outside of the movement range, granting complete access to the cabinet's interior without interfering with the surrounding workspace. The tool-free assembly and symmetrical force reservoirs facilitate easy installation, while the 3-dimensional face adjustment ensures precise alignment. For those utilizing thin facades, the 20S42T1 front attachment is recommended. With its functional design and refined aesthetics, the Richelieu AVENTOS HS top is an ideal choice for modern cabinetry solutions.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

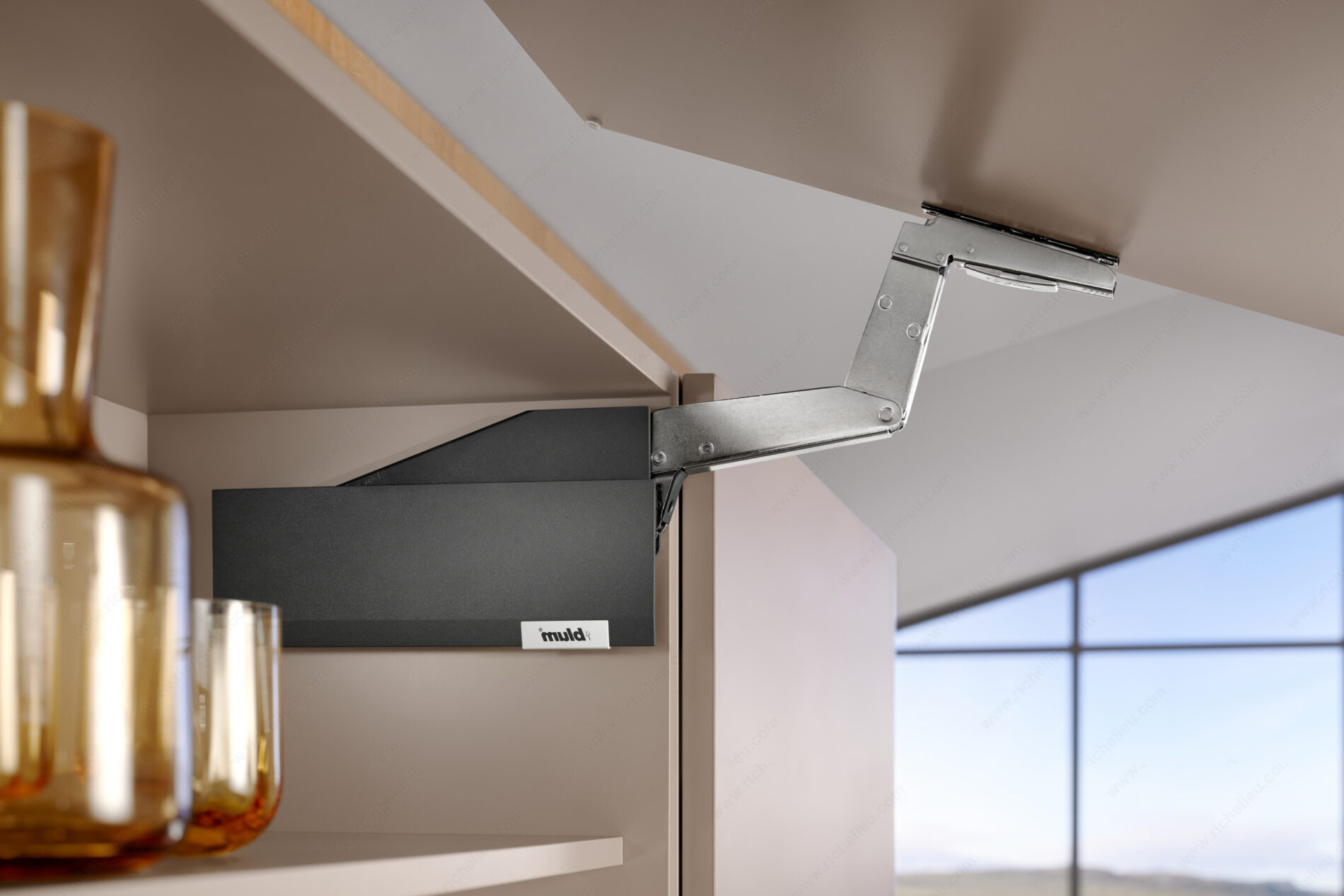

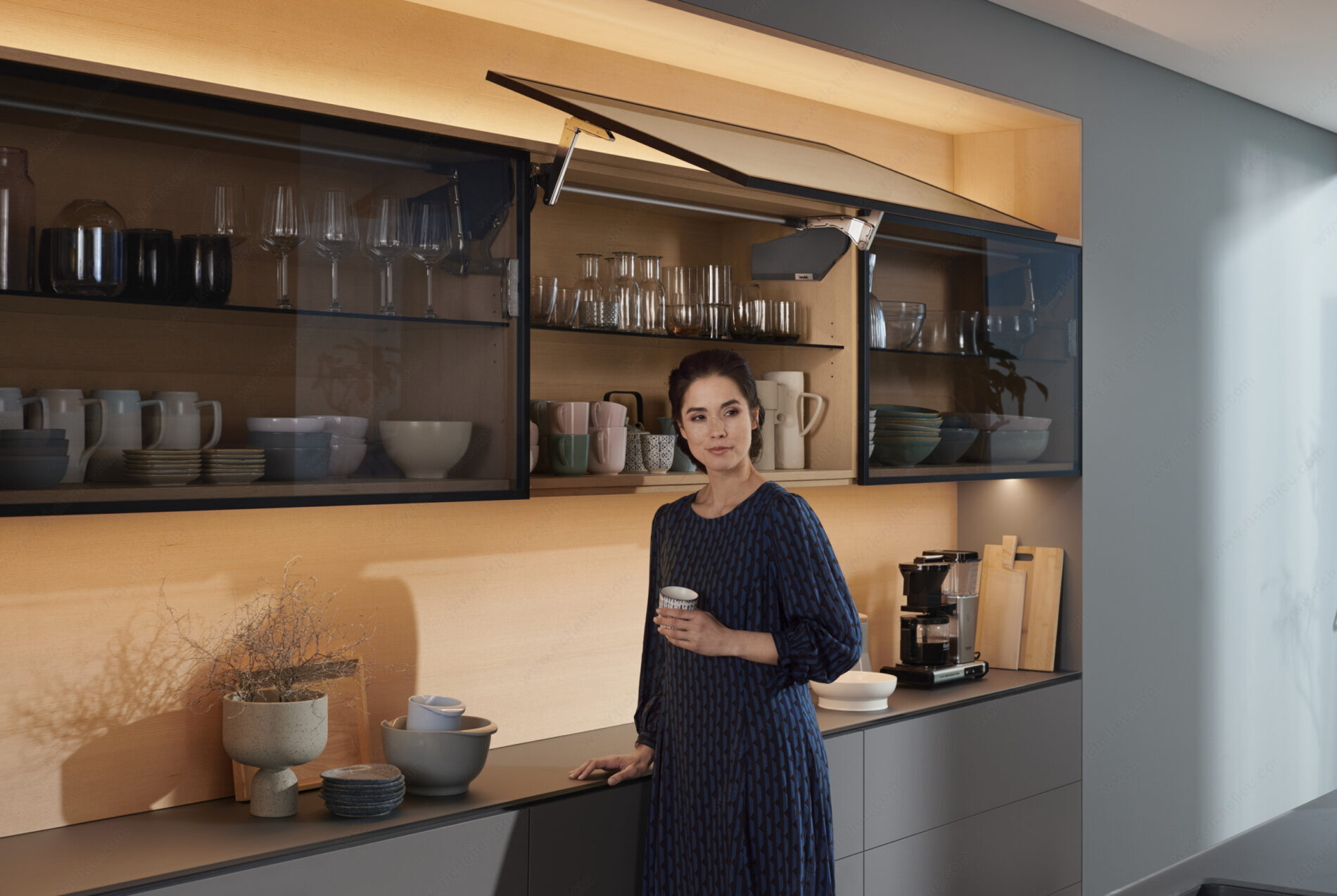

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 25 5/8 to 31 1/2 in*
Door Length: Max. 70 7/8 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 7.72 to 40.8 lb*
Finish: Dark Gray
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249711
Screw/ Nail: Wood Screw (Included)
