Richelieu WEBKIT1249713 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249713 kits AVENTOS HS top offers a compact and functional solution for large, single-piece facades, ensuring smooth and effortless door operation. This innovative system allows doors to tilt gently above the cabinet, providing a weightless feel and enhancing freedom of movement. Designed for cabinets ranging from 350 to 800 mm in height and up to 1,800 mm in width, the AVENTOS HS top is perfect for maximizing storage capacity while maintaining a sleek aesthetic. It requires a minimum interior depth of 264 mm, allowing for versatile installation. The integrated BLUMOTION damper adjustment and minimal resistance forces contribute to a seamless user experience, while features like continuous stop and symmetrical force reservoirs enhance stability and performance. Tool-free assembly simplifies installation, and the system accommodates two types of force reservoir mounting for added flexibility. The 3-dimensional face adjustment ensures precise alignment, making it ideal for narrow aluminum-framed doors. For thin facades, the 20S42T1 front attachment is recommended. With its up-and-over opening mechanism, the AVENTOS HS top ensures complete access to the cabinet interior without encroaching on the workspace, making it a perfect blend of functionality and design.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

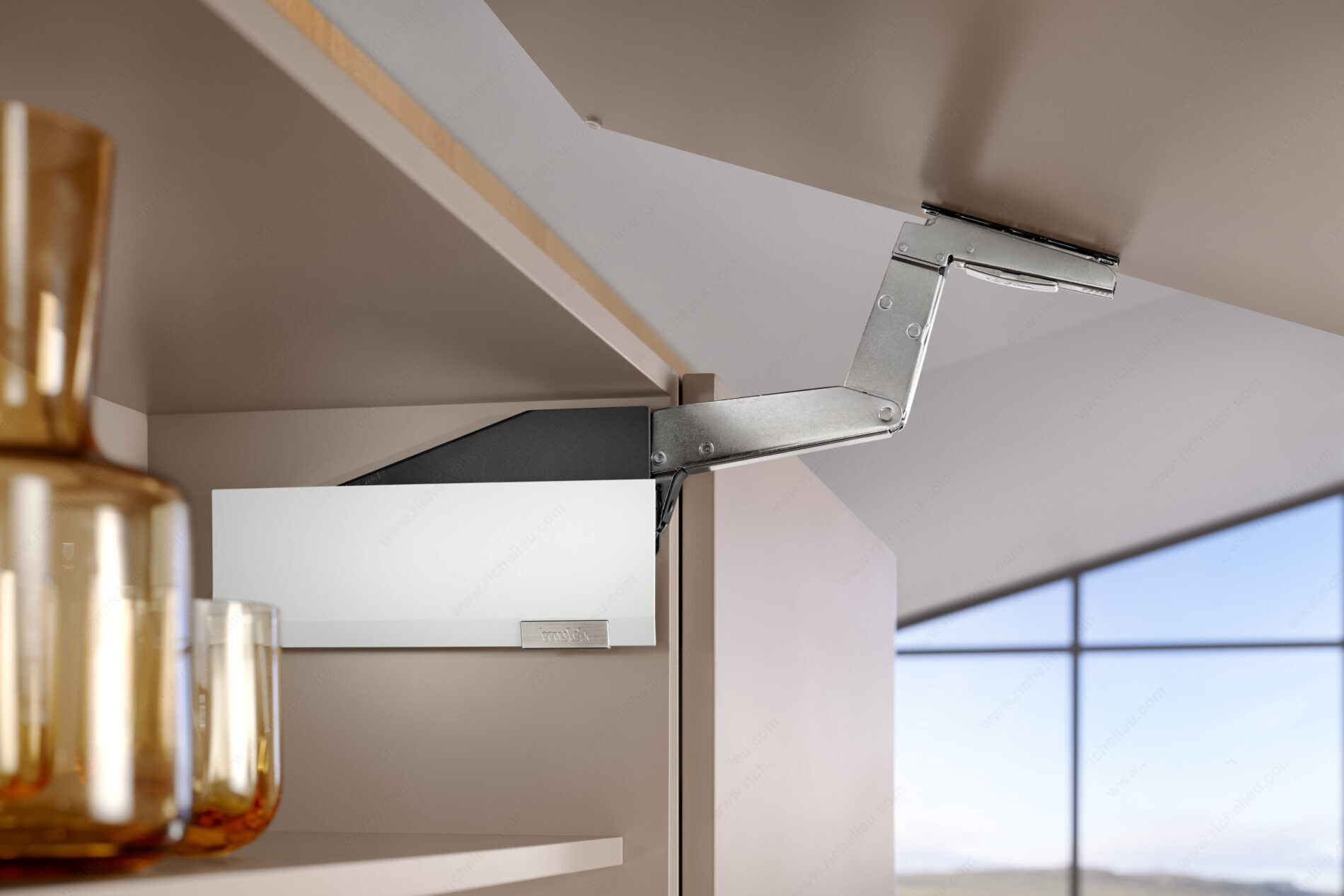

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 17 3/4 to 21 1/4 in*
Door Length: Max. 70 7/8 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 5.51 to 27.6 lb*
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249713
Screw/ Nail: Wood Screw (Included)
Resources
