Richelieu WEBKIT1249715 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249715 kits AVENTOS HS top -Canad provides a compact and functional solution specifically designed for large, single-piece facades. This innovative system ensures smooth and effortless opening, allowing doors to tilt gently above the cabinet. This design offers a weightless sensation and unparalleled freedom of movement, enhancing the user experience. Ideal for cabinet heights ranging from 350 to 800 mm (13 3/4 in to 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), the AVENTOS HS top is engineered for efficiency. The minimum interior depth required is 264 mm (10 3/8 in), making it suitable for various cabinetry designs. Its integrated BLUMOTION damper adjustment ensures minimal resistance forces and provides a continuous stop for added convenience. The kit is designed for tool-free assembly and features two types of force reservoir mounting with symmetrical force reservoirs and arms. Notably, it allows for 3-dimensional face adjustment, maximizing storage capacity without encroaching on workspace. For thin facades, the recommended 20S42T1 front attachment can be used. With its sleek silk white finish, this system seamlessly integrates into modern designs while optimizing space and controlled ergonomics.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

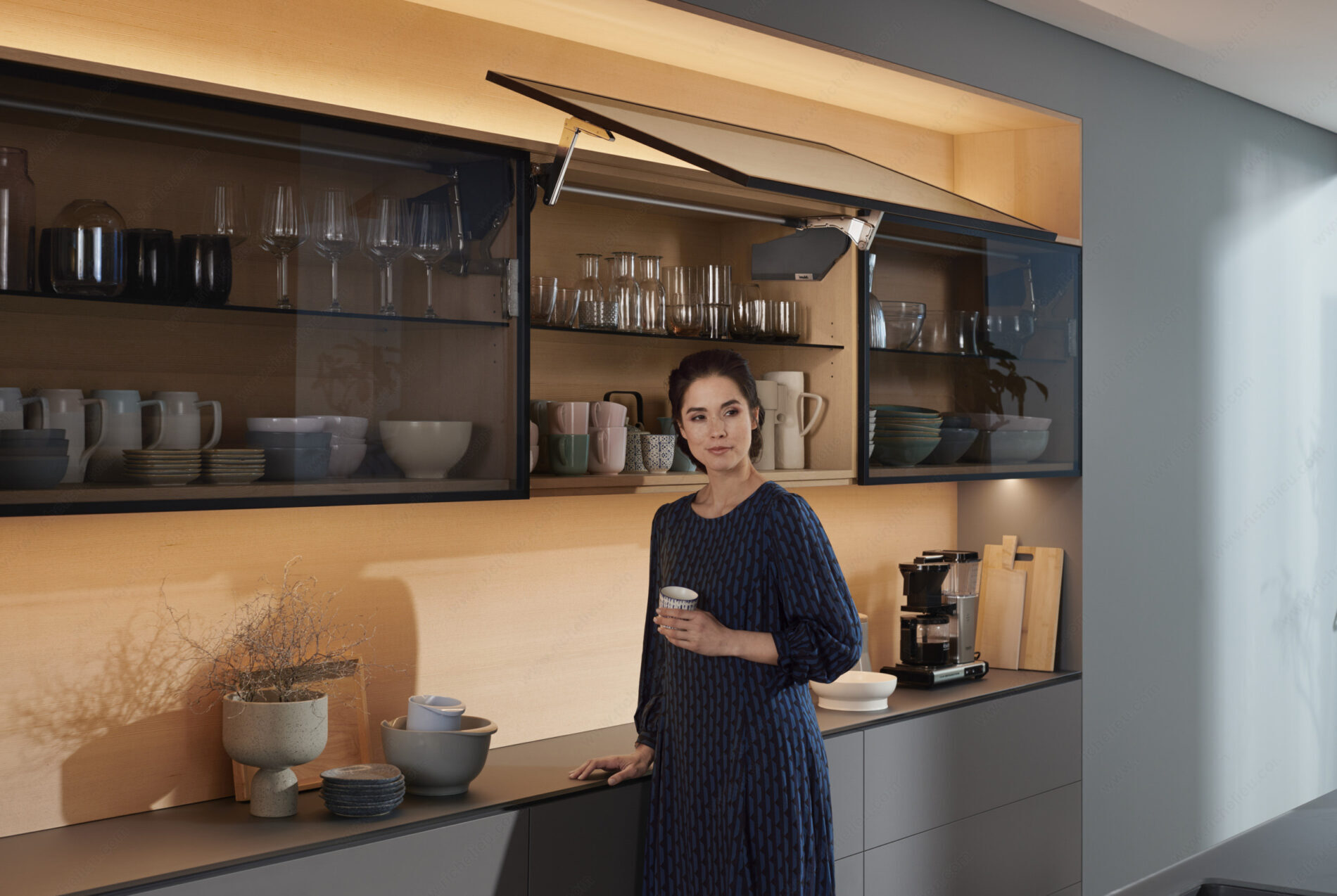

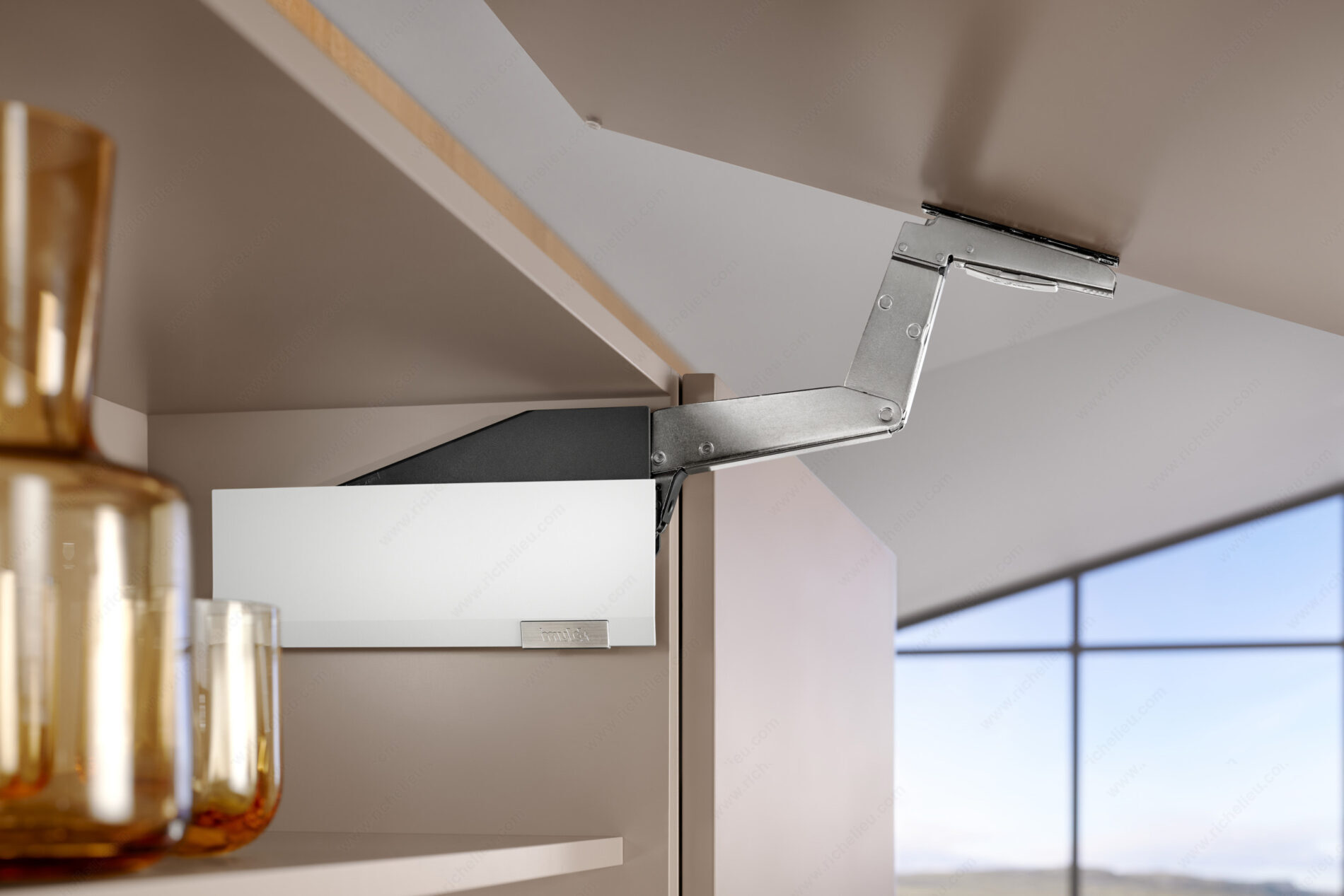

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 25 5/8 to 31 1/2 in*
Door Length: Max. 70 7/8 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 7.72 to 40.8 lb*
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249715
Screw/ Nail: Wood Screw (Included)
