Richelieu WEBKIT1249718 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249718 kits AVENTOS HS top -Canad offers a compact and functional solution for large, single-piece facades, ensuring smooth and effortless door operation. This innovative system is designed for cabinet heights ranging from 350 to 800 mm (13 3/4 in - 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), making it ideal for a variety of applications. With a minimum interior depth of 264 mm (10 3/8 in), it maximizes storage capacity without compromising on aesthetics. The AVENTOS HS top features integrated BLUMOTION damper adjustment for minimal resistance forces, allowing doors to tilt gently above the cabinet for a weightless sensation. The tool-free assembly further simplifies installation, while the 3-dimensional face adjustment ensures precise alignment. Accessing the cabinet interior is unobstructed, as the door opens outside of the movement range, providing complete accessibility without encroaching on workspace. Engineered for versatility, this system accommodates wood doors and wide aluminum-framed doors weighing between 6.06 to 33.6 lb. The pale grey finish adds a modern touch, seamlessly integrating into any design. For thinner facades, consider the 20S42T1 front attachment, available among suggested products.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

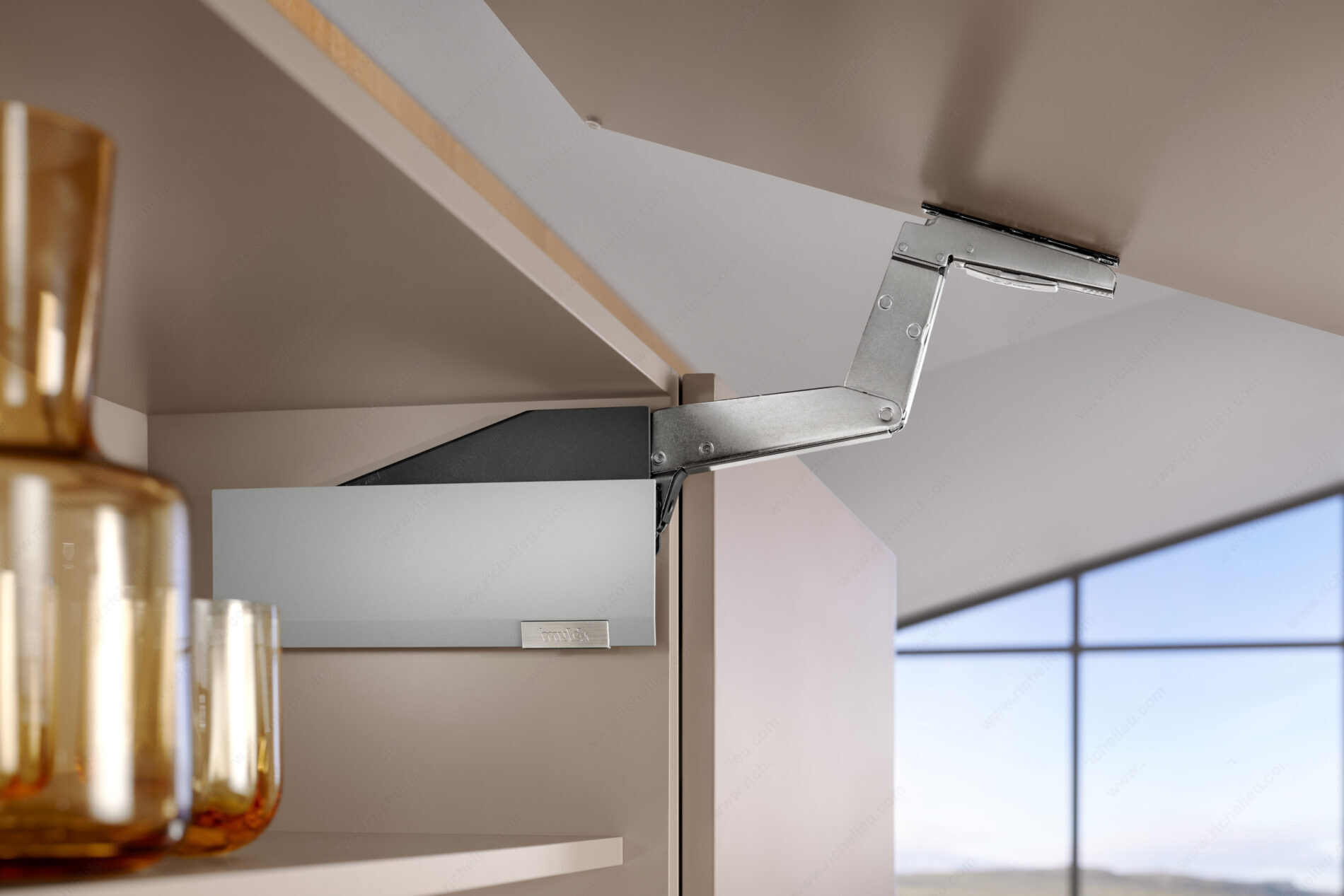

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 18 7/8 to 26 in*
Door Length: Max. 70 7/8 in*
Door Type: Wood Door / Wide Aluminum-Framed Door
Door Weight: 6.06 to 33.6 lb*
Finish: Pale Grey
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249718
Screw/ Nail: Pre-Mounted Euro Screw
