Richelieu WEBKIT1249749 AVENTOS HS Top Kit - USARichelieu WEBKIT1249749 kits AVENTOS HS top -USA - offer a compact and functional solution designed specifically for large, single-piece facades. This innovative mechanism allows for smooth and effortless opening, as the door tilts gently above the cabinet, providing a weightless sensation and unparalleled freedom of movement. With an adjustable cabinet height ranging from 350 mm (13-3/4 in) to 800 mm (31-1/2 in) and a maximum cabinet width of 1828 mm (72 in), this system is ideal for accommodating various door sizes. It supports doors weighing between 5.5 to 27.56 lb and is compatible with both wood and wide aluminum-framed doors. The AVENTOS HS top features integrated BLUMOTION for soft and effortless closing, light operating forces, and a variable stop for customizable use. Additionally, the mechanism’s design allows for complete access to the cabinet interior without encroaching on the workspace, maximizing storage capacity while maintaining ergonomic control. Tool-free assembly and two lift mechanism fixing methods simplify installation, while the 3-dimensional door adjustment ensures perfect alignment. For installations with thin facades, the 20S42T1 front attachment is available among suggested products, enhancing versatility.
kits AVENTOS HS top -USA -
A compact and functional solution for large doors

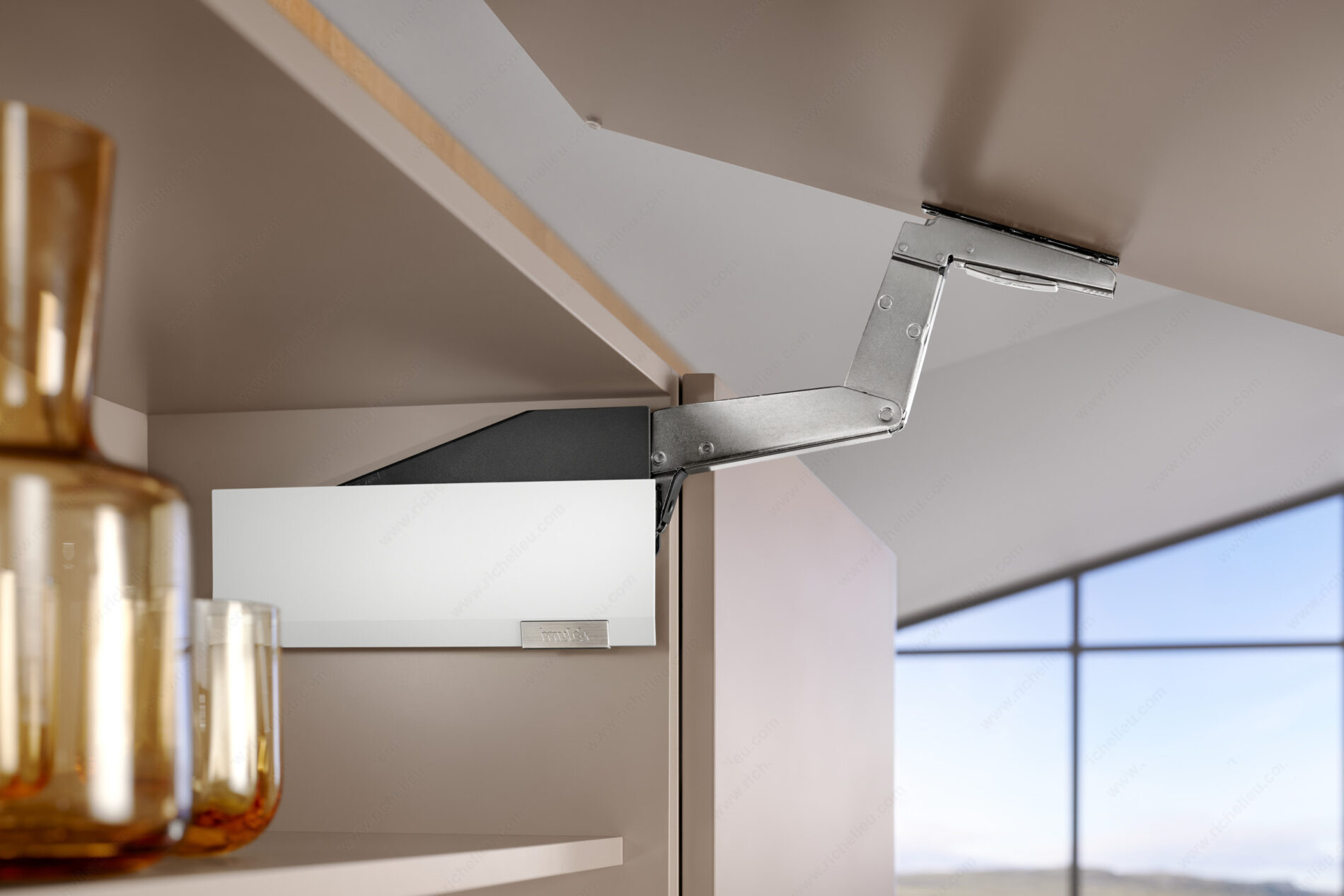

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large, one-part doors
- Cabinet height 350 (13-3/4 in) to 800 (31-1/2 in)
- Cabinet width up to 1828 (72 in)
- Inside depth of at least 264 (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Fixed position of the lift mechanism and door mounting plate
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of the door
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Door Height: 17 5/8 to 21 1/4 in
Door Length: Max. 72 in*
Door Type: Wood Door / Wide Aluminum-Framed Door
Door Weight: 5.5 to 27.56 lb
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Up and Over Opening
Product #: WEBKIT1249749
Screw/ Nail: Wood Screw (Included)
