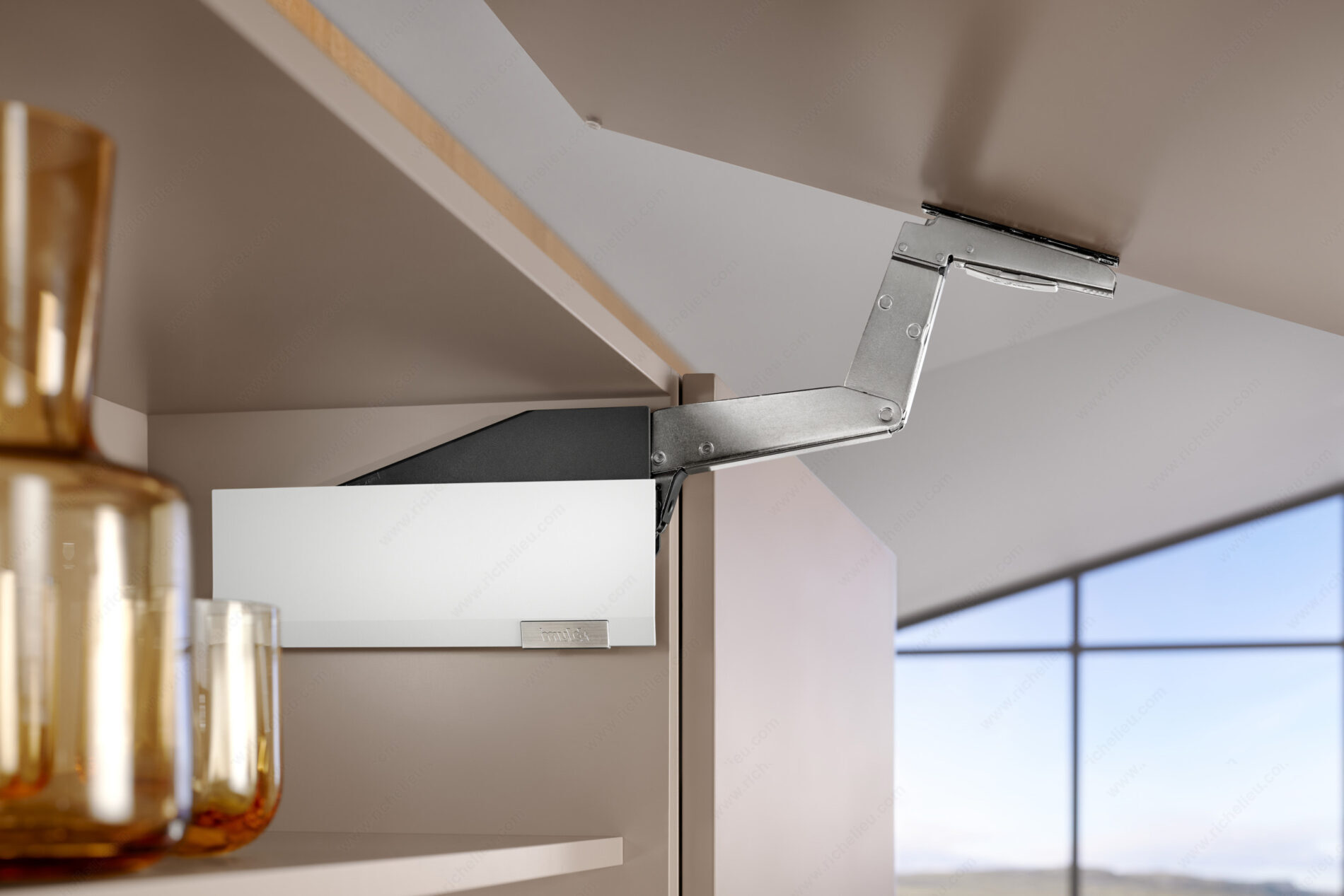

Richelieu WEBKIT1249751 AVENTOS HS Top Kit - USARichelieu WEBKIT1249751 kits AVENTOS HS top -USA - offers an innovative solution for managing large doors with exceptional ease. Tailored for large, single-piece facades, this system allows doors to tilt gracefully above the cabinet, providing a weightless sensation and effortless access to stored items. The AVENTOS HS top is ideal for cabinet heights ranging from 350 mm (13-3/4 in) to 800 mm (31-1/2 in) and can accommodate widths up to 1828 mm (72 in). Designed with integrated BLUMOTION, it ensures soft and seamless closing, while the light operating forces enhance user experience. The variable stop and fixed position of the lift mechanism ensure stability and precision. Tool-free assembly saves time and simplifies installation, and the 3-dimensional adjustment of the door allows for fine-tuning alignment. This system is particularly beneficial in maximizing storage capacity without the obstruction of a cross stabilizer, thus allowing for optimal space management and controlled ergonomics. For thin facades, the optional 20S42T1 front attachment is available. With a sleek silk white finish and compatibility with wood and wide aluminum-framed doors, the AVENTOS HS top system embodies both functionality and aesthetic appeal, making it a valuable addition to any modern cabinetry project.
kits AVENTOS HS top -USA -
A compact and functional solution for large doors
Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large, one-part doors
- Cabinet height 350 (13-3/4 in) to 800 (31-1/2 in)
- Cabinet width up to 1828 (72 in)
- Inside depth of at least 264 (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Fixed position of the lift mechanism and door mounting plate
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of the door
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Door Height: 25 1/2 to 31 3/8 in
Door Length: Max. 72 in*
Door Type: Wood Door / Wide Aluminum-Framed Door
Door Weight: 7.69 to 40.81 lb
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Up and Over Opening
Product #: WEBKIT1249751
Screw/ Nail: Wood Screw (Included)
