Richelieu WEBKIT1249761 AVENTOS HS Top Kit - USARichelieu WEBKIT1249761 kits AVENTOS HS top -USA - delivers an innovative and compact solution for large, single-piece doors, enhancing both functionality and style in any space. Designed specifically for cabinet heights ranging from 350 mm (13-3/4 in) to 800 mm (31-1/2 in) and widths up to 1828 mm (72 in), this system allows for seamless integration into modern cabinetry. The AVENTOS HS top features an easy, up-and-over opening mechanism that tilts the door gently above the cabinet, providing a weightless feel and complete access to the interior without encroaching on workspace. The integrated BLUMOTION ensures soft and effortless closing, while light operating forces and variable stops enhance user experience. With tool-free assembly and symmetrical levers, this lift system simplifies installation and adjustment, accommodating doors weighing between 5.5 to 27.56 lb. It is compatible with narrow aluminum-framed doors up to 20 mm and can be further optimized with the 20S42T1 front attachment for thin facades. The AVENTOS HS top maximizes storage capacity while maintaining controlled ergonomics, making it an ideal choice for any professional or discerning homeowner looking to elevate their cabinetry.
kits AVENTOS HS top -USA -
A compact and functional solution for large doors

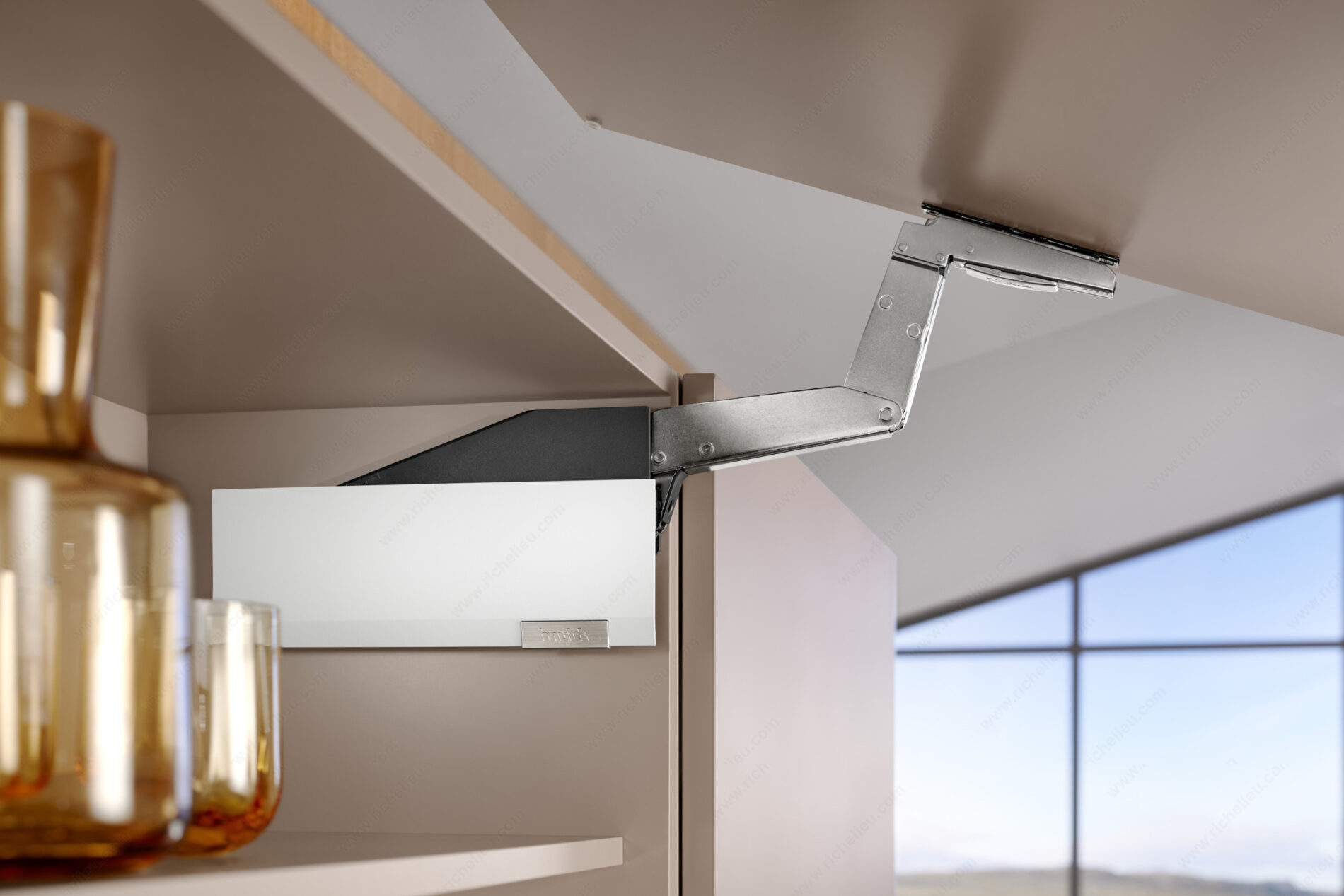

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large, one-part doors
- Cabinet height 350 (13-3/4 in) to 800 (31-1/2 in)
- Cabinet width up to 1828 (72 in)
- Inside depth of at least 264 (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Fixed position of the lift mechanism and door mounting plate
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of the door
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Door Height: 17 5/8 to 21 1/4 in
Door Length: Max. 72 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 5.5 to 27.56 lb
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Up and Over Opening
Product #: WEBKIT1249761
Screw/ Nail: Wood Screw (Included)
