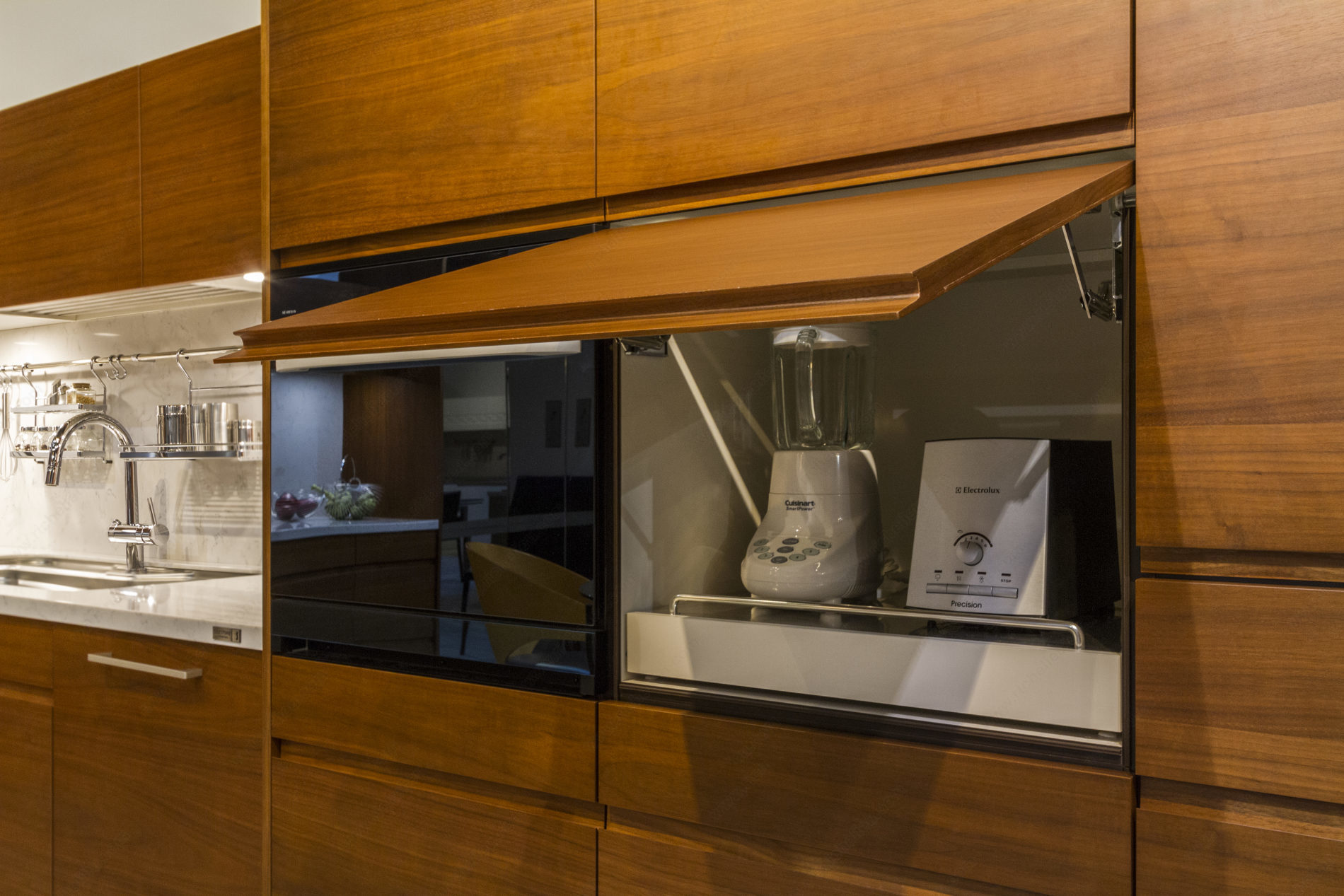

Richelieu WEBSO1248094 IF-360 Soft-Closing Inset Receding Door is designed for upward-opening cabinet doors, providing an elegant solution for spaces like coffee bars and pull-out appliances. This innovative door system features a soft-close mechanism that prevents slamming, with adjustable closing speed for a tailored experience. When opened, the door pockets neatly into the cabinet, ensuring a clean look and unobstructed access. This model has been rigorously tested, successfully passing 30,000 open and close cycles, ensuring durability and reliability in everyday use. It is designed for frameless cabinets, accommodating door thicknesses from 23/32 to 1 3/16 inches and supporting door weights between 5.95 to 11 pounds. Crafted with a zinc finish, the mechanism incorporates ball bearing technology for smooth operation. The product's dimensions include a length of 19 inches and a maximum door width of 47 1/4 inches, making it a versatile addition to various cabinetry designs. Included screws and nails streamline installation, while the torque range of 88.2 to 309 lb ensures a secure fit. The Richelieu IF-360 is a special online order item, shipped via UPS, providing a convenient and efficient solution for modern cabinetry needs.
IF-360 Soft-Closing Inset Receding Door
Application: Coffee Bar, Pull Out Appliance
Bearing Type: Ball Bearing
Cabinet Model: Frameless
Door Thickness: 23/32 to 1 3/16 in*
Door Weight: 5.95 to 11 lb*
Finish: Zinc
Length: 19 in
Max Door Width: 47 1/4 in*
Motion Technology: Soft-Close
Opening Types: Lift-Up Opening
Packaging format: Per unit
Power Factor: 800 to 2 800
Product #: IF-H360W-19
Production Time: Special online order - 14 days
Screw/ Nail: Included
Torque: 88.2 to 309 lb*
