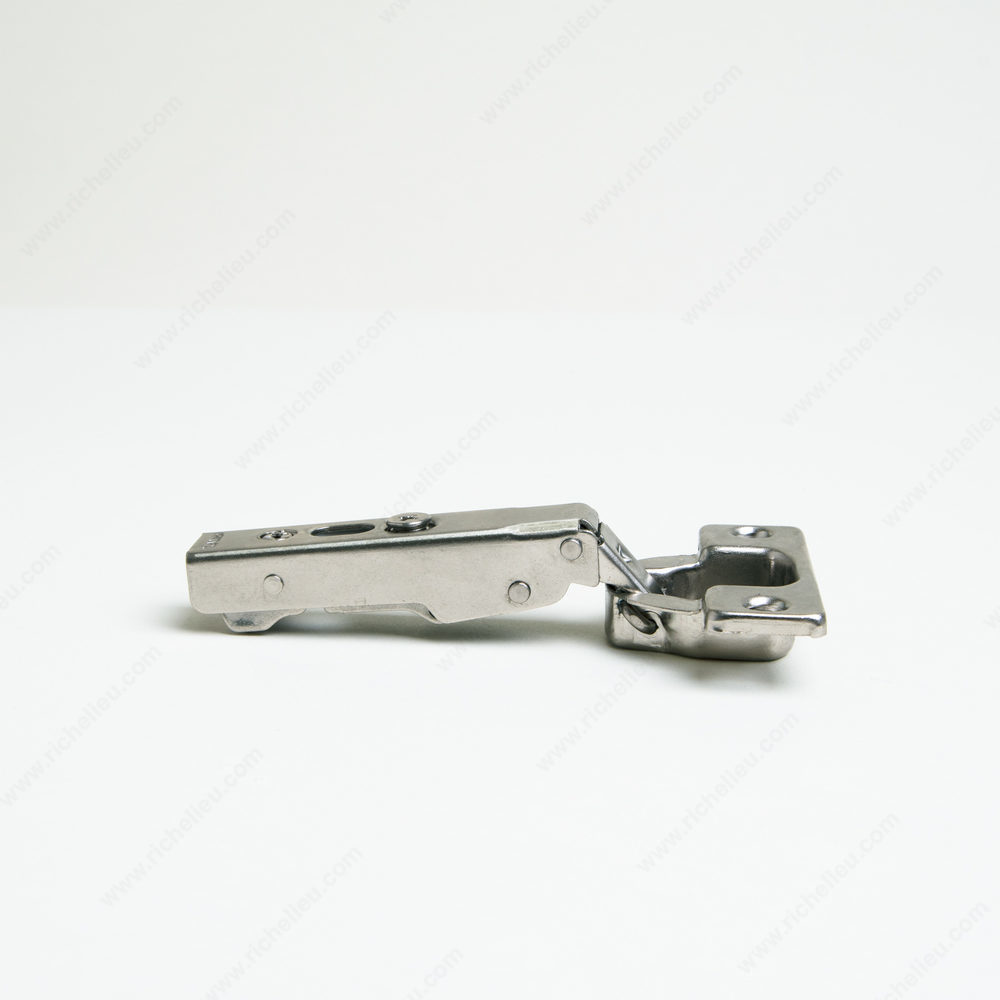

Richelieu WEBSO1248261 Olympia Hinge offers a sophisticated solution for enhancing the functionality and aesthetics of your cabinetry. This hinge is designed with a 5-speed adjustable damper, allowing for smooth and controlled door operation, while the 3-way adjustment feature ensures precise alignment after installation. With a robust load capacity of 6 kg per two hinges, it provides reliable support for both wood and glass doors. Compatible with wood door thicknesses ranging from 15 to 20 mm and glass door thicknesses of 4 to 6 mm, the Olympia Hinge is versatile enough to suit various applications. Designed for frameless cabinet types, it supports full overlay door positions, making it an ideal choice for modern kitchen designs. The hinge opens up to 105°, allowing for easy access, and features a spring closing mechanism that ensures doors close softly and securely. The screw-on fixing type simplifies installation, while the milling depth of 7/16 in and diameter of 1 3/8 in facilitate a seamless fit. Whether you're a building professional or a knowledgeable homeowner, the Richelieu Olympia Hinge combines practicality with elegant design, making it a standout choice for any project.
Olympia Hinge
Brand: Sugatsune
Cabinet Type: Frameless
Closing Mechanism: Self-Closing
Door Position: Full Overlay
Door Thickness: 19/32 to 25/32 in*
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Load Capacity: 13.2 to 22 lb*
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 3/4 in*
Product #: 360-C26-19T
Production Time: Special Online Order
Use Type: Standard Door, Glass
