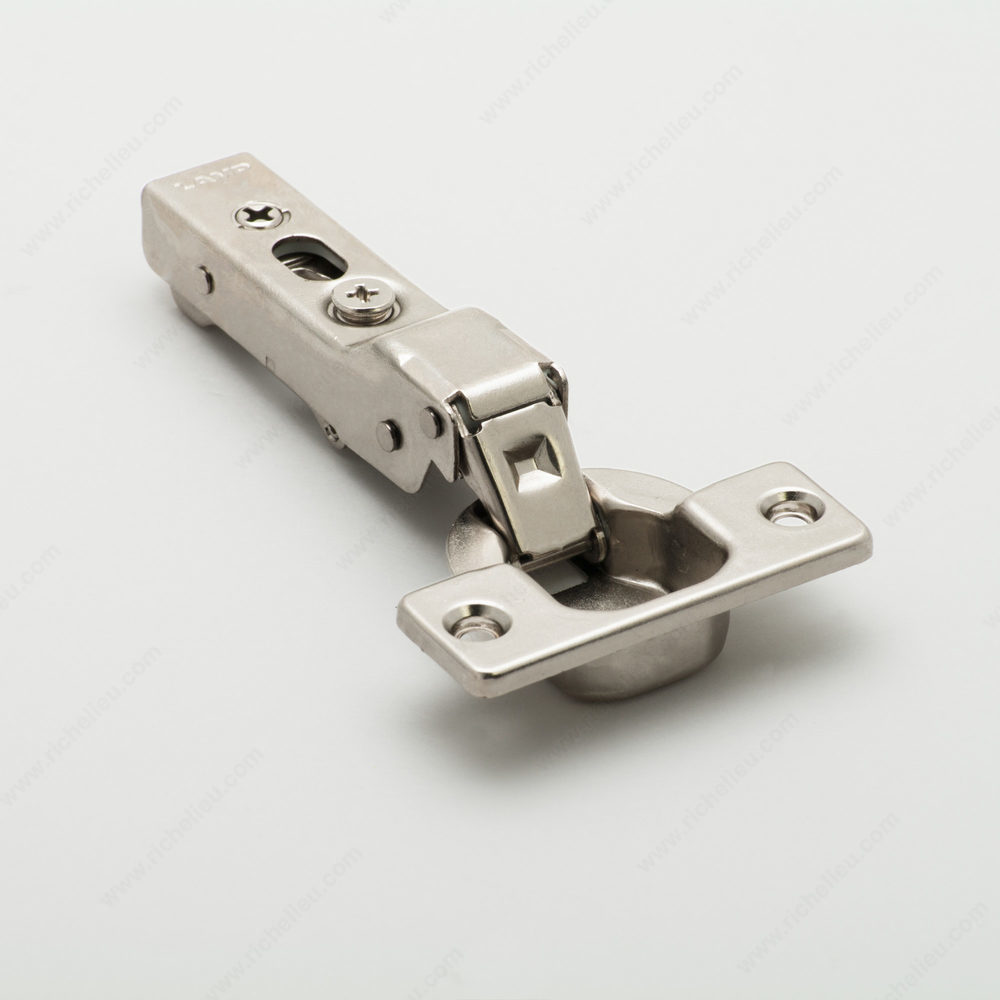

Richelieu WEBSO1248267 Olympia Hinge is designed for versatility and reliability, making it an excellent choice for both wood and glass doors. This hinge features a 5-speed adjustable damper that ensures smooth and controlled door operation, while its 3-way adjustment capability allows for precise alignment even after installation. With a robust load capacity of 6 kg per two hinges, it offers durability for standard door applications. The Olympia hinge is compatible with wood doors ranging from 15 to 20 mm in thickness and glass doors between 4 to 6 mm, making it suitable for frameless cabinet designs. It supports an impressive hinge opening angle of +105°, facilitating easy access and enhanced functionality. Installation is straightforward with a screw-on fixing type, ensuring a secure fit. The milling depth of 7/16 inches and diameter of 1 3/8 inches provide additional installation flexibility. With an overlay of 9/16 inches, this hinge is tailored for overlay door positions, seamlessly integrating into your cabinetry. Whether you're a building professional or a knowledgeable homeowner, the Richelieu Olympia Hinge is a reliable choice that combines advanced features with user-friendly installation. Experience the quality and performance that Richelieu products are renowned for.
Olympia Hinge
Brand: Sugatsune
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Door Position: Overlay
Door Thickness: 19/32 to 25/32 in*
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Load Capacity: 13.2 to 22 lb*
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 9/16 in*
Product #: 360-26-14T
Production Time: Special Online Order
Use Type: Standard Door, Glass
