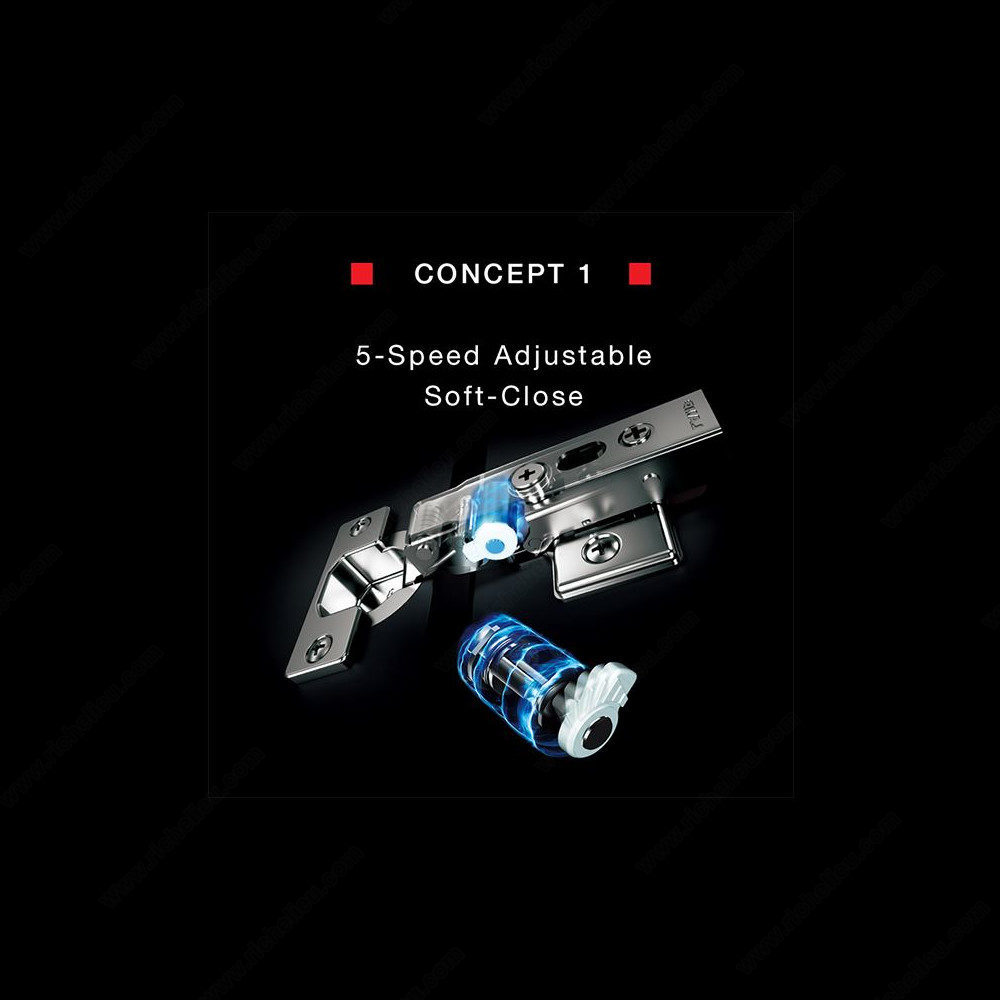

Richelieu WEBSO1248269 Olympia Hinge is engineered to provide exceptional functionality for both wood and glass doors. This versatile hinge features a 5-speed adjustable damper, allowing for customized door movement that suits your specific needs. With a 3-way adjustment capability post-installation, it ensures a perfect fit and smooth operation every time. Designed for frameless cabinet applications, the Olympia Hinge supports wood door thicknesses of 15-20 mm and glass door thicknesses of 4-6 mm. With a load capacity of 6 kg per pair of hinges, it can handle a variety of door weights with ease. The hinge opens to an impressive angle of +105°, offering excellent access while maintaining a sleek aesthetic. Installation is straightforward with a screw-on fixing type, and the hinge employs a push-to-open mechanism for added convenience. The milling depth of 7/16 in and diameter of 1 3/8 in ensures a seamless fit into your cabinetry, while the overlay of 9/16 in provides a clean, finished look. Ideal for standard doors and glass applications, the Richelieu Olympia Hinge is a reliable choice for professionals and discerning homeowners alike, marrying form with function in every installation.
Olympia Hinge
Brand: Sugatsune
Cabinet Type: Frameless
Closing Mechanism: Self-Opening PUSH
Door Position: Overlay
Door Thickness: 19/32 to 25/32 in*
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Load Capacity: 13.2 to 22 lb*
Mechanism: Push-to-Open
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 9/16 in*
Product #: 360-U26-14T
Production Time: Special Online Order
Use Type: Standard Door, Glass
