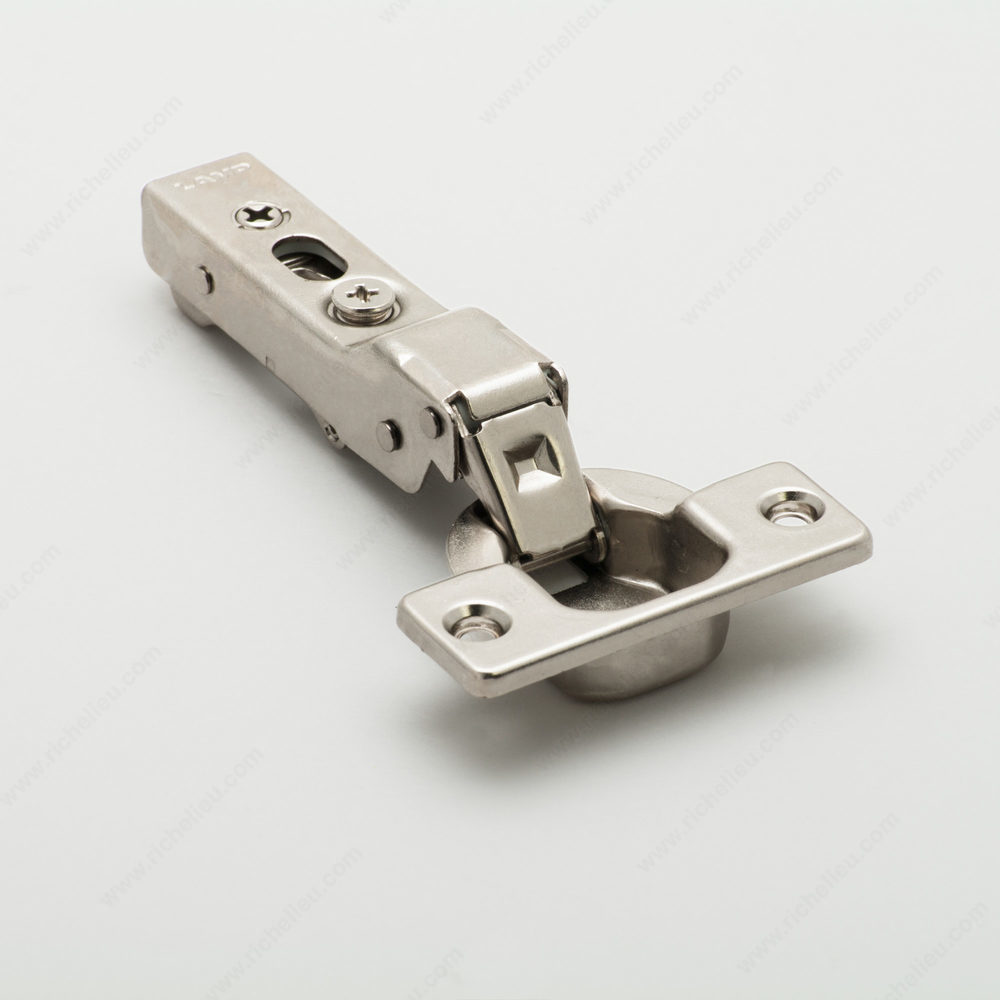

Richelieu WEBSO1248272 Olympia Hinge offers an exceptional blend of functionality and versatility for modern cabinetry. Designed to accommodate both wood and glass doors, this hinge features a robust 5-speed adjustable damper, allowing seamless control over door motion. With a load capacity of 6kg per two hinges, it ensures reliable support while maintaining a sleek aesthetic. The Olympia hinge is engineered for easy installation, supporting wood door thicknesses of 15-20 mm and glass door thicknesses of 4-6 mm. Its 3-way adjustment capability allows for precise alignment once the door is installed, facilitating hassle-free adjustments for optimal performance. The hinge opens to an impressive angle of +85°, providing full access to cabinet interiors. Ideal for frameless cabinet types, the Olympia hinge employs a screw-on fixing method, which promotes stability and ease of use. With a milling depth of 7/16 in and milling diameter of 1 3/8 in, it accommodates various design requirements while ensuring a secure fit. The spring-closing mechanism adds an extra layer of convenience, making it an excellent choice for both standard and glass doors. Elevate your cabinetry with the Richelieu Olympia Hinge, where innovation meets reliability.
Olympia Hinge
Brand: Sugatsune
Cabinet Type: Frameless
Closing Mechanism: Self-Closing
Door Position: Overlay
Door Thickness: 19/32 to 25/32 in*
Fixing Type: Screw-On
Hinge Opening Angle: +85°
Load Capacity: 13.2 to 22 lb*
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 9/16 in*
Product #: 360-C26-14T85
Production Time: Special Online Order
Use Type: Standard Door, Glass
