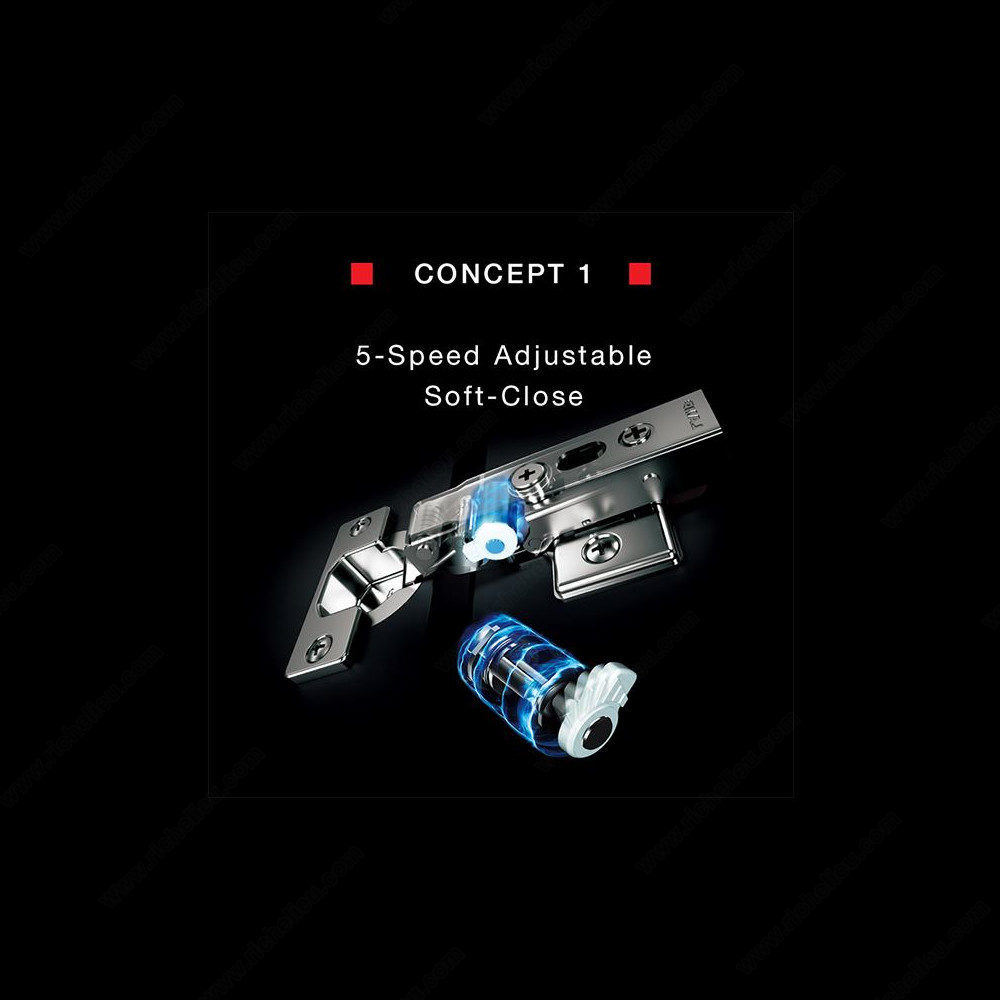

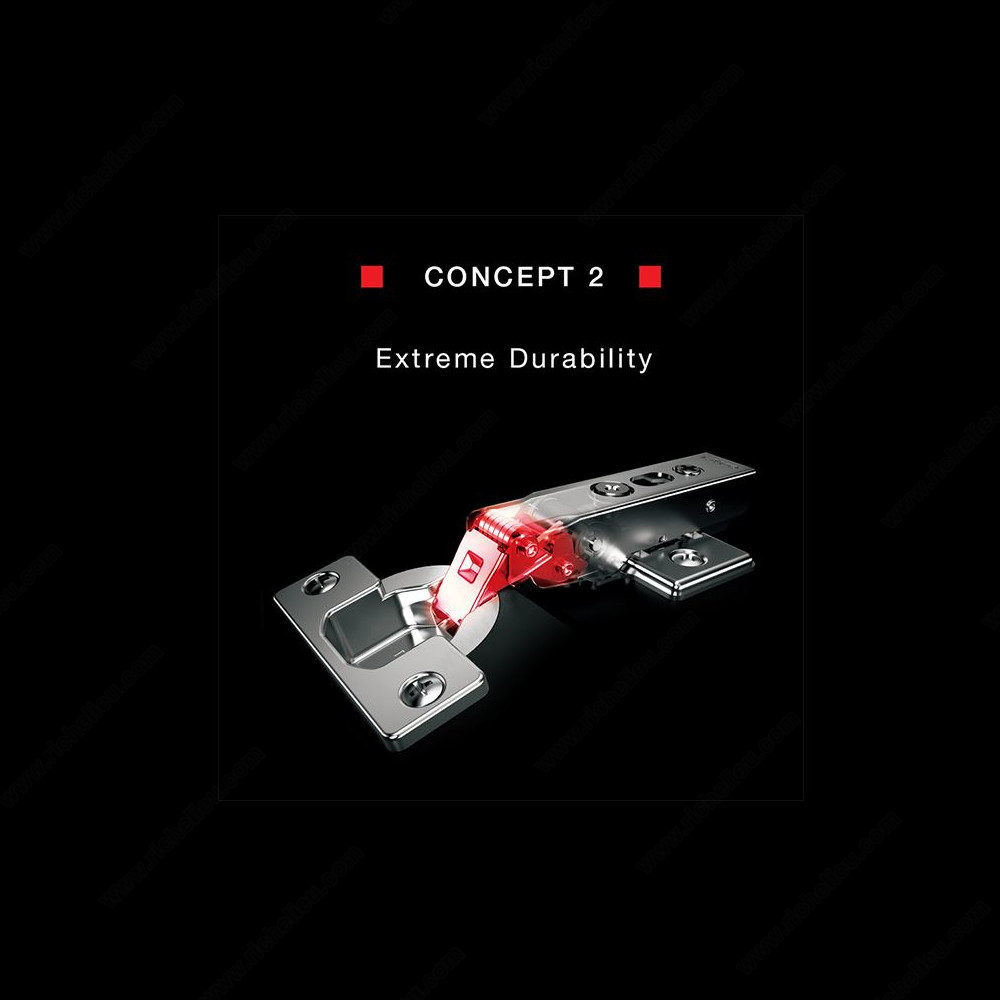

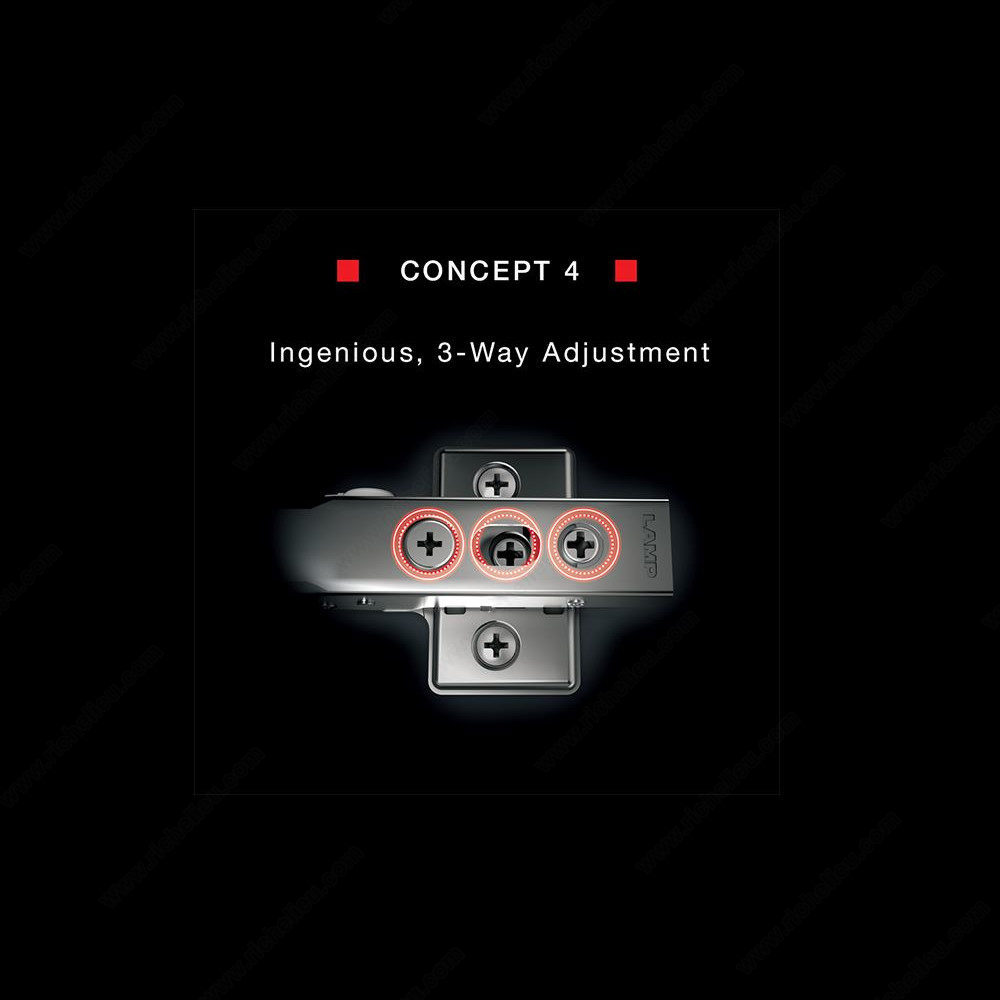

Richelieu WEBSO1248283 Olympia Hinge - Thick Doors offers a sophisticated solution for enhancing the functionality of both wood and glass doors in frameless cabinetry. This hinge is engineered with a 5-speed adjustable damper that allows for precise control over the door's closing speed, ensuring a smooth and quiet operation every time. Once installed, the hinge provides 3-way adjustment capabilities, making it easy to achieve the perfect fit. Designed to accommodate a load capacity of 6 kg per pair of hinges, this product is suitable for thicker doors, with a wood door thickness range of 15-20 mm and a glass door thickness of 4-6 mm. With an impressive hinge opening angle of +100°, the Olympia hinge allows for full overlay installations, providing maximum accessibility while maintaining a sleek appearance. The soft-closing mechanism enhances durability and user experience by preventing slamming. This hinge features screw-on fixing for secure installation and has specific milling requirements, with a milling depth of 19/32 in and a diameter of 1 9/16 in. Experience the reliability and versatility of the Richelieu Olympia hinge, an essential component for modern cabinetry solutions.

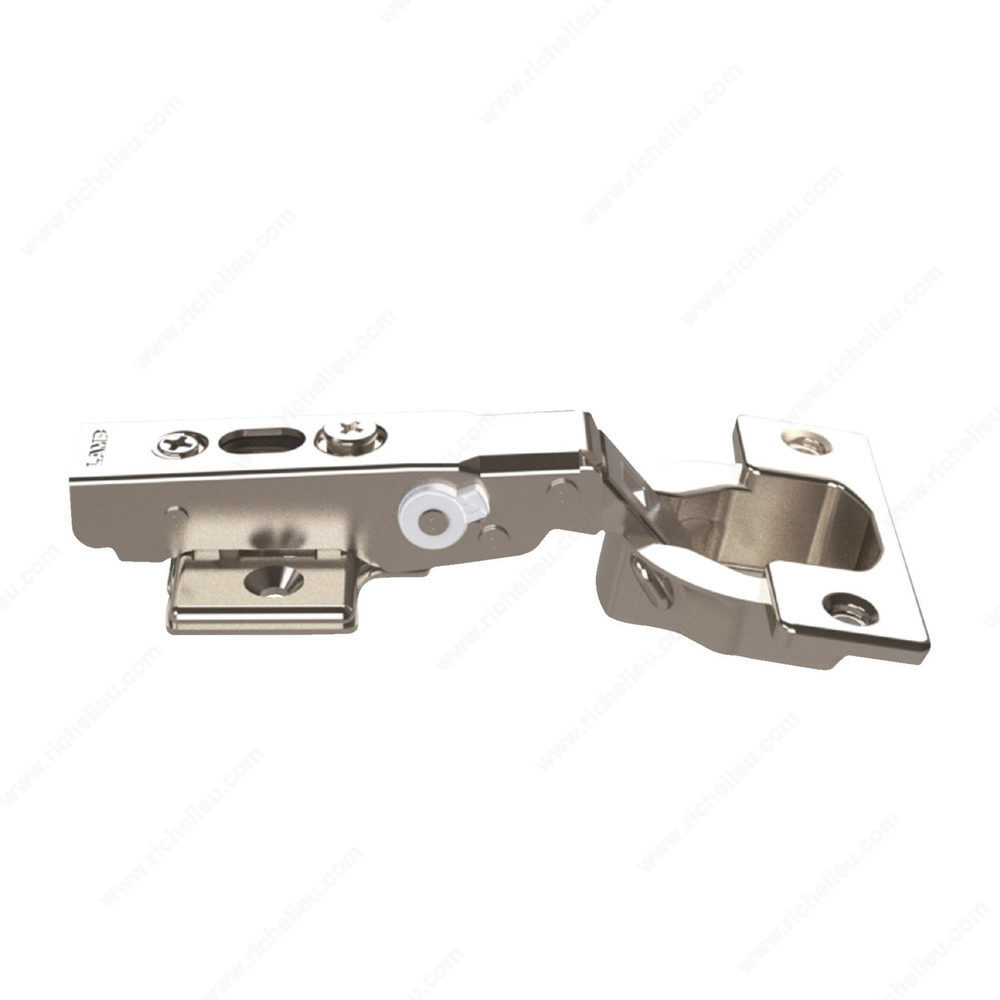

Olympia Hinge - Thick Doors
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: 1 3/16 in*
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Load Capacity: 19.8 to 33.1 lb*
Mechanism: Soft-Closing
Milling Depth: 19/32 in*
Milling Diameter: 1 9/16 in*
Overlay: 1 1/32 in*
Product #: H360-D26-26T
Production Time: Special Online Order
