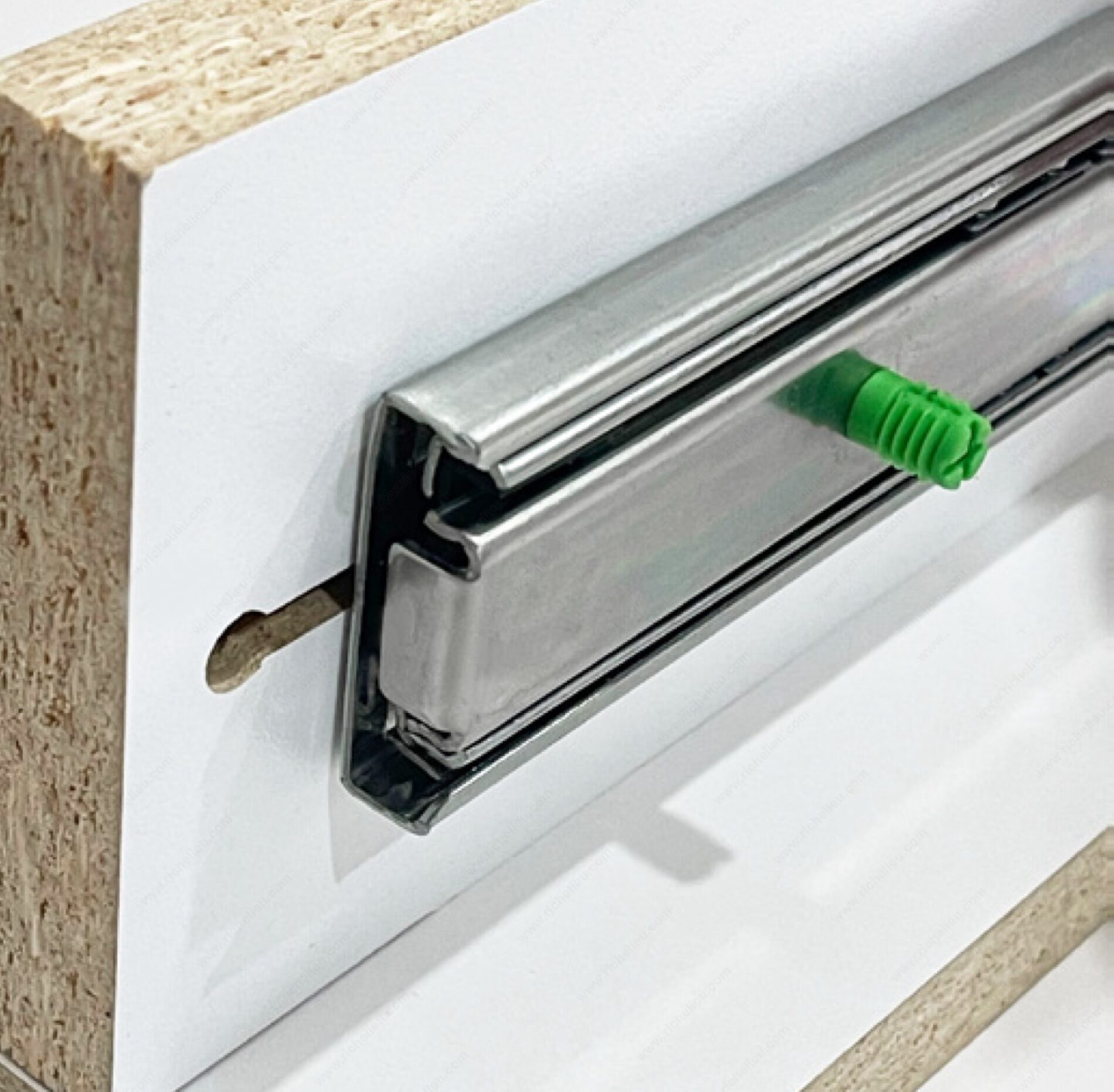

Richelieu WEBSO1248503 ONE-CLICK Ball Bearing Slide - 100 lb (45 kg) offers a seamless and efficient solution for drawer installations. Designed with Lockdowel's innovative E-clips fastening technology, these slides ensure a tool-less setup that simplifies the assembly process. The tool-less green barbs align effortlessly with pre-drilled 8 mm holes in the side panels of the drawer box-just line them up and press down, eliminating the need for screws. These slides are perfect for flat-pack, on-site kitchen assembly, enhancing logistical efficiency and reducing transport costs. Once the drawer is added to the cabinet, the pre-installed channel-lock hardware allows the slide to drop smoothly into the slots on the edge panels, ensuring a secure fit. With a full extension feature and a load capacity of up to 100 lbs, this slide is built to handle a variety of drawer loads. The soft-close motion technology adds a touch of elegance to your cabinetry by preventing slamming, while the ANSI and BIFMA certifications ensure quality and reliability. Measuring 18 inches in length, 1 13/16 inches in height, and 1/2 inch in width, the Richelieu WEBSO1248503 is an essential component for modern cabinetry solutions.

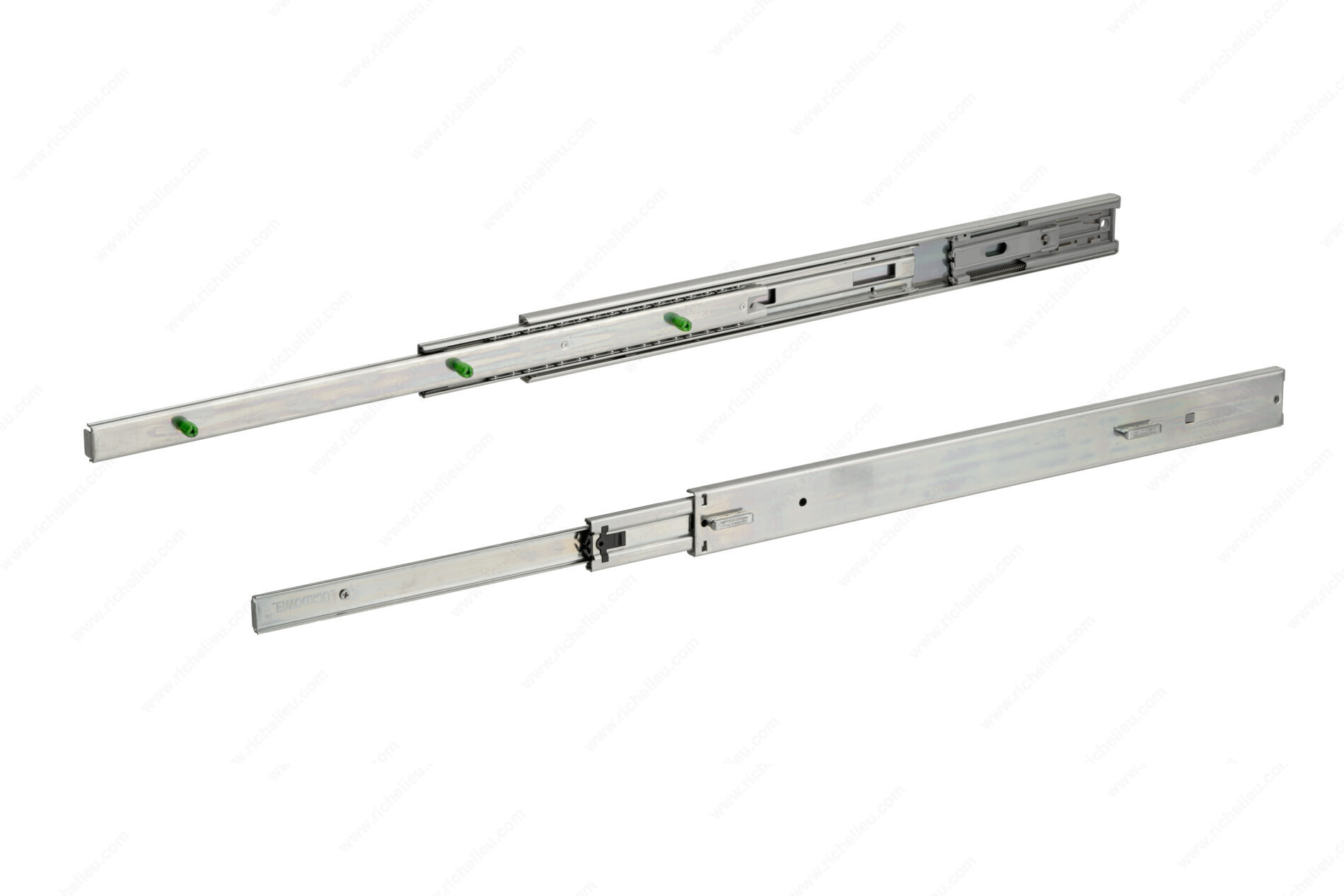

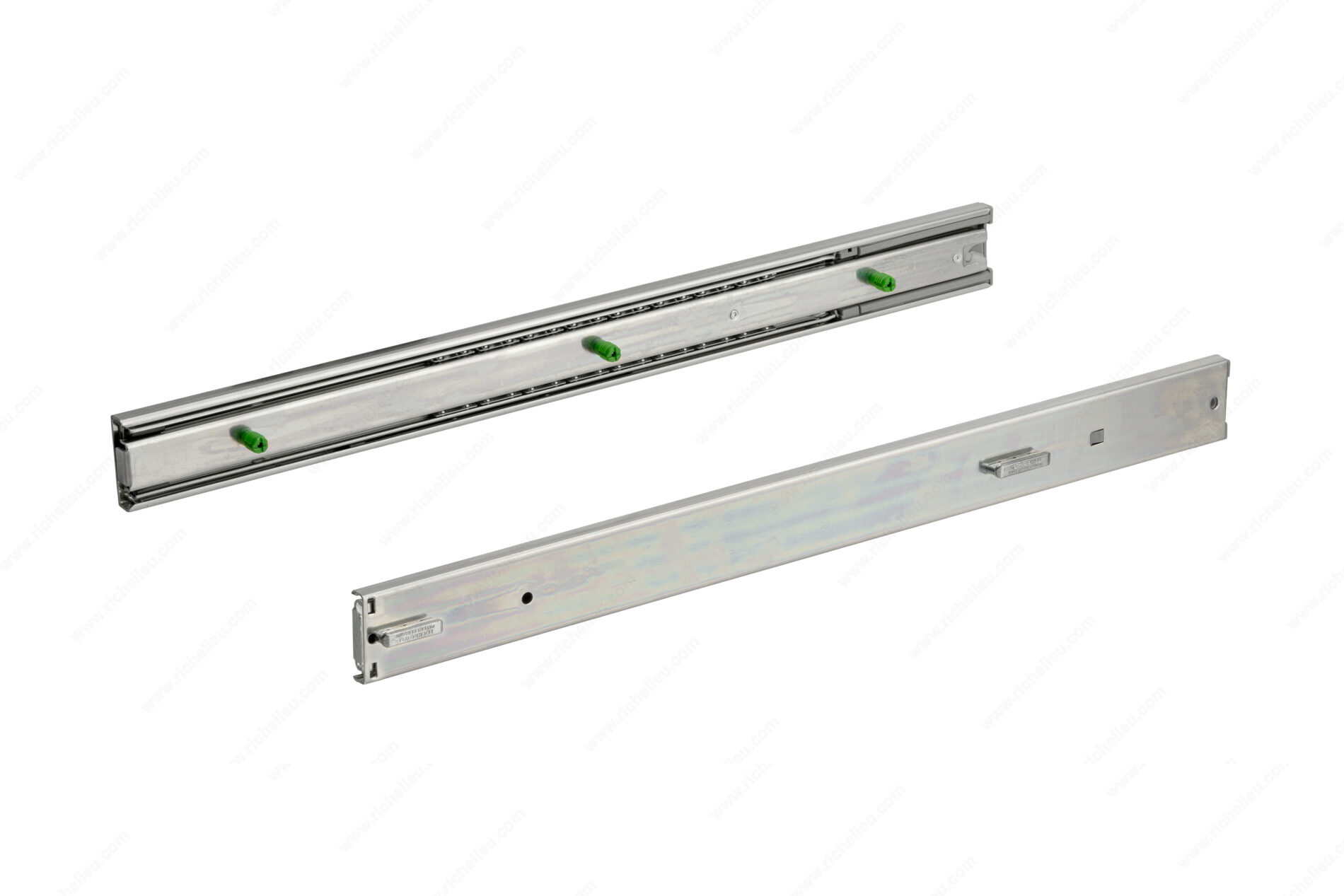

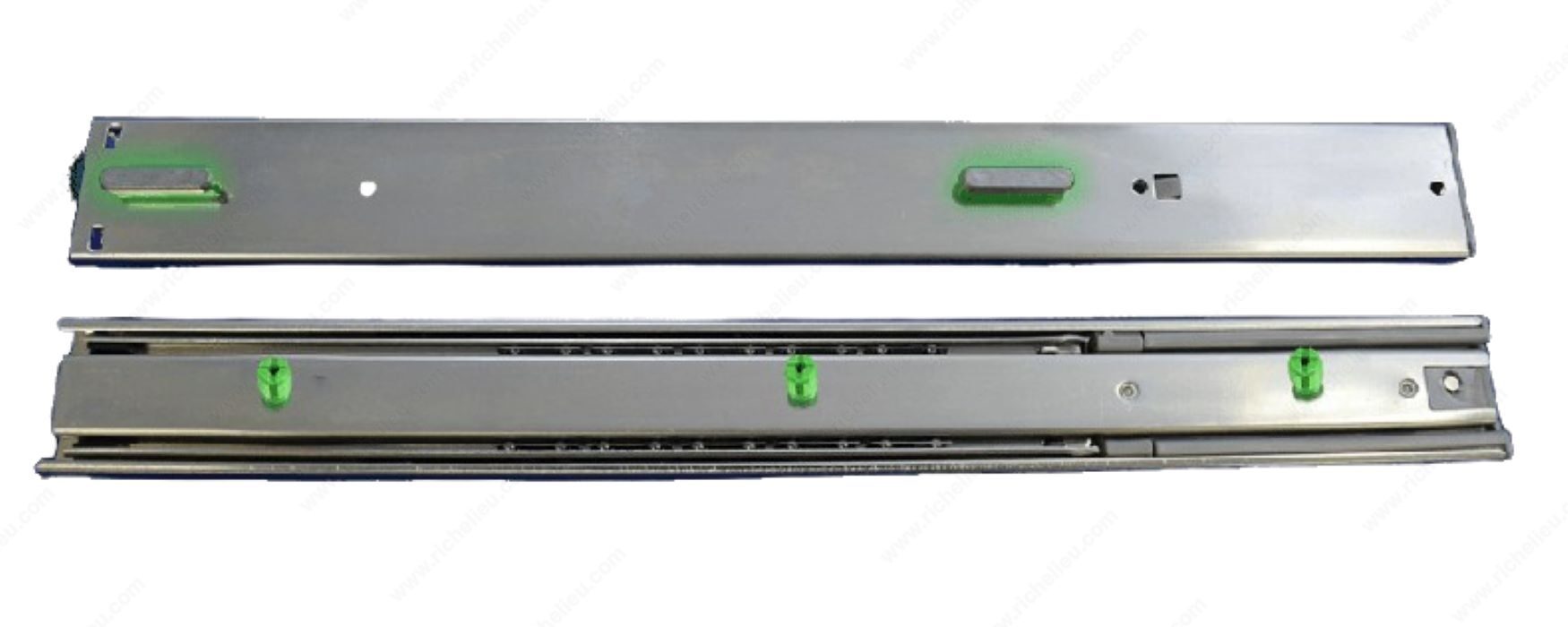

One-Click Ball Bearing Slide - 100 lb (45 kg)
Bearing Type: Ball Bearing
Brand: Lockdowel
Height: 1.81 in*
Length: 18 in
Load Capacity: 99.2 lb*
Motion Technology: Soft-Close
Product #: LDSMSC-45-18
Production Time: Special Online Order
Side: Pair
Slide Extension: Full Extension
Standards and Certifications: ANSI, BIFMA
Width: 0.5 in*
