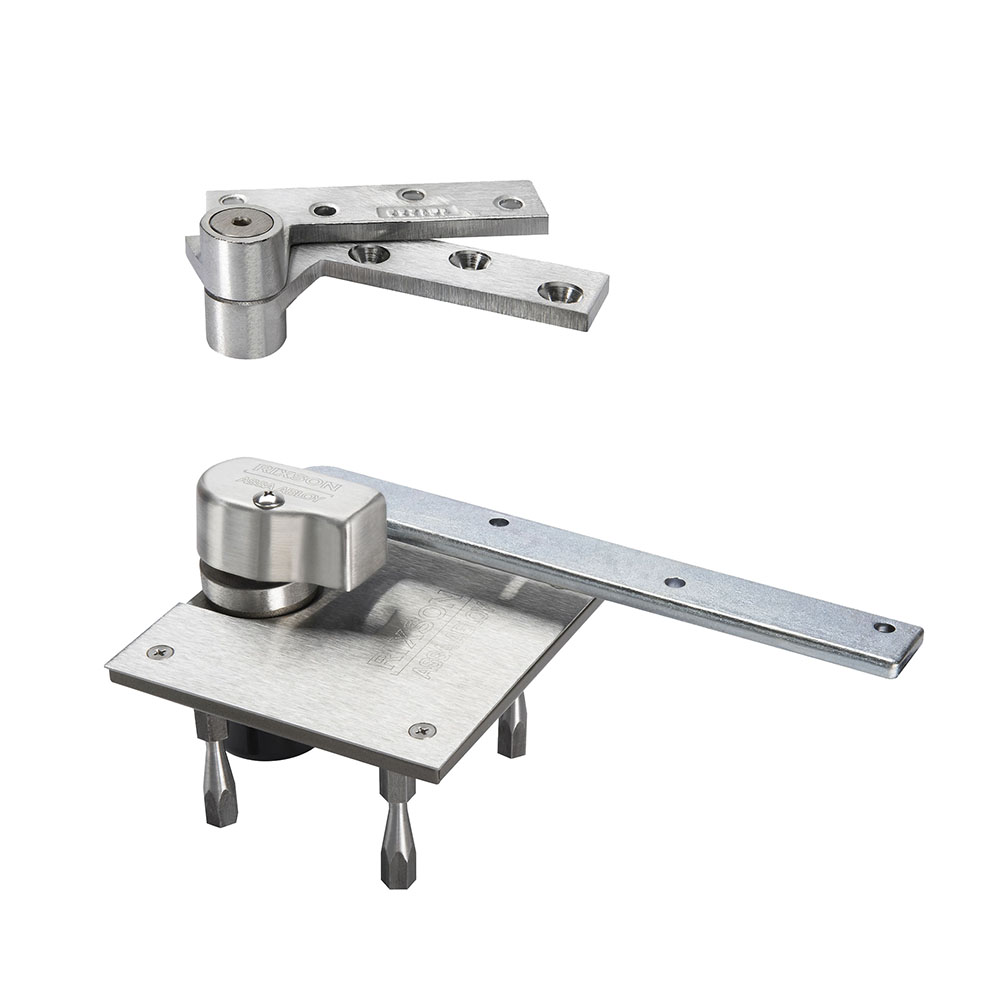

Rixson 117-1/2 RH 626 3/4" Offset Pivot Set offers a robust solution for hanging interior and exterior doors weighing up to 650 lbs. This offset pivot set includes a standard 180 top pivot, ensuring smooth operation while allowing doors to swing a full 180 degrees, depending on trim allowances. Designed for right-handed doors, the 3/4" offset is measured from the centerline of the pivot to the face of the door, optimizing door weight distribution and enhancing performance, especially for taller doors. Crafted from durable brass or bronze, this pivot set is finished in a sleek satin chromium, adding an elegant touch to any commercial setting. The bottom pivot is conveniently mortised into the floor, ensuring stability and proper alignment, particularly when used with intermediate pivots for larger door installations. Ideal for commercial environments, the Rixson 117-1/2 also supports electrified options for power transfer and monitoring, making it versatile for modern applications. With a limited two-year warranty backing its quality, this pivot set is a reliable choice for professionals seeking durable and efficient door hardware solutions.
3/4" Offset Pivot Set
3/4" Offset Pivot, Includes 180 Top Pivot, Right-Handed, Satin Chromium Plated
Offset hung pivot set. Standard top pivot 180 included. Bottom pivot mortised into floor. For interior or exterior doors weighing up to 650 lbs. (with intermediate pivot, not included). Maximum door width 4 Ft. 0" Handed. 3/4" offset (measured from centerline of pivot to face of door). Doors will swing 180 Degrees, trim permitting.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
