Rixson 117-1/4 RH 626 3/4" Offset Pivot Set offers a robust and reliable solution for hanging interior doors weighing up to 250 lbs. This set includes a standard 180 top pivot and features a right-handed configuration, ensuring compatibility with your door's design. The satin chromium plating not only enhances durability but also provides a sleek, matte silver finish that fits seamlessly into any commercial environment. Designed with a 3/4" offset, measured from the centerline of the pivot to the door face, this pivot set promotes better door weight distribution, making it ideal for taller doors. The bottom pivot is mortised into the side jamb, allowing for a cleaner installation. For optimal performance, intermediate pivots may be added to ensure alignment and support. This pivot set is part of the Rixson Pivots series and is engineered for commercial use, guaranteeing longevity and reliability. With a limited two-year warranty, you can be confident in your investment. The Rixson 117-1/4 RH is easy to install and can be shipped via UPS, making it a convenient choice for building professionals and knowledgeable homeowners alike. Choose this pivot set to elevate your door hardware solutions with efficiency and style.

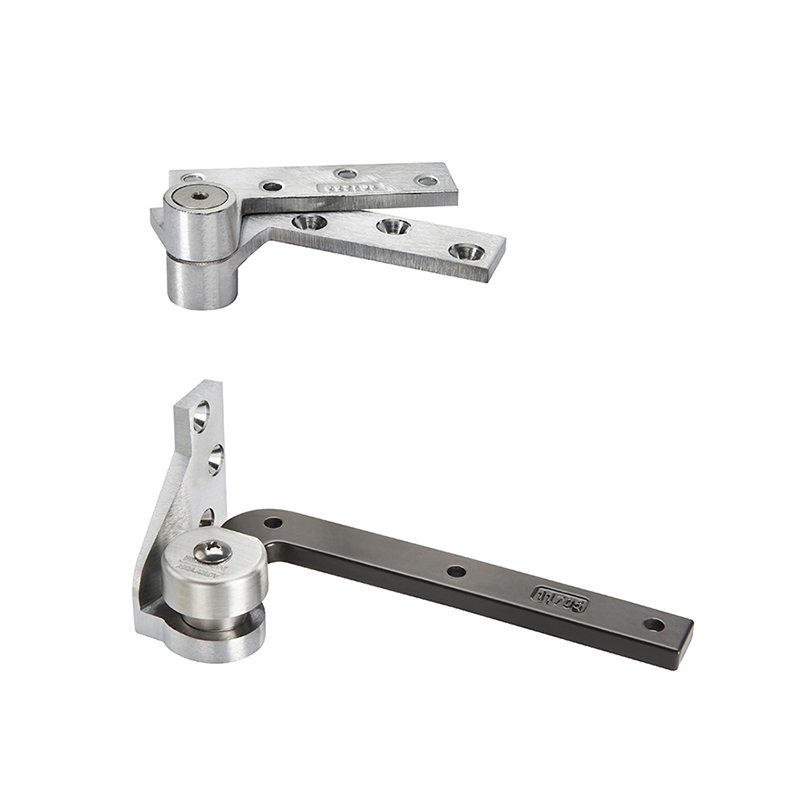

3/4" Offset Pivot Set
3/4" Offset Pivot, Includes 180 Top Pivot, Right-Handed, Satin Chromium Plated
Offset hung pivot set. Standard top pivot 180 included. Bottom pivot mortised into side jamb. For interior doors weighing up to 250 lbs. (with intermediate pivot, not included.) Maximum door width 3 Ft. 6" Handed. 3/4" offset (measured from centerline of pivot to face of door).
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
Upc: 49306782807
