Rixson 117 RH 613 3/4" Offset Pivot Set offers a robust solution for hanging interior doors with a weight capacity of up to 300 lbs. This right-handed pivot set features a standard 180 top pivot and is designed for doors with a maximum width of 3 feet 6 inches. The 3/4" offset, measured from the centerline of the pivot to the face of the door, enables smooth operation and a clean aesthetic. Crafted from durable bronze with a dark oxidized satin bronze oil-rubbed finish, the Rixson 117 is built to withstand the demands of commercial use while providing superior door weight distribution. The offset pivot design not only enhances stability but also accommodates taller doors effortlessly. For optimal installation, consider using intermediate pivots, which help align the door and ensure proper functionality of bottom offset pivots or floor closers. Additionally, electrified intermediate pivots can be integrated for power transfer and door position monitoring, enhancing the overall security and efficiency of your access system. With a limited two-year warranty, this pivot set promises reliability and performance in various commercial applications. Elevate your door hardware solutions with the Rixson 117 Offset Pivot Set, where quality meets functionality.

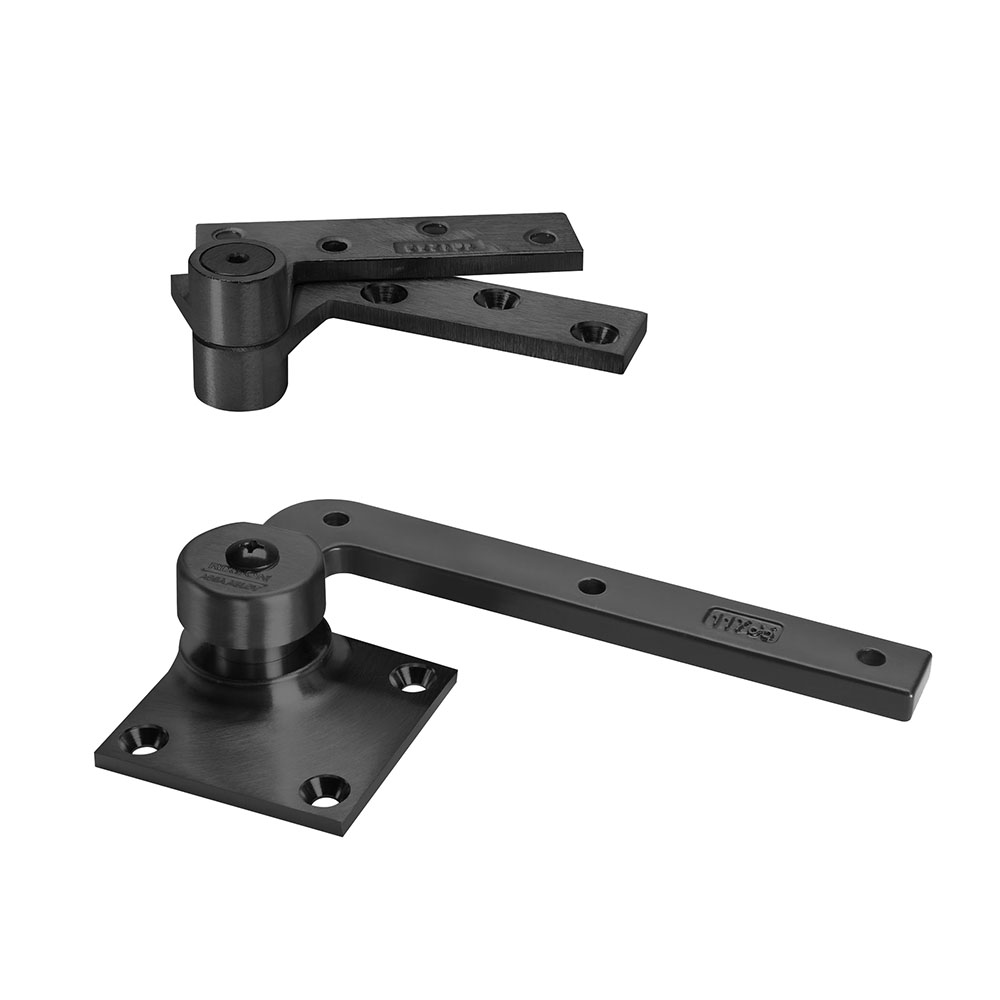

3/4" Offset Pivot Set
3/4" Offset Pivot, Includes 180 Top Pivot, Right-Handed, Dark Oxidized Satin Bronze Oil Rubbed
Offset hung pivot set. Standard top pivot 180 included. Bottom pivot mortised into floor. For interior doors weighing up to 300 lbs. (with intermediate pivot, not included.) Maximum door width 3 Ft. 6" Handed. 3/4" offset (measured from centerline of pivot to face of door). Doors will swing 180 Degrees, trim permitting.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Bronze
Commercial Residential: Commercial
Finish: 613/US10B
Finish Family: Dark Bronze
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
Upc: 49306782838
