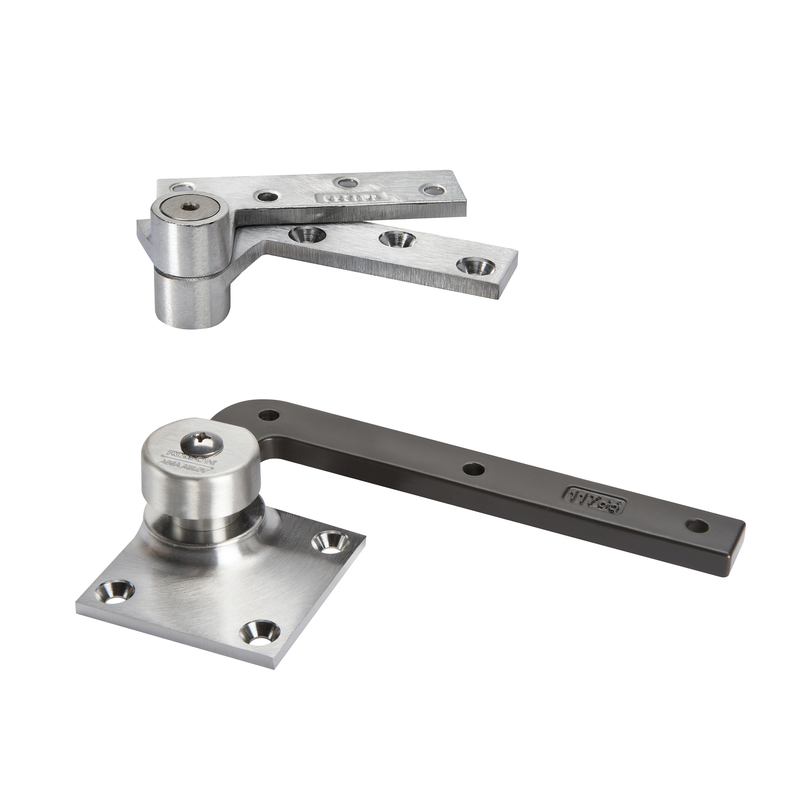

Rixson 117 RH 619 3/4" Offset Pivot Set offers a reliable solution for hanging heavy interior doors with ease. This offset pivot set includes a standard 180 top pivot and is designed for right-handed doors, accommodating weights of up to 300 lbs when paired with an intermediate pivot (not included). With a maximum door width of 3 feet 6 inches and a measured offset of 3/4" from the centerline of the pivot to the door face, it allows doors to swing a full 180 degrees, provided that trim permits. Constructed from durable brass or bronze and finished in a satin nickel plated clear coat (619/US15), this pivot set not only ensures longevity but also adds a touch of modern elegance to any commercial space. The offset design enhances door weight distribution, making it suitable for taller doors. Additionally, intermediate pivots are available to ensure alignment and facilitate proper installation with floor closers or bottom offset pivots. For enhanced functionality, electrified intermediate pivots can be utilized for power transfer and door position monitoring. Supported by a two-year limited warranty, the Rixson 117 RH 619 is a dependable choice for professionals seeking quality and performance in door hardware.
3/4" Offset Pivot Set
3/4" Offset Pivot, Includes 180 Top Pivot, Right-Handed, Satin Nickel Plated Clear Coated
Offset hung pivot set. Standard top pivot 180 included. Bottom pivot mortised into floor. For interior doors weighing up to 300 lbs. (with intermediate pivot, not included.) Maximum door width 3 Ft. 6" Handed. 3/4" offset (measured from centerline of pivot to face of door). Doors will swing 180 Degrees, trim permitting.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 619/US15
Finish Family: Matte Silver
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
