Rixson 117 X 1-1/2OS RH 626 1-1/2" Offset Pivot Set is engineered for optimal door functionality and durability. This offset hung pivot set features a standard 180-degree top pivot, ensuring smooth movement for interior doors weighing up to 300 lbs, when used with an intermediate pivot (not included). Designed for doors with a maximum width of 3 ft. 6 in., this right-handed pivot provides a 1-1/2" offset, measured from the pivot centerline to the door face, allowing for a full swing of 180 degrees, subject to trim constraints. Constructed with a satin chromium finish, the pivot set not only offers aesthetic appeal but also enhances the longevity of the hardware in commercial applications. The pivot design promotes better door weight distribution, making it suitable for taller doors. Additionally, options for intermediate pivots are available to ensure precise alignment and installation of floor closers or bottom offset pivots. With a limited warranty of 2 years, the Rixson 117 pivot set stands as a reliable choice for building professionals seeking high-quality door hardware. This product ships via UPS and is crafted from durable brass or bronze, making it a smart investment for both commercial and residential settings.

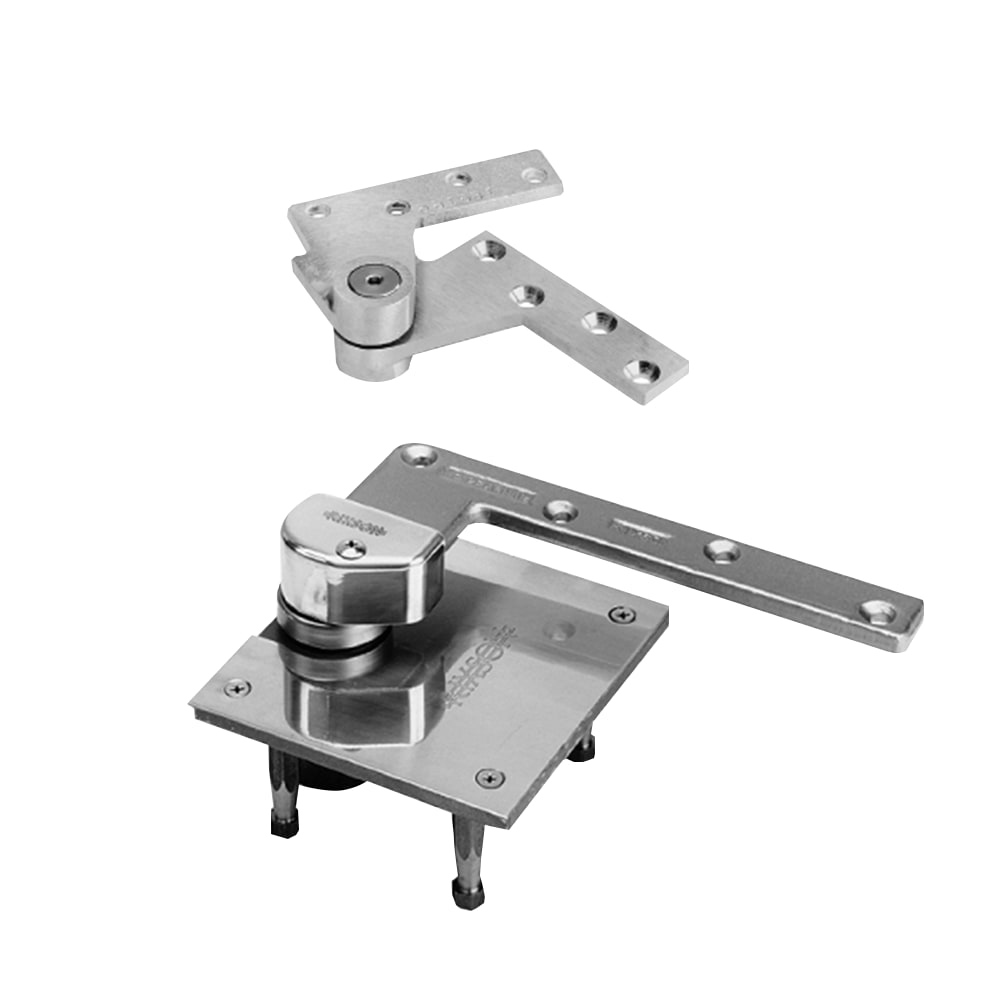

1-1/2" Offset Pivot Set
1-1/2" Offset Pivot, Includes 180 by 1-1/2OS Top Pivot, Right-Handed, Satin Chromium Plated
Offset hung pivot set. Standard top pivot 180 included. Bottom pivot mortised into floor. For interior doors weighing up to 300 lbs. (with intermediate pivot, not included.) Maximum door width 3 Ft. 6" Handed. 1 1/2" offset (measured from centerline of pivot to face of door). Doors will swing 180 Degrees, trim permitting.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
