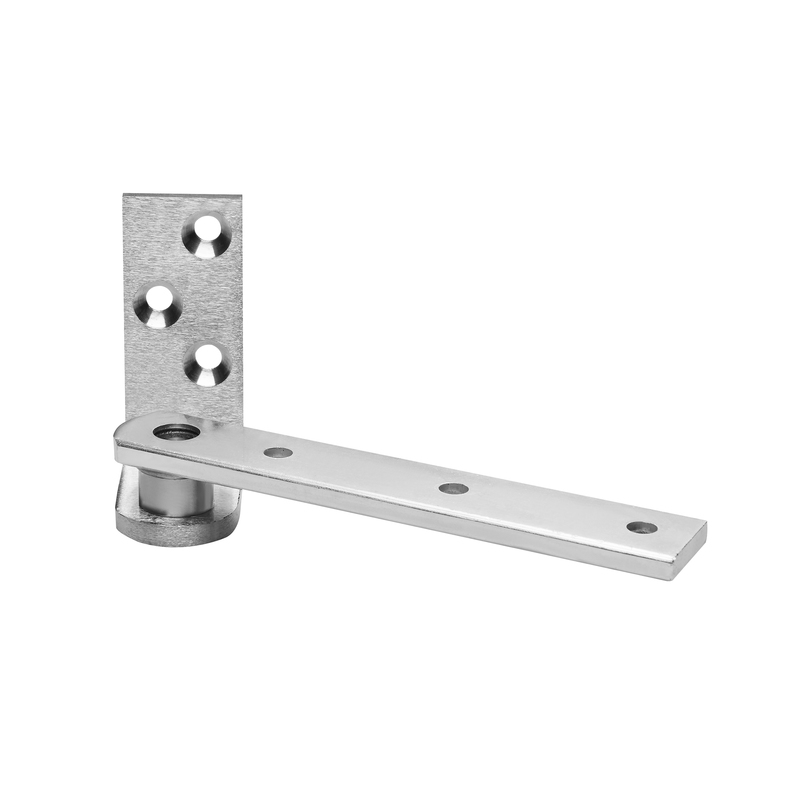

Rixson 127-3/4 LTP 626 Center Hung Pivot Set is expertly designed for optimal door functionality and aesthetics in commercial settings. This center hung pivot system, less the top pivot, ensures a smooth and reliable operation for interior doors weighing up to 200 lbs and measuring up to 3 Ft. 6" x 8 Ft. 6". The pivot is mortised into the side jamb, allowing for a clean installation while maintaining the structural integrity of the door frame. Crafted with a satin chromium finish (626/US26D), this pivot set not only delivers durability but also enhances the visual appeal of your doors with its matte silver hue. It comes furnished with both wood and machine screws, simplifying the installation process. The Rixson pivot design leverages the laws of physics to provide excellent weight distribution, making it suitable for taller doors. Intermediate pivots ensure alignment, while electrified options are available for power transfer or door position monitoring. Ideal for commercial applications, the Rixson 127-3/4 LTP 626 Pivot Set is backed by a two-year limited warranty, reinforcing its reliability and performance for demanding environments.
Center Hung Pivot Set
Center Hung Side Jamb Attached Pivot, Less Top Pivot, Satin Chromium Plated
Center hung Pivot, less top pivot. Bottom pivot mortised into side jam. For interior doors up to 200 lbs. Maximum door size 3 Ft.6" x 8 Ft.6" Non-handed. Furnished with wood and machine screws.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Manufacturer surcharge: $ 0.0
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Hinge Type: Pivot, Center Hung Bottom
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
