Rixson 147 613E RH 3/4in Offset Pivot Set is expertly designed for both interior and exterior doors, accommodating weights of up to 600 lbs. This standard-duty pivot set is perfect for doors with a width of up to 48 inches, ensuring smooth operation and durability. The pivot's right-handed configuration allows for easy installation on right-hinged doors. Included with the set is a 180-degree top pivot, and while the M19 intermediate pivot is required for optimal performance, it is sold separately. The bottom pivot mounts directly to the floor, providing stability and support. With a 3/4-inch offset and a requirement for beveled door edges, this pivot set seamlessly integrates into your door design. The Rixson 147 also features non-ferrous base materials, ensuring longevity and resistance to corrosion. For taller doors, additional intermediate pivots are recommended, making this pivot set versatile for various door heights. Available in a dark oxidized satin bronze finish, this product not only functions effectively but also adds an elegant touch to your space. With a limited 2-year warranty and compliance with ANSI/BHMA A156.4, grade 2 standards, the Rixson 147 613E RH pivot set is a reliable choice for those seeking quality and performance in their door hardware solutions.

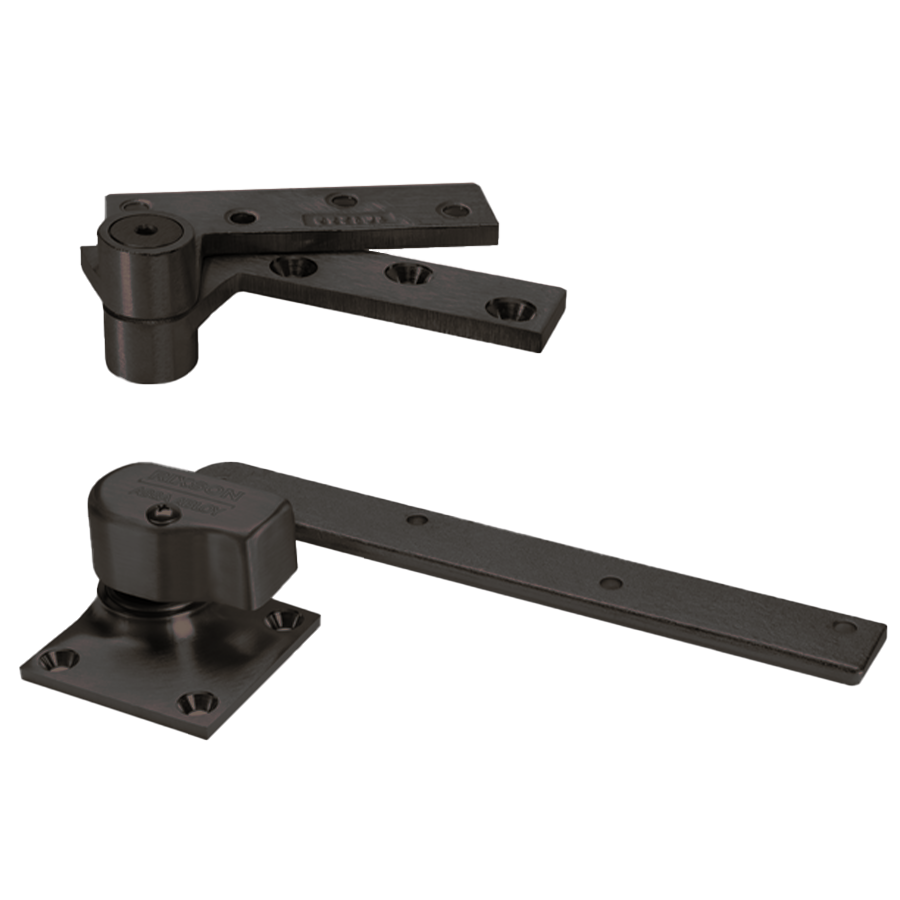

3/4in Offset Pivot Set. Right Handed. Standard-Duty. Up to 600lbs, Door Width up to 48in. (Includes 180 Degree Top Pivot), US10BE/613E Dark Oxidized Satin Bronze

The 147 is an offset-hung, standard-duty pivot set designed for interior or exterior doors weighing up to 600lbs.

Features:

• Exterior or interior doors
• Weight up to 600lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
• Door width up to 4'0" (1219mm)
• Handed
• 180 top pivot included; M19 intermediate pivot required (sold separately)
• Bottom pivot mounts directly to floor
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Doors will swing 180°, trim permitting
• Uses same arm and cap as 27 floor closer
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
• Available for 1-1/2" (38mm) offset (door weight 350 lbs.) for doors with cladding or frame molding
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard

Specifications:

• Hang Type: Offset hung
• Maximum Door Weight: 600 lbs
• Warranty: 2-year limited warranty
• ANSI/BHMA A156.4, grade 2

Finishes:

• 605/US3 - Bright brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• BSP - Black suede powder coat
• WSP - White suede powder coat
