Rixson 147 626 LH 3/4in Offset Pivot Set is expertly engineered for both interior and exterior doors, accommodating up to 600lbs. This left-handed, standard-duty pivot set is ideal for doors with a width of up to 48 inches, providing reliable support and smooth operation for heavy-duty applications. Designed with versatility in mind, the Rixson 147 features a 3/4" offset, allowing for a clean and functional installation. The robust construction ensures durability, while the non-ferrous base material enhances longevity. It includes a 180-degree top pivot and requires an M19 intermediate pivot (sold separately) for optimal performance. The bottom pivot mounts directly to the floor, ensuring stability and ease of use. For doors ranging from 60" to 90" in height, one intermediate pivot is recommended, with additional pivots required for every extra 30". This pivot set is also compatible with the same arm and cap as the 27 floor closer, streamlining maintenance and replacements. Furnished with both wood and machine screws, the Rixson 147 is available in a sleek Satin Chrome finish (US26D/626), seamlessly blending with various architectural styles. Backed by a 2-year limited warranty, this pivot set meets ANSI/BHMA A156.4, grade 2 standards, making it a dependable choice for professionals and discerning homeowners alike.

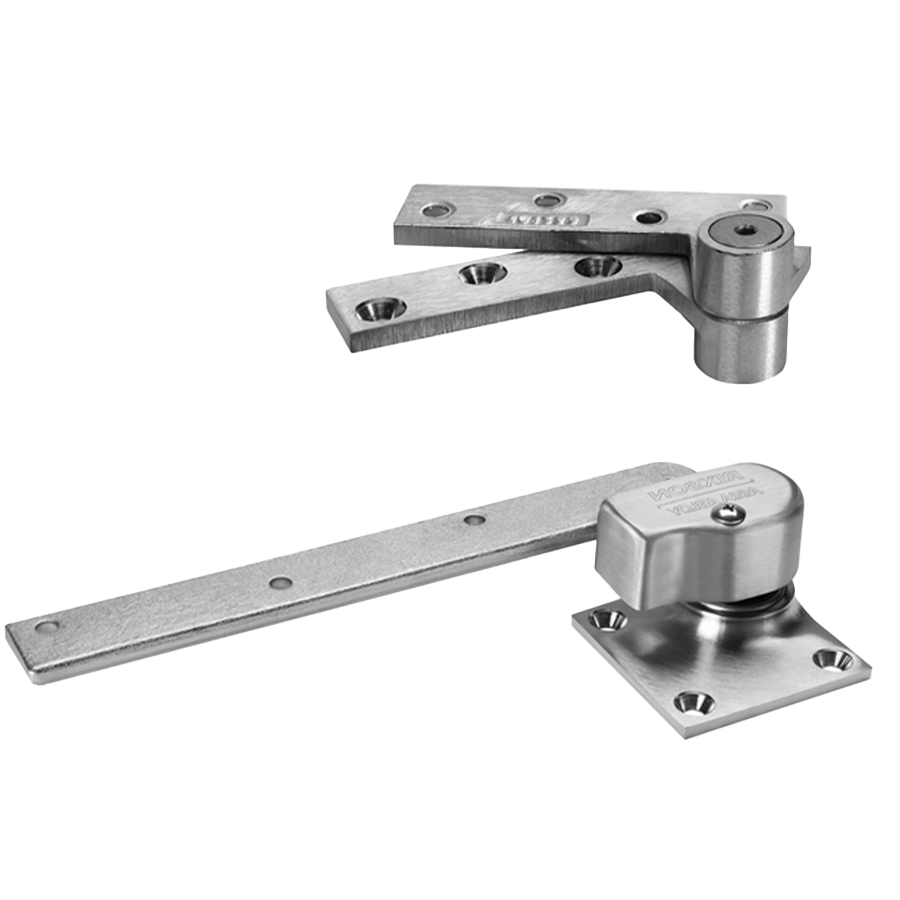

3/4in Offset Pivot Set. Left Handed. Standard-Duty. Up to 600lbs, Door Width up to 48in. US26D/626 Satin Chrome

The 147 is an offset-hung, standard-duty pivot set designed for interior or exterior doors weighing up to 600lbs.

Features:

• Exterior or interior doors
• Weight up to 600lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
• Door width up to 4'0" (1219mm)
• Handed
• 180 top pivot included; M19 intermediate pivot required (sold separately)
• Bottom pivot mounts directly to floor
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Doors will swing 180°, trim permitting
• Uses same arm and cap as 27 floor closer
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
• Available for 1-1/2" (38mm) offset (door weight 350 lbs.) for doors with cladding or frame molding
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard

Specifications:

• Hang Type: Offset hung
• Maximum Door Weight: 600 lbs
• Warranty: 2-year limited warranty
• ANSI/BHMA A156.4, grade 2

Finishes:

• 605/US3 - Bright brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• BSP - Black suede powder coat
• WSP - White suede powder coat
