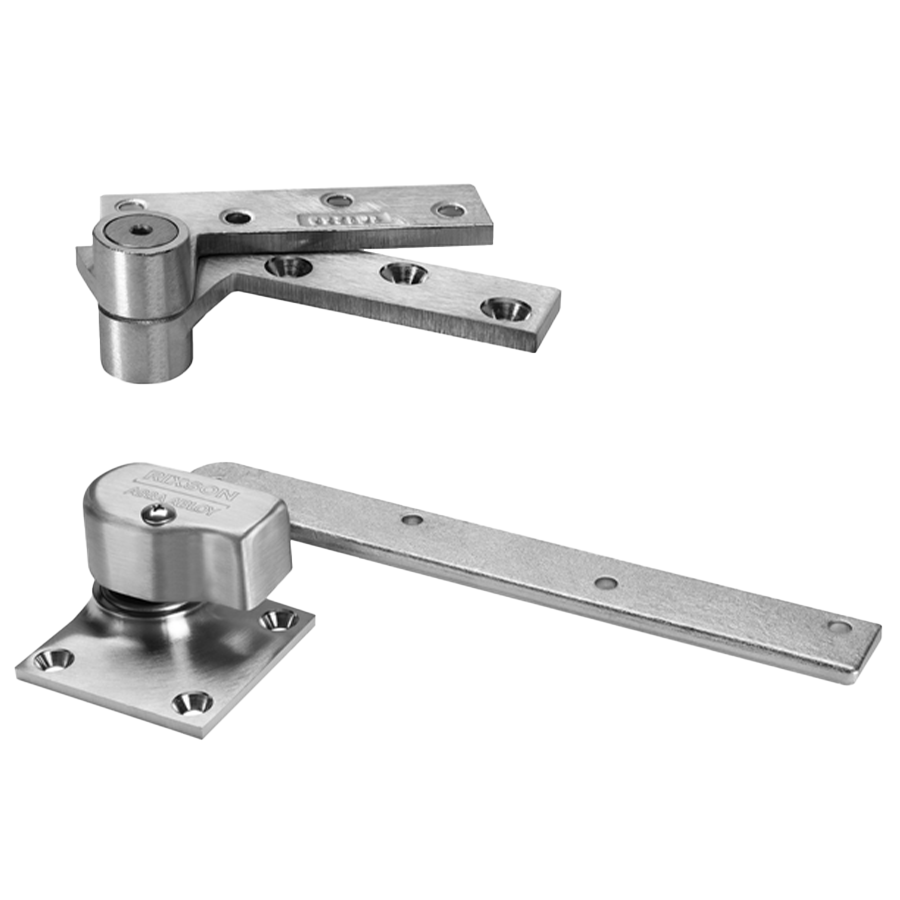

Rixson 147 626 RH 3/4in Offset Pivot Set, Right Hand, Standard-Duty, 600lbs, Satin Chrome

Rixson 147 626 RH 3/4in Offset Pivot Set offers a robust solution for both interior and exterior doors, accommodating weights up to 600 pounds and door widths of up to 48 inches. This standard-duty pivot set is designed for right-handed configurations, ensuring seamless operation for high-traffic areas. Constructed with durability in mind, the 147 features a 3/4" offset that allows for smooth door movement while ensuring that the edges of the door are beveled at 1/8" in 2". This pivot set is equipped with a 180-degree top pivot and requires an M19 intermediate pivot (sold separately), making it adaptable for various door heights. For doors measuring between 60" and 90", one intermediate pivot is necessary, with additional pivots recommended for increased height. The Rixson 147 is constructed from a non-ferrous base material and is finished in a sleek satin chrome (US26D/626), blending functionality with aesthetic appeal. It is compatible with the same arm and cap as the Rixson 27 floor closer, allowing for easy installation and replacement. With a 2-year limited warranty and compliance with ANSI/BHMA A156.4, grade 2 standards, this pivot set ensures reliability and performance for years to come.

3/4in Offset Pivot Set. Right Handed. Standard-Duty. Up to 600lbs, Door Width up to 48in. US26D/626 Satin Chrome

The 147 is an offset-hung, standard-duty pivot set designed for interior or exterior doors weighing up to 600lbs.

Features:

• Exterior or interior doors
• Weight up to 600lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
• Door width up to 4'0" (1219mm)
• Handed
• 180 top pivot included; M19 intermediate pivot required (sold separately)
• Bottom pivot mounts directly to floor
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Doors will swing 180°, trim permitting
• Uses same arm and cap as 27 floor closer
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
• Available for 1-1/2" (38mm) offset (door weight 350 lbs.) for doors with cladding or frame molding
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard

Specifications:

• Hang Type: Offset hung
• Maximum Door Weight: 600 lbs
• Warranty: 2-year limited warranty
• ANSI/BHMA A156.4, grade 2

Finishes:

• 605/US3 - Bright brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• BSP - Black suede powder coat
• WSP - White suede powder coat
