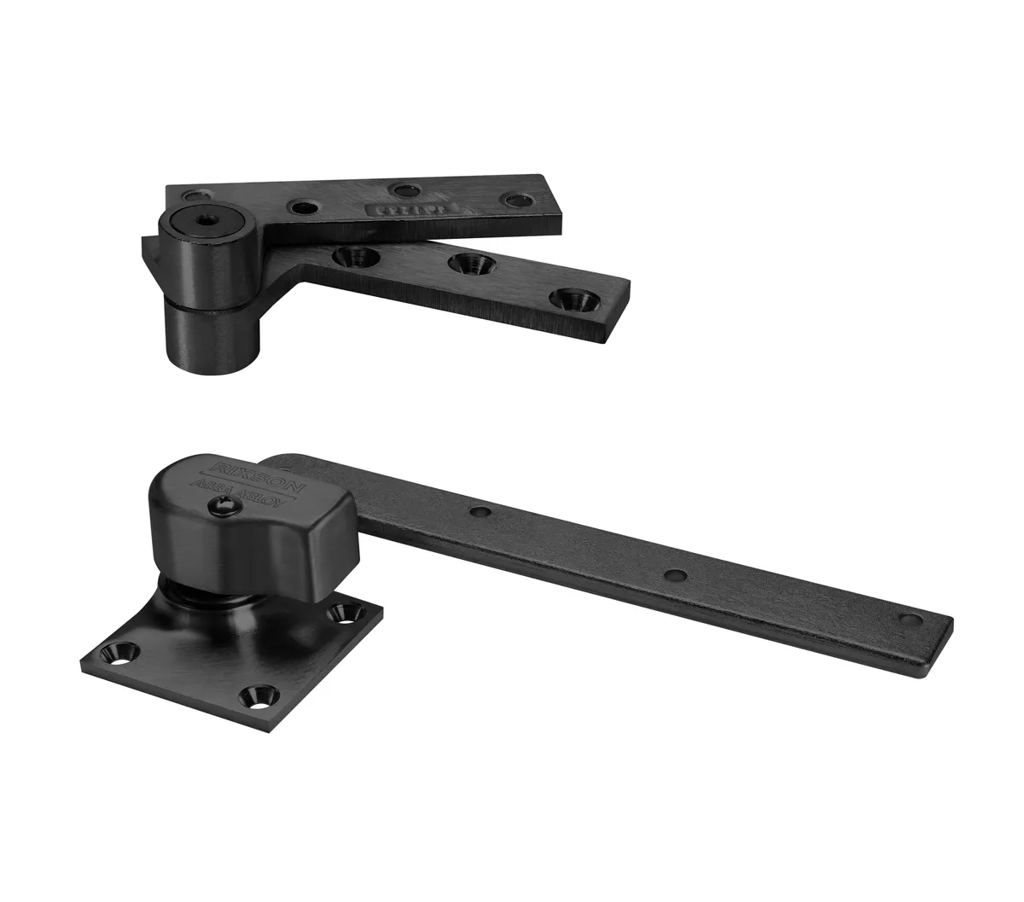

Rixson 147 BSP LH 3/4in Left Hand Offset Pivot Set, Standard-Duty, Black Suede, Up to 600lbs

Rixson 147 BSP LH 3/4in Offset Pivot Set offers a reliable solution for heavy-duty door applications, accommodating doors weighing up to 600 lbs and widths up to 48 inches. Designed for both interior and exterior doors, this left-handed pivot set provides robust performance with its standard-duty construction. The 147 model features a 3/4" offset, ensuring optimal door swing capabilities of up to 180°, contingent on trim allowances. Installation is straightforward, with the bottom pivot mounting directly to the floor and the included 180 top pivot. For doors ranging in height from 60" to 90", an intermediate pivot is required, with additional pivots recommended for greater heights. This pivot set is designed to enhance durability and functionality, as it utilizes the same arm and cap as the 27 floor closer. Crafted from non-ferrous base materials, the 147 BSP is finished in a stylish black suede powder coat, adding an aesthetic appeal while ensuring longevity. With a 2-year limited warranty and compliance with ANSI/BHMA A156.4, grade 2 standards, this pivot set offers both performance and peace of mind. Whether for commercial or residential use, the Rixson 147 BSP LH is an excellent choice for reliable door management.

3/4in Offset Pivot Set. Left Handed. Standard-Duty. Up to 600lbs, Door Width up to 48in, Black Suede Powder Coat BSP

The 147 is an offset-hung, standard-duty pivot set designed for interior or exterior doors weighing up to 600lbs.

Features:

• Exterior or interior doors
• Weight up to 600lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
• Door width up to 4'0" (1219mm)
• Handed
• 180 top pivot included; M19 intermediate pivot required (sold separately)
• Bottom pivot mounts directly to floor
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Doors will swing 180°, trim permitting
• Uses same arm and cap as 27 floor closer
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
• Available for 1-1/2" (38mm) offset (door weight 350 lbs.) for doors with cladding or frame molding
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard

Specifications:

• Hang Type: Offset hung
• Maximum Door Weight: 600 lbs
• Warranty: 2-year limited warranty
• ANSI/BHMA A156.4, grade 2

Finishes:

• 605/US3 - Bright brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• BSP - Black suede powder coat
• WSP - White suede powder coat
