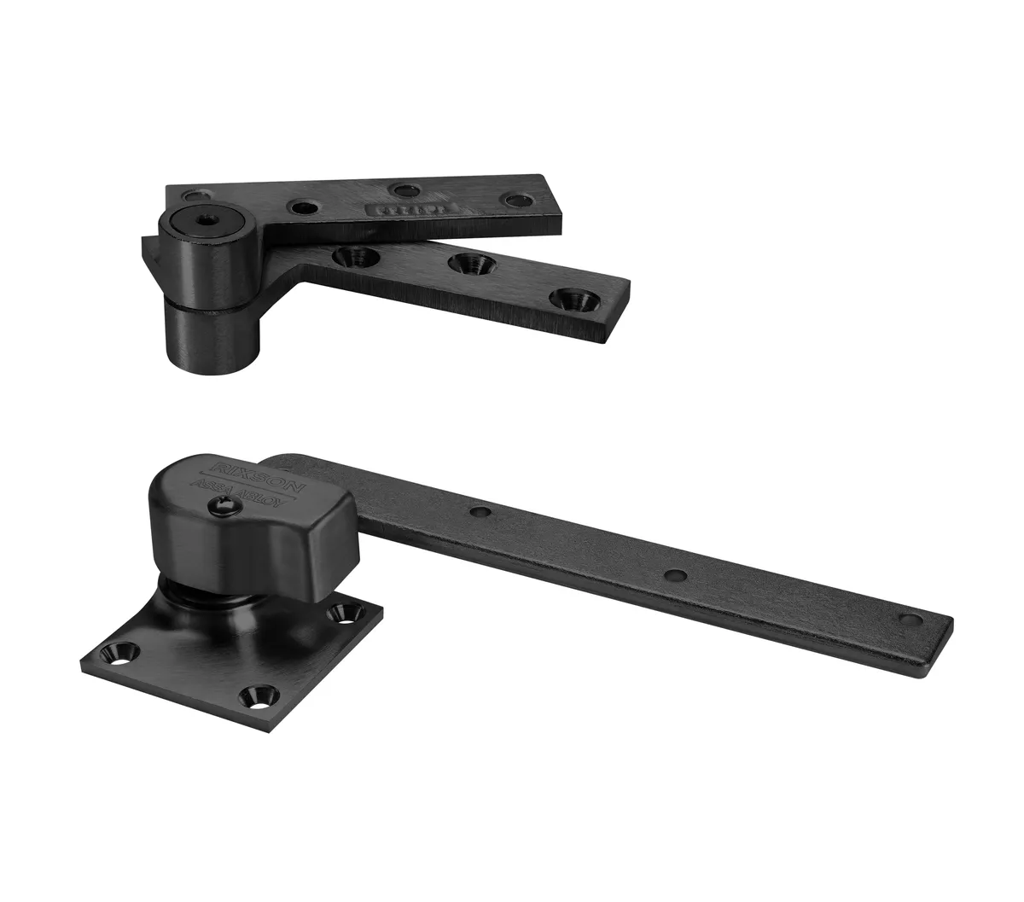

Rixson 147 BSP RH 3/4in Offset Pivot Set, Right Hand, Standard-Duty, 600lbs, Black Suede Coat

Rixson 147 BSP RH 3/4in Offset Pivot Set is an ideal solution for both interior and exterior doors, effortlessly supporting weights of up to 600 lbs. This standard-duty pivot set is designed for right-handed applications and accommodates door widths up to 48 inches, making it versatile for various installations. Engineered for performance, the set includes a 180 top pivot and requires an M19 intermediate pivot (sold separately) for optimal functionality. The bottom pivot mounts directly to the floor, ensuring stability and ease of use. With a 3/4" offset, measured from the centerline of the pivot to the door face, it allows for a smooth swing of up to 180°, provided the trim permits. Constructed from non-ferrous base materials, the Rixson 147 offers durability along with a sleek black suede powder coat finish, enhancing its aesthetic appeal. The pivot set is complemented by wood and machine screws for straightforward installation. Additional features include the option for extended spindles in 1/2" increments up to 2" longer than the standard, catering to specific installation needs. Backed by a 2-year limited warranty and ANSI/BHMA A156.4, grade 2 certification, this pivot set is built to meet high standards of quality and reliability, making it a trusted choice for building professionals and homeowners alike.

3/4in Offset Pivot Set. Right Handed. Standard-Duty. Up to 600lbs, Door Width up to 48in, Black Suede Powder Coat BSP

The 147 is an offset-hung, standard-duty pivot set designed for interior or exterior doors weighing up to 600lbs.

Features:

• Exterior or interior doors
• Weight up to 600lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
• Door width up to 4'0" (1219mm)
• Handed
• 180 top pivot included; M19 intermediate pivot required (sold separately)
• Bottom pivot mounts directly to floor
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Doors will swing 180°, trim permitting
• Uses same arm and cap as 27 floor closer
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
• Available for 1-1/2" (38mm) offset (door weight 350 lbs.) for doors with cladding or frame molding
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard

Specifications:

• Hang Type: Offset hung
• Maximum Door Weight: 600 lbs
• Warranty: 2-year limited warranty
• ANSI/BHMA A156.4, grade 2

Finishes:

• 605/US3 - Bright brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• BSP - Black suede powder coat
• WSP - White suede powder coat
