Rixson 147 LH 613 3/4" Offset Pivot Set offers an exceptional solution for hanging doors with a focus on durability and functionality. Designed for both interior and exterior applications, this left-handed pivot set accommodates doors weighing up to 600 lbs and measuring up to 4 feet in width, ensuring reliable performance in high-traffic areas. The set includes a 180-degree top pivot, while the bottom pivot mounts directly to the floor, allowing for smooth operation and maximum door swing. Constructed from dark oxidized satin bronze, this pivot set not only provides a robust construction but also enhances the aesthetic appeal of commercial spaces. The offset design improves door weight distribution and is particularly advantageous for taller doors, making installation straightforward and efficient. Intermediate pivots can be added for alignment and to support the bottom offset pivots or floor closers, while electrified intermediate pivots are available for power transfer and door position monitoring. Designed with the principles of physics in mind, the Rixson 147 ensures that your doors function seamlessly, providing both security and style. Backed by a 2-year limited warranty, this pivot set is a reliable choice for building professionals and discerning homeowners alike.

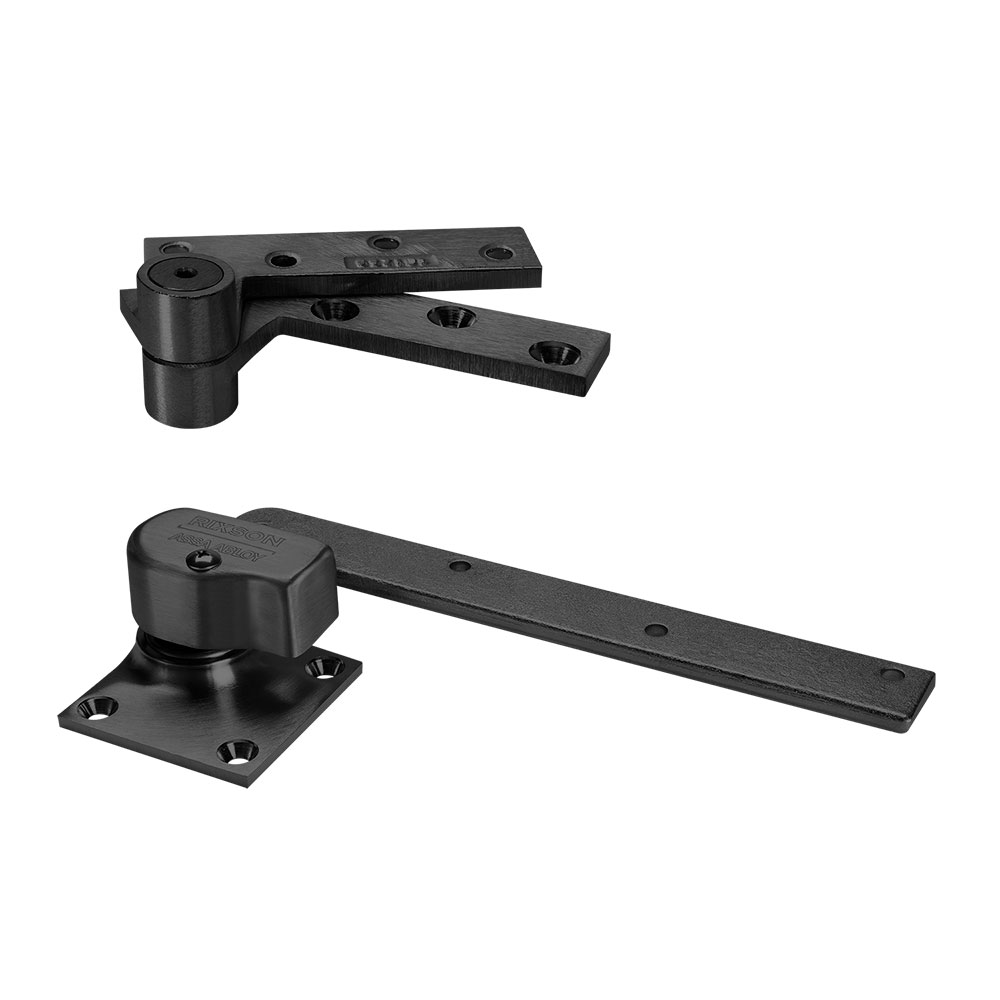

3/4" Offset Pivot Set
3/4" Offset Pivot, Includes 180 Top Pivot, Left-Handed, Dark Oxidized Satin Bronze Oil Rubbed
Offset hung pivot set for interior or exterior doors. Maximum door weight 600 lbs. (including the appropriate number of intermediate pivots). Maximum door width 4 Ft.0" Includes 180 top pivot. Bottom pivot mounts directly to floor. 180 degree maximum door swing.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Bronze
Commercial Residential: Commercial
Finish: 613/US10B
Finish Family: Dark Bronze
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
Upc: 49306782821
