Rixson 195 626 LH 3/4 Offset Pivot Set, 180 Top Bottom Pivots, Left Hand, Satin Chrome 626

Rixson 195 626 LH Pivot Set offers exceptional support and functionality for both interior and exterior doors weighing up to 450 lbs. Designed for offset-hung applications, this jamb-mounted pivot set ensures smooth operation and durability, making it ideal for heavy-duty use. The 3/4" offset feature, measured from the centerline of the pivot to the face of the door, allows for seamless swing and accessibility. This pivot set includes a 180-degree top pivot and a mortised bottom pivot for a robust installation. It's important to note that doors must have beveled edges of 1/8" in 2" to accommodate the system properly. The set can be vertically adjusted up to 3/16" (5mm) after installation, eliminating the need for shims and ensuring a perfect fit. Constructed from non-ferrous materials, the Rixson 195 is available in a sleek satin chrome finish (626/US26D) that complements a variety of architectural styles. With a maximum door width of 4'0" (1219mm) and the capability to support door heights up to 90" (2286mm) with intermediate pivots, this pivot set is versatile for many applications. Backed by a 2-year limited warranty, it meets ANSI/BHMA A156.4, Grade 2 standards, providing peace of mind for building professionals and homeowners alike.

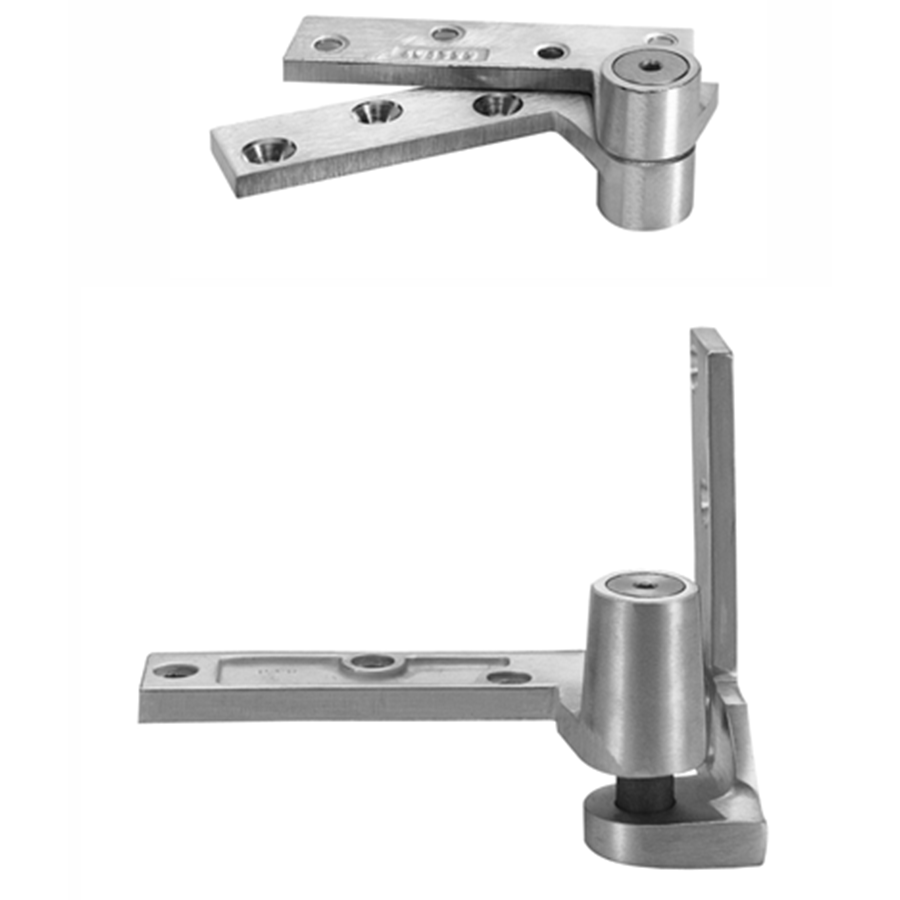

Pivot Set, 3/4 Offset, (1)180 Top Pivot (Hung) and (1) Bottom Pivot (Mortised Side Jamb), Left Handed, Satin Chrome 626/US26D

The 195 is an offset-hung, jamb-mounted pivot set designed for interior or exterior doors weighing up to 450lbs.

Features:

• Exterior or interior doors
• Weight up to 450lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
• Door width up to 4'0" (1219mm)
• Handed
• 180 top pivot included; 119 or M19 intermediate pivots are recommended (sold separately)
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Bottom pivot mortised into side jamb
• Pivot set can be vertically adjusted up to 3/16" (5mm) after installation without the use of shims
• Doors will swing 180°, trim permitting
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
• Weight of door is borne by floor portion

Specifications:

• Hang Type: Offset hung
• Maximum Door Weight: 450 lbs
• Warranty: 2-year limited warranty
• ANSI/BHMA A156.4, Grade 2

Finishes:

• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
