Rixson 195 626 RH 3/4 Offset Pivot Set, 180 Top Bottom Pivots, Right Handed, Satin Chrome 626

Rixson 195 626 RH Pivot Set is a robust solution for both interior and exterior doors weighing up to 450 lbs. Designed with a 3/4" offset, this pivot set includes a 180° top pivot and a bottom pivot that is mortised into the side jamb, ensuring a secure and seamless operation. Suitable for doors up to 4'0" wide, it can accommodate heights ranging from 60" to 90" with the option to add intermediate pivots for taller doors. This right-handed pivot set features a non-ferrous base material and is finished in a sleek satin chrome (626/US26D) that perfectly complements modern architecture. The design allows for easy vertical adjustments of up to 3/16" post-installation without the need for shims, providing flexibility during setup. To ensure durability and reliability, the Rixson 195 meets ANSI/BHMA A156.4, Grade 2 standards, and comes with a 2-year limited warranty. Installation is straightforward, furnished with wood and machine screws. With its capability to swing 180° and the option for extended spindles, the Rixson 195 626 RH Pivot Set is an excellent choice for professionals and discerning homeowners seeking quality and performance in their door hardware.

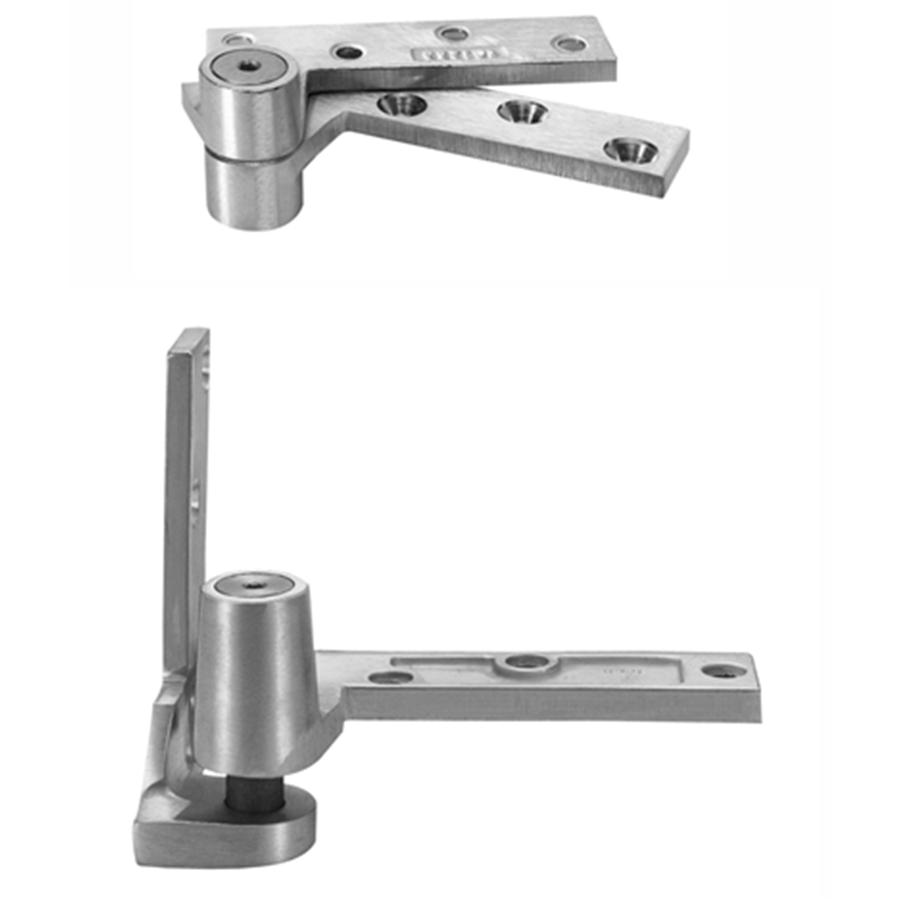

Pivot Set, 3/4 Offset, (1)180 Top Pivot (Hung) and (1) Bottom Pivot (Mortised Side Jamb), Right Handed, Satin Chrome 626/US26D

The 195 is an offset-hung, jamb-mounted pivot set designed for interior or exterior doors weighing up to 450lbs.

Features:

• Exterior or interior doors
• Weight up to 450lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
• Door width up to 4'0" (1219mm)
• Handed
• 180 top pivot included; 119 or M19 intermediate pivots are recommended (sold separately)
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Bottom pivot mortised into side jamb
• Pivot set can be vertically adjusted up to 3/16" (5mm) after installation without the use of shims
• Doors will swing 180°, trim permitting
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
• Weight of door is borne by floor portion

Specifications:

• Hang Type: Offset hung
• Maximum Door Weight: 450 lbs
• Warranty: 2-year limited warranty
• ANSI/BHMA A156.4, Grade 2

Finishes:

• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
