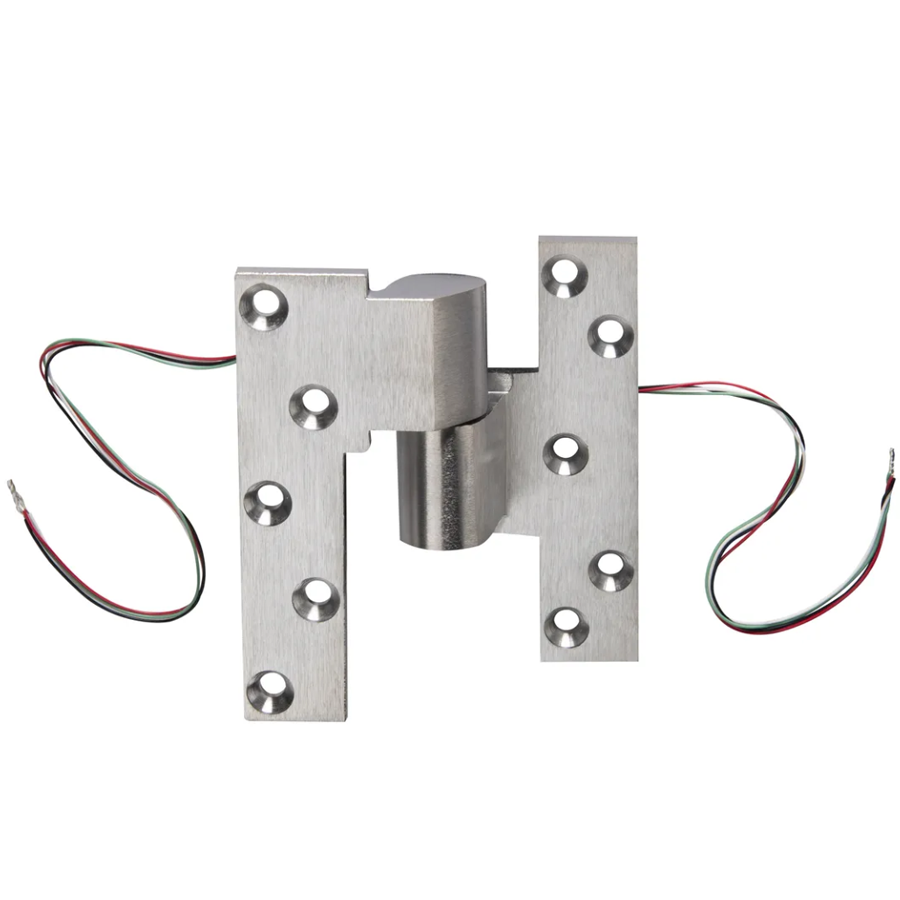

Rixson EM19 613 LH 12-WIRE 3/4in Offset Electric Pivot, Left Hand, 12 Wire Power Transfer, 24-Gauge

Rixson EM19 613 LH 12-WIRE 3/4in Offset Electric Intermediate Pivot with 12 Wire Power Transfer is expertly designed for standard-duty doors, providing a reliable solution for electrified power transfer. This left-hand, offset-hung pivot ensures seamless functionality while accommodating low voltage, class II wiring applications with its 24-gauge wire rated at 2 amps. The EM19 pivot is ideal for environments where power needs to be efficiently transferred through the door. The unit comes factory assembled, with the door and jamb portions inseparable, ensuring structural integrity and ease of installation. It's important to note that the EM19 is not load-bearing, so it should always be paired with the M19 intermediate pivot for optimal performance. Available in various finishes, including bright brass, satin bronze, and flat black, this pivot can complement any aesthetic. It is also available for fire door assemblies, adding another layer of versatility to its application. The 3/4-inch offset can be customized to a 1-1/2-inch option, and the product includes wood and machine screws for installation ease. With a two-year limited warranty, the Rixson EM19 pivot combines functionality with reliability, making it a smart choice for building professionals and homeowners alike.

3/4in Offset Electric Intermediate Pivot with 12 Wire Power Transfer. Left Hand, 12 Wire 24-Gauge

The E-M19 is an offset-hung, electrified power transfer pivot designed for standard-duty doors.

Features:

• Offset hung
• Electric pivot for power transfer
• Handed
• Not load-bearing
• Door and jamb portion are factory assembled and cannot be separated
• Always use M19 intermediate pivot to install door
• Specify four, six, eight, or twelve wires
• ElectroLynx option available, suffix "QC#" (number of wires)
• 24-gauge wire is rated at 2 amps for low voltage, class II wiring applications
• Available for fire door assemblies (ferrous material) – specify E-FM19
• For 20-minute label, suffix "–20" to the part number
• 3/4" (19mm) offset
• Available in 1-1/2" offset
• Door edges must be beveled in 1/8" in 2"
• Furnished with wood and machine screws

Specifications:

• Hang Type: Offset hung
• Warranty: 2-year limited warranty

Finishes:

• 605/US3 - Bright brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
