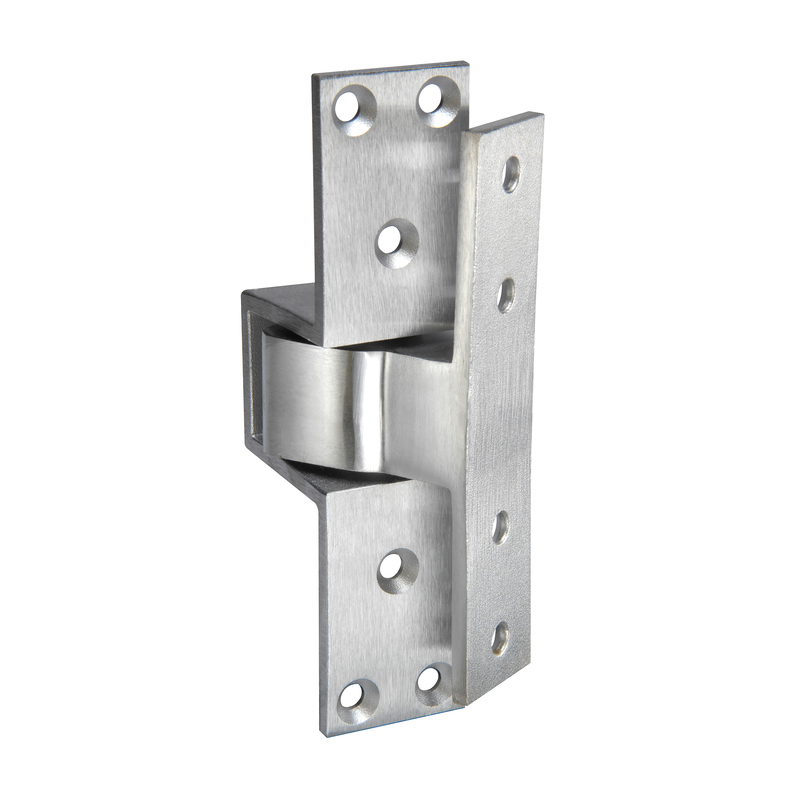

Rixson F519 626 Pocket Pivot offers a robust solution for pocket door applications, combining functionality with fire safety. This fire-rated pivot is designed for full mortise installation and features a satin chromium finish, ensuring durability and a sleek appearance. Constructed from heavy-duty steel with ball bearings, the F519 allows doors to swing smoothly up to 90 degrees, accommodating a variety of door heights. For optimal support, a minimum of three pocket pivots is recommended for standard door heights, increasing to four for doors measuring between 60" and 90". Each additional 30" of door height necessitates an extra pivot, ensuring proper weight distribution and stability. The pivot is suitable for commercial settings, meeting the demands of high-traffic environments. The F519 is part of the Rixson Pivots series and is particularly beneficial for those needing to integrate offset pivot hardware for enhanced door weight management or intermediate pivots for alignment and installation efficiency. This unit is also compatible with electrified intermediate pivots, which facilitate power transfer and door position monitoring. With a limited two-year warranty, the Rixson F519 626 Pocket Pivot not only meets stringent fire safety standards, rated for three hours, but also ensures a reliable and aesthetically pleasing solution for your door hardware needs.
Pocket Pivot
Pocket Pivot, Satin Chromium Plated
Fire rated pocket door pivot. Full mortise, non-handed pivot for pocket door applications. Heavy-duty steel pivot with ball bearings. Allows doors to swing 90 Degrees. Minimum three pocket pivots per door. Doors 60" to 90" in height require four pocket pivots. Every addi- tional 30" of door height warrants another pocket pivot.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours
Fire Rating: 3 Hours
Hinge Type: Pivot, Pocket
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
