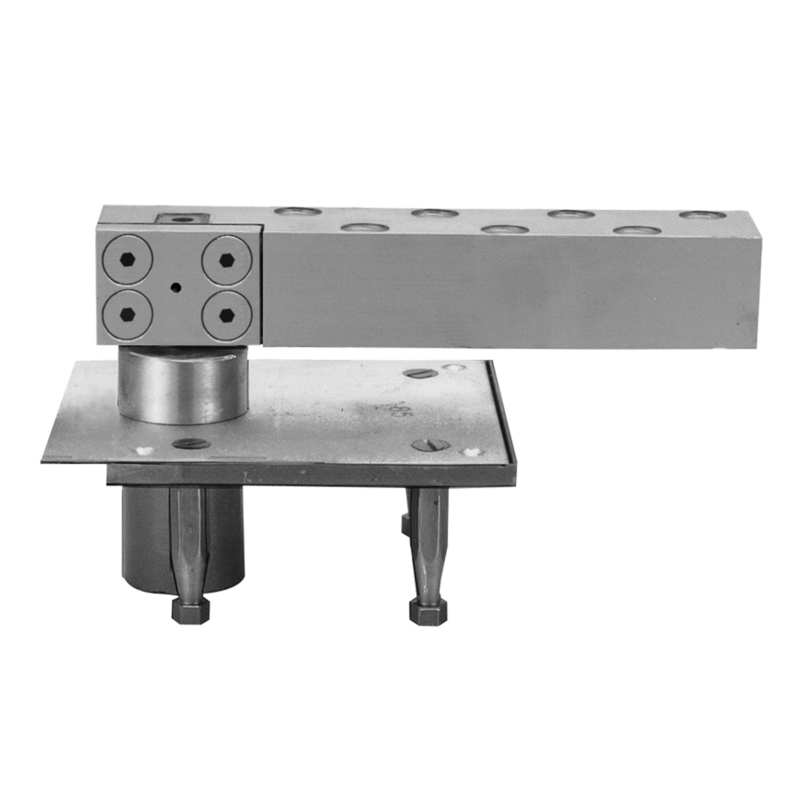

Rixson H117-3/4 587 LTP 626 Center Hung Pivot offers an efficient solution for hanging 1-3/4" thick doors, accommodating a maximum door weight of 1000 lbs and size of 4'0" x 8'6". This center hung pivot set is versatile enough for both interior and exterior applications, ensuring reliable operation in various environments. Designed without a top pivot, the bottom pivot is mortised into the floor, providing a clean and unobtrusive installation. Constructed with a satin chromium plated finish, the pivot enhances the aesthetics of any commercial setting while ensuring durability. Its unique H arm design includes a special side load feature that allows for better weight distribution and a more efficient pivot point, strategically positioned at the center of the door thickness. This alignment not only improves functionality but also aids in the installation of bottom offset pivots and floor closers. The Rixson H117 is an essential component for anyone looking to achieve a seamless door operation, making it suitable for heavy-duty use. With a two-year limited warranty, it guarantees reliability and performance, making it a smart choice for commercial installations. Elevate your door hardware with this dependable pivot solution.
Center Hung Pivot
Center Hung Pivot for 1-3/4" Doors, Less Top Pivot, H Arm, Satin Chromium Plated
Center hung pivot set. For interior or extreior doors. Max door weight 1000 lbs. Max door size 4 Ft.0" x 8 Ft.6" Non-handed. Less Top Pivot. Bottom pivot is mortised into floor. Special side load arm for 1-3/4" thick doors or for moving pivot point toward lock edge of door. Pivot point centered in thickness of door.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Hinge Type: Pivot, Center Hung Bottom
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
