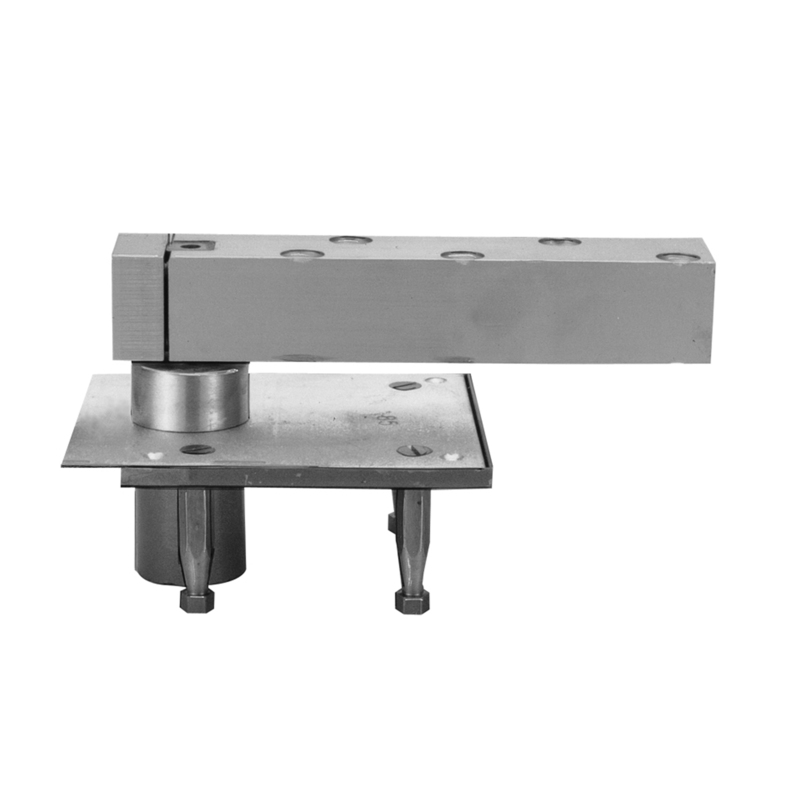

Rixson H117-3/4 LTP 626 Center Hung Pivot offers a robust and reliable solution for hanging heavy doors, accommodating weights up to 1,000 lbs and sizes up to 4'0" x 8'6". This center hung pivot set is perfect for both interior and exterior applications, ensuring seamless functionality and durability. Crafted with a satin chromium plated finish, it not only enhances aesthetic appeal but also resists wear and tear in high-traffic environments. Designed for doors with a minimum thickness of 2 inches, the pivot point is strategically centered within the door's thickness for optimal balance and performance. The bottom pivot is mortised into the floor, providing a secure foundation, while the absence of a top pivot allows for versatile installation. This non-handed pivot is easy to use and ideal for various commercial settings. Additionally, Rixson's pivot hardware enhances door weight distribution, making it suitable for taller doors. For added convenience, options like electrified intermediate pivots are available for power transfer and door position monitoring. With a limited warranty of two years, the Rixson H117-3/4 LTP 626 Center Hung Pivot is a dependable choice for professionals seeking quality and efficiency in door hardware.
Center Hung Pivot
Center Hung Pivot for 2" Doors or Greater, Less Top Pivot, Satin Chromium Plated
Center hung pivot set. For interior or extreior doors. Max door weight 1000 lbs. Max door size 4 Ft.0" x 8 Ft.6" Non-handed. Less Top Pivot. Bottom pivot is mortised into floor. End load arm for minimum 2" thick doors. Pivot point centered in thickness of door.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Hinge Type: Pivot, Center Hung Bottom
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
