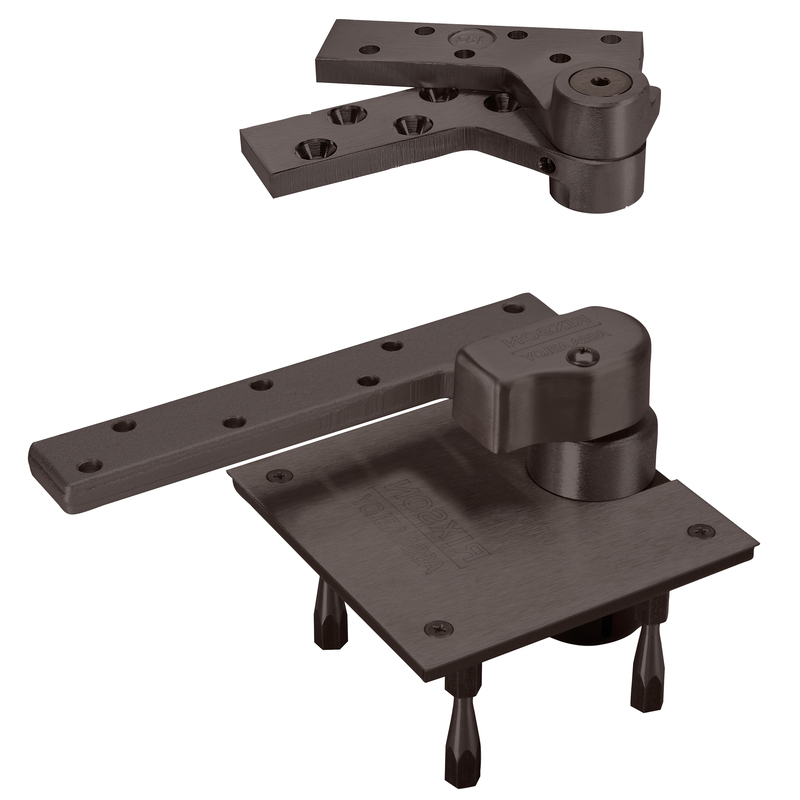

Rixson L117 X 1-3/4 Door LH 613 3/4 Offset Pivot Set offers a robust and reliable solution for hanging heavy doors, making it an excellent choice for commercial applications. This lead-lined, heavy-duty pivot set is designed for a 1-3/4" door and features a left-handed configuration, finished in dark oxidized satin bronze oil rubbed for a sophisticated appearance. With a maximum door weight capacity of 1750 lbs and accommodating doors up to 4 feet wide, the L117 pivot set is engineered for optimal weight distribution. The bottom pivot is mortised into the floor, ensuring stability and ease of operation. It includes the L180 top pivot, enhancing the overall functionality and alignment of the door. This offset pivot hardware provides better door weight distribution, making it suitable for taller doors. Intermediate pivots aid in alignment and proper installation of bottom offsets or floor closers, while electrified options can facilitate power transfer and door position monitoring. Additionally, the center hung and pocket pivots offer versatility for various architectural needs. Designed for commercial use and backed by a 2-year limited warranty, the Rixson L117 pivot set is a dependable choice for professionals seeking quality and performance in door hardware.
3/4 Offset Pivot Set
3/4" Offset Hung Pivot, 1-3/4" Door, Includes L180 Top Pivot, Left-Handed, Dark Oxidized Satin Bronze Oil Rubbed
Lead lined heavy-duty offset pivot set. Includes L180 top pivot. Max door weight 1750lbs. Max door width 4 Ft.0" Handed. Bottom pivot mortised into floor.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Bronze
Commercial Residential: Commercial
Finish: 613/US10B
Finish Family: Dark Bronze
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
