Rixson L117 X 1-3/4 Door LH 625 3/4 Offset Pivot Set delivers exceptional performance and durability for commercial door applications. This heavy-duty pivot set is designed for 1-3/4" doors and features a 3/4" offset, allowing for optimal weight distribution and enhancing the functionality of taller doors. With a maximum door weight capacity of 1,750 lbs and a width of up to 4 feet, this pivot set is robust enough for demanding environments. The L117 includes the L180 top pivot, ensuring seamless operation and alignment. Its left-handed configuration is ideal for specific installation needs, while the bright chromium plated finish not only provides a polished silver aesthetic but also enhances corrosion resistance. Designed with the laws of physics in mind, this pivot system enhances the hanging and swinging of doors, making it a reliable choice for both commercial and residential applications. The bottom pivot is mortised into the floor for added stability, and the option for electrified intermediate pivots allows for power transfer and door position monitoring if required. With a limited two-year warranty, the Rixson L117 offers peace of mind while ensuring high-quality performance in every use.
3/4 Offset Pivot Set

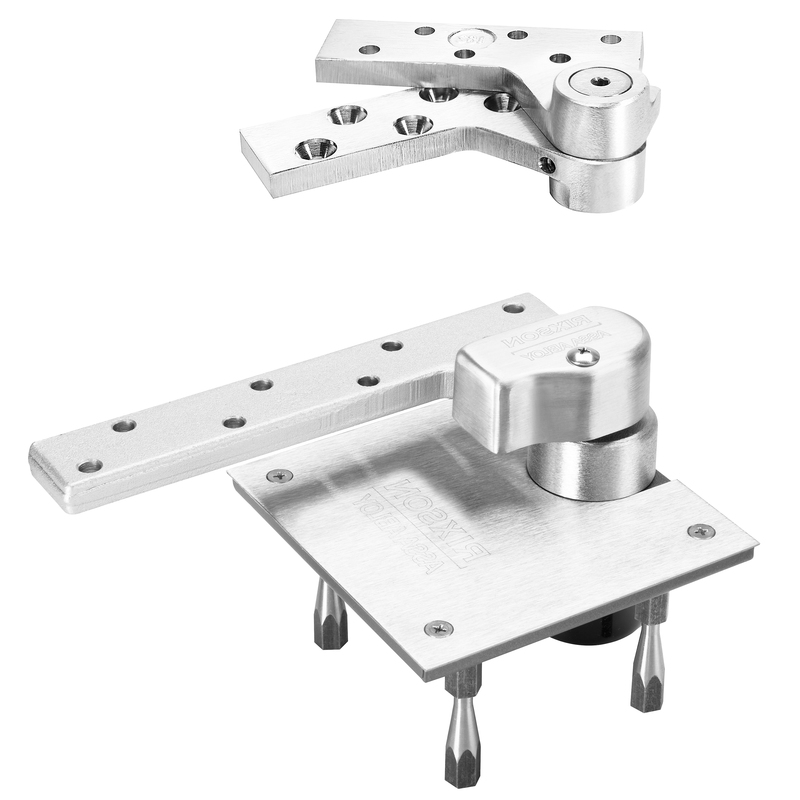

3/4" Offset Hung Pivot, 1-3/4" Door, Includes L180 Top Pivot, Left-Handed, Bright Chromium Plated
Lead lined heavy-duty offset pivot set. Includes L180 top pivot. Max door weight 1750lbs. Max door width 4 Ft.0" Handed. Bottom pivot mortised into floor.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 625/US26
Finish Family: Polished Silver
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
