Rixson L117 X 1-3/4 Door LH 626 3/4 Offset Pivot Set is designed for heavy-duty performance, accommodating doors with a maximum weight of 1,750 lbs and a width of 4 feet. This robust offset pivot set includes the L180 top pivot and is finished in a sleek satin chromium plating, providing both durability and an elegant appearance. Engineered to optimize door weight distribution, this pivot set allows for smoother operation, making it ideal for taller doors. The bottom pivot is mortised into the floor, ensuring secure installation while maintaining aesthetics. This set is particularly advantageous for commercial applications, where reliability and strength are paramount. Additionally, the Rixson L117 features intermediate pivots that assist with alignment and proper installation, enhancing the overall functionality of floor closers or bottom offset pivots. For enhanced capabilities, electrified intermediate pivots can be integrated for power transfer or door position monitoring. Crafted from high-quality brass or bronze materials, this pivot set is built to last and is backed by a limited two-year warranty. With its matte silver finish and commercial-grade construction, the Rixson L117 X 1-3/4 Door LH 626 3/4 Offset Pivot Set is an excellent choice for any professional looking for reliable door hardware solutions.
3/4 Offset Pivot Set

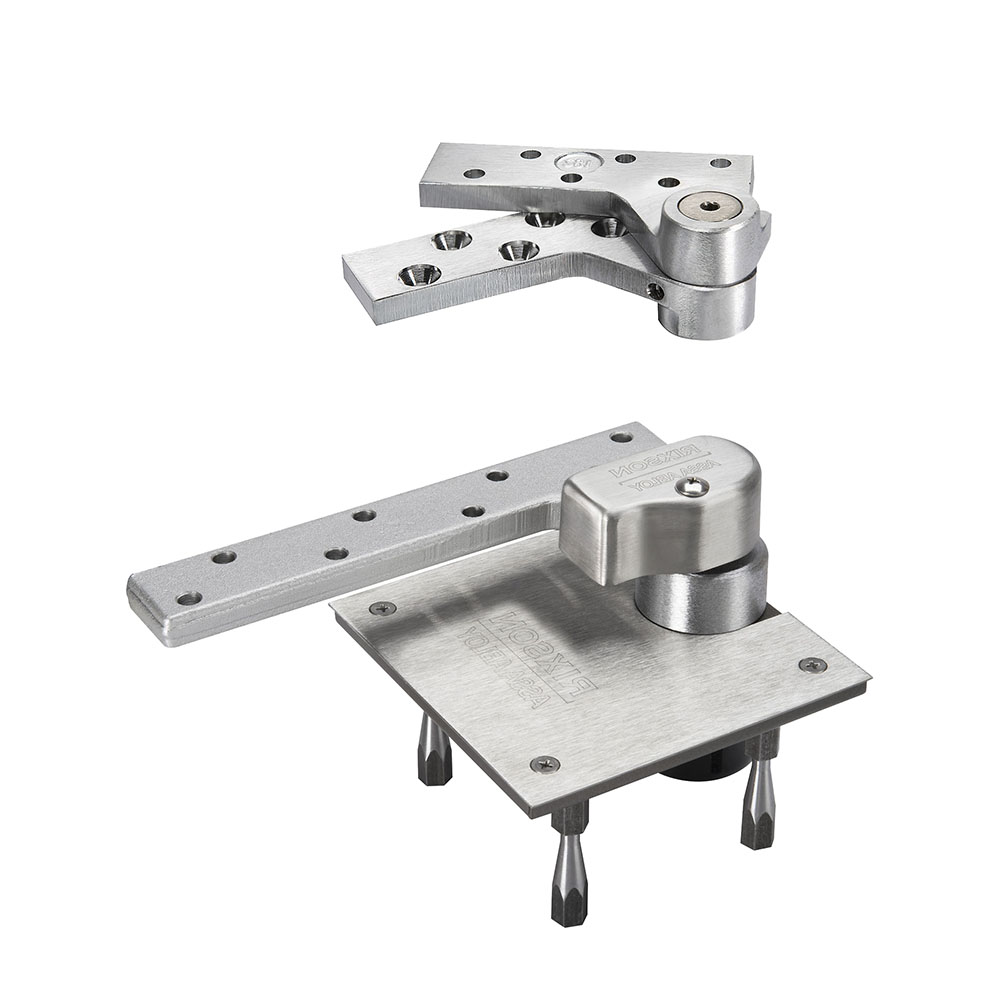

3/4" Offset Hung Pivot, 1-3/4" Door, Includes L180 Top Pivot, Left-Handed, Satin Chromium Plated
Lead lined heavy-duty offset pivot set. Includes L180 top pivot. Max door weight 1750lbs. Max door width 4 Ft.0" Handed. Bottom pivot mortised into floor.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
Upc: 49306777513
