Rixson L147 X 1-3/4 Door RH 626 3/4 Offset Pivot Set offers an ideal solution for those needing a robust and reliable door pivot system. This lead-lined, heavy-duty offset pivot set is designed for 1-3/4" doors and can support a maximum door weight of 800 lbs with a width of up to 4 feet. The set includes the L180 top pivot, ensuring a smooth operation and enhanced durability. Engineered for better weight distribution, this offset pivot hardware not only facilitates the hanging of taller doors but also maintains their alignment with ease. The bottom pivot mounts directly to the floor, while strategically placed screw holes in the top pivot and bottom arm accommodate lead lining, which enhances structural integrity. For commercial installations, this pivot set is a perfect fit, boasting a satin chromium plated finish that complements a variety of environments. Additionally, it comes with a 2-year limited warranty, providing peace of mind on your investment. Whether you're working on a new build or a renovation, the Rixson L147 is an indispensable choice for professionals seeking reliability and performance in door hardware.
3/4 Offset Pivot Set

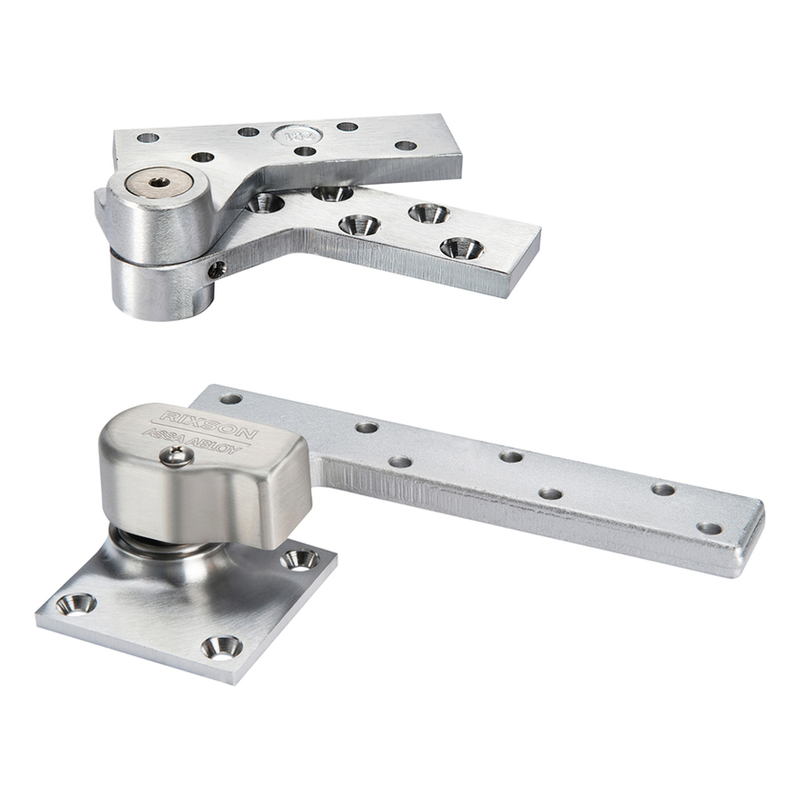

3/4" Offset Hung Pivot, 1-3/4" Door, Includes L180 Top Pivot, Right-Handed, Satin Chromium Plated
Lead lined heavy duty offset pivot set. Includes L180 top pivot. Handed. Max door weight 800 lbs. Max door width 4 Ft.0" Bottom pivot mounts directly to floor. Screw holes in top pivot and bottom arm spaced to straddle lead lining in the middle of the door.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Hinge Type: Pivot, Offset Set
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
Upc: 49306777483
