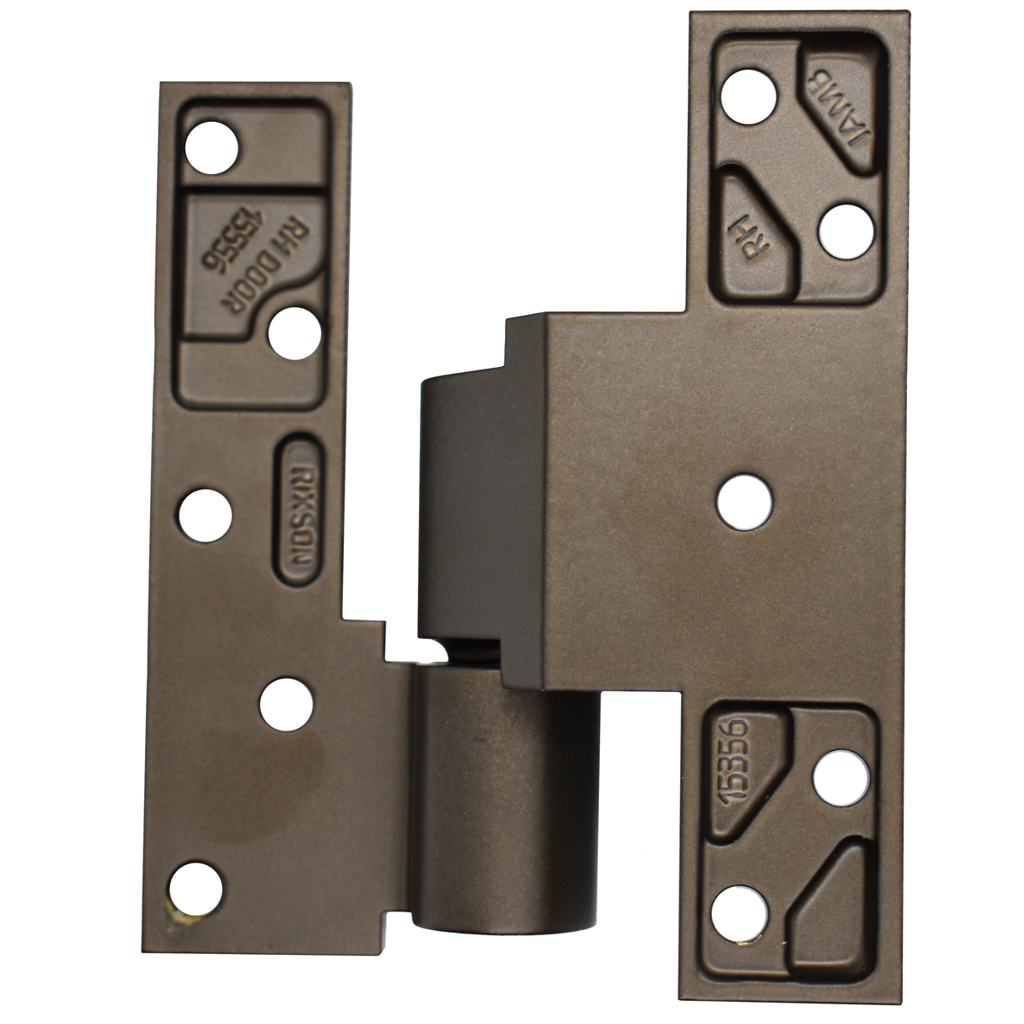

Rixson M19 613E RH 3/4" Offset Full Mortise Pivot, Right Hand, Standard Duty, Dark Bronze

Rixson M19 613E RH Intermediate Pivot is an essential component for achieving smooth and reliable door functionality in a variety of applications. Designed as a standard-duty, full-mortise pivot, this model is ideal for full surface, flush door, and frame installations. The 3/4-inch offset ensures compatibility with a range of door sizes and types, while its non-ferrous base metal construction guarantees durability and resistance to corrosion. This right-handed pivot not only aids in maintaining door alignment but also facilitates the installation of floor closers and bottom pivots, making it a practical choice for building professionals. It is suitable for doors ranging from 60 inches to 90 inches in height, with additional intermediate pivots recommended for every extra 30 inches. The pivot is equipped with both wood and machine screws for easy installation and features a dark oxidized satin bronze finish that enhances aesthetic appeal. Rixson backs the M19 with a 2-year limited warranty, ensuring confidence in its performance. Whether you're working on commercial or residential projects, the Rixson M19 613E RH Intermediate Pivot provides a reliable solution for enhancing door functionality and longevity.

Intermediate Pivot, 3/4 in Offset, Standard Duty, Full Mortise Pivot, Right Handed, US10BE/613E Dark Oxidized Satin Bronze

The M19 is an intermediate, standard-duty full-mortise pivot designed for full surface, flush door, and frame applications.

Features:

• Full mortise
• Handed
• Not load-bearing
• Maintains door alignment
• Aids in installing floor closers and bottom pivots
• For 20-minute label suffix "–20" to the part number
• Non-ferrous base metal
• 3/4" (19mm) offset
• Available for 1-1/2" (38mm) offset
• Available for fire door assemblies (ferrous material) – specify FM19
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) warrants another intermediate pivot
• Door edges must be beveled in 1/8" in 2"
• Furnished with wood and machine screws

Specifications:

• Hang Type: Offset hung
• Warranty: 2-year limited warranty

Finishes:

• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• 691/US10 - Light bronze painted
• 696/US4 - Satin brass painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
