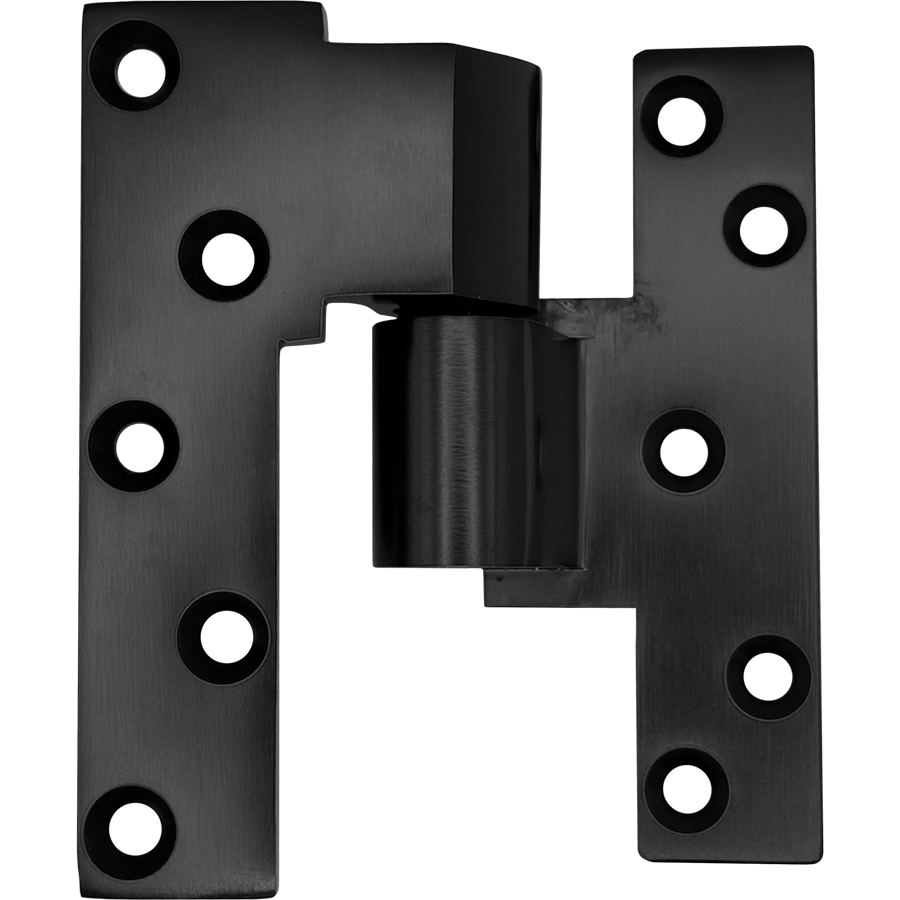

Rixson M19 BSP RH 3/4" Offset Full Mortise Pivot, Right Handed, Standard Duty, Black Suede

Rixson M19 BSP RH Intermediate Pivot is a versatile solution designed for full surface, flush door, and frame applications. This standard-duty, full-mortise pivot ensures optimal door alignment and is specifically crafted to aid in the installation of floor closers and bottom pivots. With a 3/4-inch offset, this pivot is ideal for doors ranging from 60 inches to 90 inches in height, requiring just one intermediate pivot, while each additional 30 inches warrants another. Engineered from non-ferrous base metal, the M19 is not load-bearing but plays a crucial role in maintaining the integrity of your door system. The pivot is handed, meaning it is designed for right-handed applications, and it requires beveled door edges of 1/8 inch in 2 inches. The M19 is available in a range of finishes, including the sleek Black Suede Powder Coat, ensuring that it complements any architectural style. Furnished with both wood and machine screws, this pivot is easy to install and comes with a 2-year limited warranty, providing peace of mind for professionals and homeowners alike. Choose the Rixson M19 BSP RH Intermediate Pivot for a reliable and aesthetically pleasing door hardware solution.

Intermediate Pivot, 3/4 in Offset, Standard Duty, Full Mortise Pivot, Right Handed, Black Suede Powder Coat BSP

The M19 is an intermediate, standard-duty full-mortise pivot designed for full surface, flush door, and frame applications.

Features:

• Full mortise
• Handed
• Not load-bearing
• Maintains door alignment
• Aids in installing floor closers and bottom pivots
• For 20-minute label suffix "–20" to the part number
• Non-ferrous base metal
• 3/4" (19mm) offset
• Available for 1-1/2" (38mm) offset
• Available for fire door assemblies (ferrous material) – specify FM19
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) warrants another intermediate pivot
• Door edges must be beveled in 1/8" in 2"
• Furnished with wood and machine screws

Specifications:

• Hang Type: Offset hung
• Warranty: 2-year limited warranty

Finishes:

• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• 691/US10 - Light bronze painted
• 696/US4 - Satin brass painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
