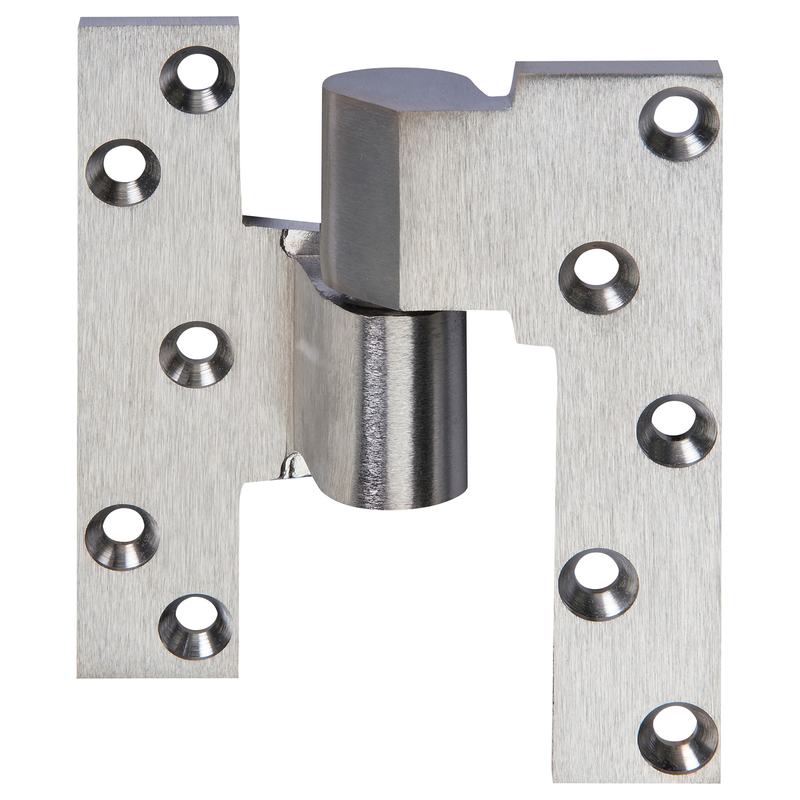

Rixson ML19 X 1-3/4 Door RH 626 3/4 Offset Intermediate Pivot offers a robust solution for heavy-duty door applications. Designed specifically for 1-3/4" thick doors, this right-handed pivot features a 3/4" offset, allowing for optimal door weight distribution and alignment. The full mortise lead-lined construction enhances durability, making it ideal for extra heavy or high-traffic doors. This intermediate pivot is crucial for maintaining door alignment and supports the installation of bottom offset pivots or floor closers, ensuring seamless operation. The screw holes are strategically spaced to straddle the lead lining at the center of the door, facilitating easier installation. With a sleek satin chromium plated finish (626/US26D), the pivot not only performs reliably but also adds a touch of elegance to commercial settings. It is made from high-quality brass or bronze, assuring longevity and performance. Backed by a 2-year limited warranty, the Rixson ML19 is a dependable choice for professionals seeking reliability and functionality. Whether you’re working on a new construction project or upgrading an existing door system, this offset intermediate pivot will meet your rigorous demands while enhancing the overall aesthetic of your space.
3/4 Offset Intermediate Pivot
3/4" Offset Intermediate Pivot, 1-3/4 Door, Right-Handed, Satin Chromium Plated
Full mortise intermediate Lead-Lined pivot. Handed. 3/4" offset. Load-bearing. Maintains door alignment. Screw holes spaced to straddle lead lining in center of door. Also use on extra heavy or high traffic door. For 1-3/4" thick door.
Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.
Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors
Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers
Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring
Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door
Pocket Pivots: Used when the swinging door is located in a wall pocket
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Hinge Type: Pivot, Offset intermediate
Installation: Commercial
Limited Warranty: 2 Years
Pack Qty: 1
Series: Rixson Pivots
Subtype: Pivots
Type: Hinges and Pivots
Unit of Measure: Each
Upc: 49306776875
