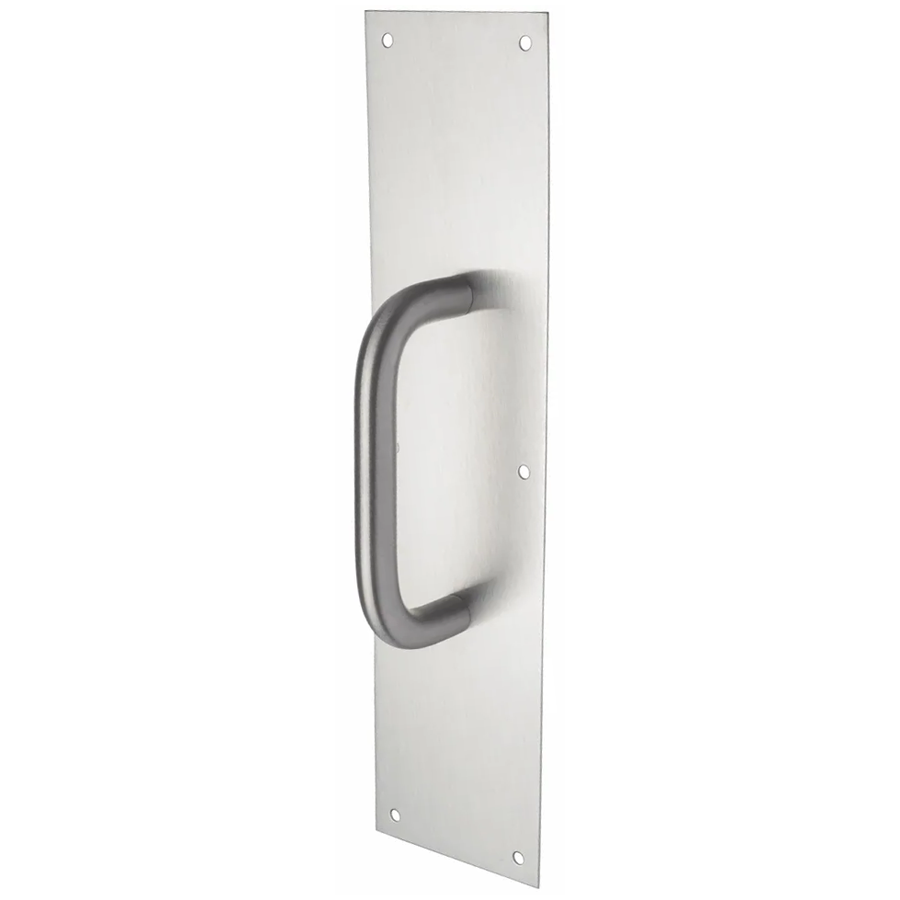

Rockwood Manufacturing Co 105X70B US32D Pull Plate is a robust and elegantly designed door accessory, measuring 3.5 inches by 15 inches. Crafted from durable satin stainless steel, this pull plate not only enhances the aesthetic appeal of your doors but also ensures long-lasting performance. The pull features a comfortable 3/4-inch diameter and is mounted using a 5-1/2-inch center-to-center (CTC) configuration, designed for standard 1-3/4-inch doors. This pull plate weighs just 2.1 lbs, making it easy to handle while still providing a strong presence. Installation is straightforward, utilizing six 5/8-inch oval head sheet metal screws along with a 1/4"-20 x 2-1/4" thru bolt and finish washer. Additionally, for accessibility needs, a barrier-free option is available with a 2-1/2-inch clearance; simply use the BF prefix when ordering and specify if your door thickness differs from the standard. The Rockwood 105X70B is compliant with ANSI A156.6, ensuring it meets high industry standards. With a variety of finish options, including polished brass and satin chrome, this pull plate effortlessly complements any decor style. Upgrade your doors with this reliable and stylish pull plate that combines functionality with elegance.
Pull Plate 3.5in x 15in, Pull Size 3/4in Diameter x 5-1/2in CTC Mounting, 630/US32D Stainless Steel
Specifications:
Finishes:
Features
Ship via: Can Ship UPS
Alternate Codes: 105X70B US32D, 105X70BUS32D, 117048, 1510-4630, 15104630, 422247, 9047-630, 9047630, ROC105X70BUS32D
Category: Door Accessories, Push & Pull Plates
Finish Color: Satin Stainless Steel
Size: 3.5" x 15"
