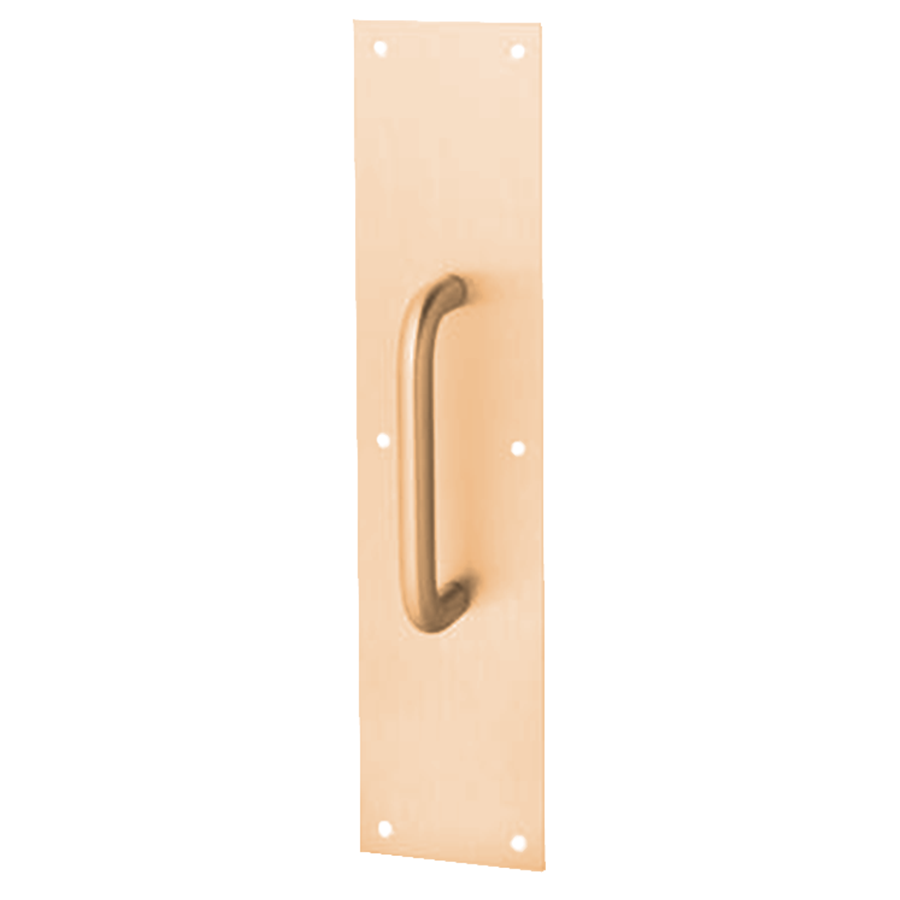

Rockwood 105X70C US10 4"x16" Pull Plate, 3/4" Diameter, 5-1/2" CTC, Satin Bronze

Rockwood Manufacturing Co 105X70C US10 Pull Plate is designed for durability and functionality, measuring 4 inches by 16 inches in size. Crafted from high-quality materials such as aluminum, brass, bronze, or stainless steel, this pull plate offers both aesthetic appeal and robust performance. The pull features a comfortable ¾ inch diameter, ensuring ease of use for all users. Installation is straightforward with the included fasteners, which consist of six 5/8" oval head sheet metal screws and a ¼"-20 x 2-1/4" thru bolt complemented by a finish washer, suitable for standard 1-3/4" doors. Weighing just 2.1 lbs, it strikes a balance between sturdiness and lightweight design. The pull plate adheres to ANSI A156.6 standards (J405), ensuring reliability and safety. For added versatility, a Barrier Free option is available, accommodating a 2-1/2" clearance. It is essential to specify door thickness when ordering this variant. Offered in a sleek satin bronze finish (US10/612), the Rockwood 105X70C seamlessly enhances any door's appearance while providing a practical solution for high-traffic areas. This pull plate is not just a functional accessory; it's a testament to quality craftsmanship and attention to detail.

Pull Plate 4in x 16in, Pull Size 3/4in Diameter x 5-1/2in CTC Mounting, 612/US10 Satin Bronze

Specifications:

• Material: Aluminum, brass, bronze, or stainless steel
• Fasteners: 6 x 5/8" Oval head sheet metal screws; 1/4"-20 x 2-1/4" thru bolt & finish washer (standard 1-3/4" door).
• Options: Barrier Free available in 2-1/2" clearance — use BF prefix when ordering (BF105 x 70B). Advise if door thickness is other than 1-3/4".
• Pull: Ø 3/4"
• Size: 3-1/2" x 15"
• CTC: 5-1/2"
• Plate: 70
• Weight: 2.1 lbs
• ANSI A156.6: J405

Finishes:

• US3/605 - Polished brass, clear coated
• US4/606 - Satin brass, clear coated
• US10/612 - Satin bronze, clear coated
• US10B/613 - Satin oxidized bronze, oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated brass
• US26D/626 - Satin chrome plated brass
• US28/628 - Clear anodized aluminum
• US32/629 - Polished stainless steel
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy stainless steel
• US32DMS - Satin MicroShield coated stainless steel

Features

• Fasteners: 6 x 5/8" Oval head sheet metal screws; 1/4"-20 x 2-1/4" thru bolt & finish washer (standard 1-3/4" door).
• Size: 3-1/2" x 15"
• Options: Barrier Free available in 2-1/2" clearance — use BF prefix when ordering (BF105 x 70B). Advise if door thickness is other than 1-3/4".
• CTC: 5-1/2"
• ANSI A156.6: J405
• Pull: Ø 3/4"
• Weight: 2.1 lbs
• Material: Aluminum, brass, bronze, or stainless steel
• Plate: 70

Resources

• Cut Sheet
